APOLLO VALVES 7150101 Bronze 2 Pcs Standard Port Ball Valve with Spring Return Handle, Standard Configuration 1/4 Inch Size, 2 x FNPT
Item: AA9CZXModel: 7150101Cross Ref: 1CKF1
7 In Stock
Ships within 2 days via
10.00% off
€266.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Finish | Bronze , Chrome Plated |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Style | Inline |
| Bore Type | Reduced Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 0.01 |
| Color | Yellow, Bronze |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/4" |
| Connection Size - Side 2 | 1/4" |
| Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| D1 | 0.54 |
| D2 | 0.54 |
| Dimensions | 5.32" x 1.18" x 2.3" |
| Finish | None |
| For Media | Steam |
| Grease-free | No |
| Handle | Spring Return Lever |
| Handle Color | Yellow |
| Handle Length | 7" |
| Handle Material Grade | Grade 304 , Stainless Steel, PVC |
| Handle Type | Spring Return |
| Housing Construction | 2-Part |
| Included Mounting | Actuator Mounting Pad |
| Max. Medium Temp. | 500°F |
| Max. Operating Pressure | 600 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 600 psi |
| Max. Steam Pressure | 150 psi |
| Media Temperature Range | -20°F to +500°F |
| Medically Clean | No |
| Medium Temp. (continuous) | -20.002°F to +500°F |
| Min. Medium Temp. | -20°F |
| Nominal Valve Size | 1/4" |
| Outer Pipe Dia. Connection 1 | 0.54" |
| Outer Pipe Dia. Connection 2 | 0.54" |
| Overall Length | 2.25" |
| Pipe Schedule Compatibility | Schedule 40 |
| Port Type | Standard |
| Product Datasheet | apollo-valves-7150101.pdf |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Series | 71 Series Ball Valves |
| Shape | Straight |
| Size | 1/4" |
| Spindle Material | Brass |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Temp. Range | 20°F to 500°F |
| Valve Body Color | Bronze |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 71 Series |
| With Filter | No |
| With Thermometer | No |
Shipping Info:
| Ship weight (kg) | 0.66 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 13.51 |
| Ship width (cm) | 3 |
| HS code | 8481805090 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Connection Type | Overall Length | Color | Temp. Range | Pipe Size | Ball Finish | Handle Material Grade | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7150201 | FNPT | 2.25" | Yellow, Bronze | 20°F to 500°F | - | Chrome Plated | Grade 304 | Bronze | €289.96 | |
 |
7150301 | FNPT | 2.25" | Yellow, Bronze | 20°F to 500°F | - | Chrome Plated | Grade 304 | Bronze | €276.34 | |
 |
7150401 | FNPT | 3" | Yellow, Bronze | 20°F to 500°F | - | Chrome Plated | Grade 304 | Bronze | €282.29 | |
 |
7150501 | FNPT | 3.37" | Yellow, Bronze | 20°F to 500°F | - | Chrome Plated | Grade 304 | Bronze | €330.27 | |
 |
7150601 | FNPT | 4" | Yellow, Bronze | 20°F to 500°F | - | Chrome Plated | Grade 304 | Bronze | €477.34 | |
 |
7150701 | FNPT | 4.37" | Yellow, Bronze | 20°F to 500°F | - | Chrome Plated | Grade 304 | Bronze | €542.88 | |
 |

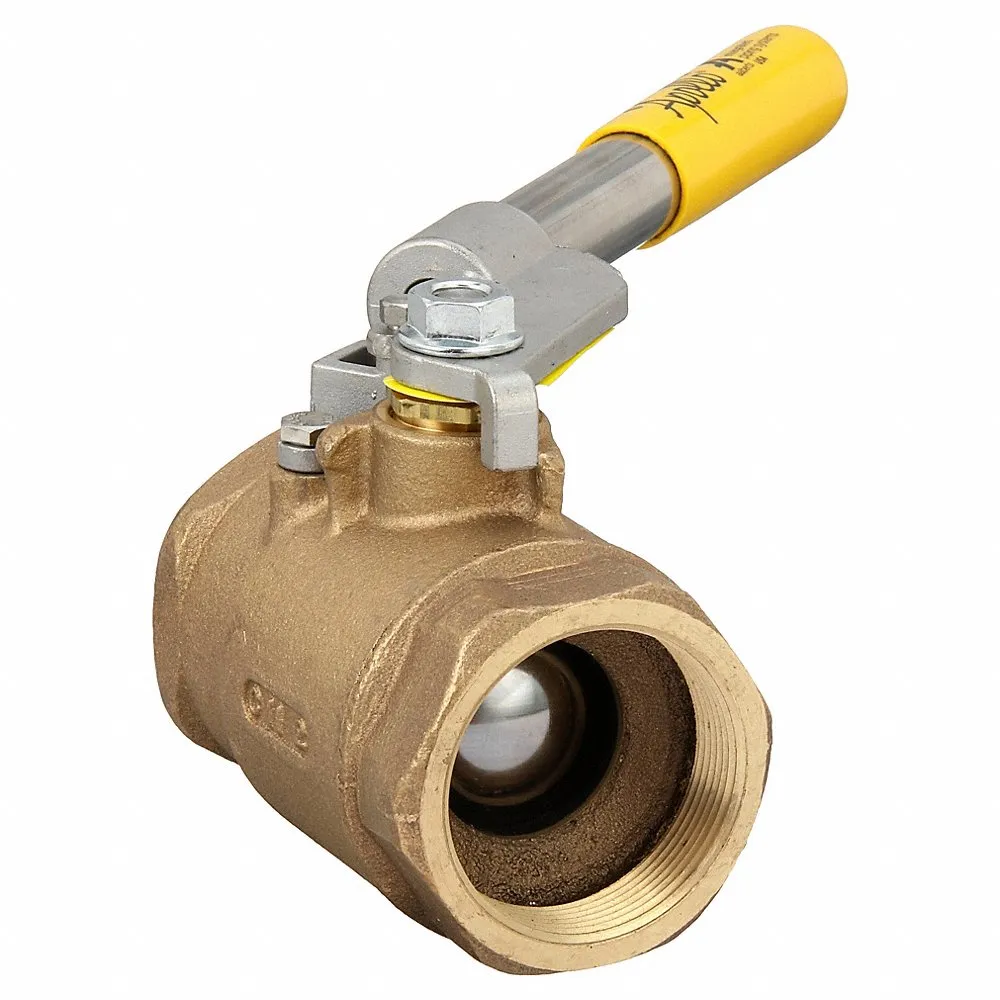

7150801 | FNPT | 4.68" | Yellow, Bronze | 20°F to 500°F | - | Chrome Plated | Grade 304 | Bronze | €639.73 |
