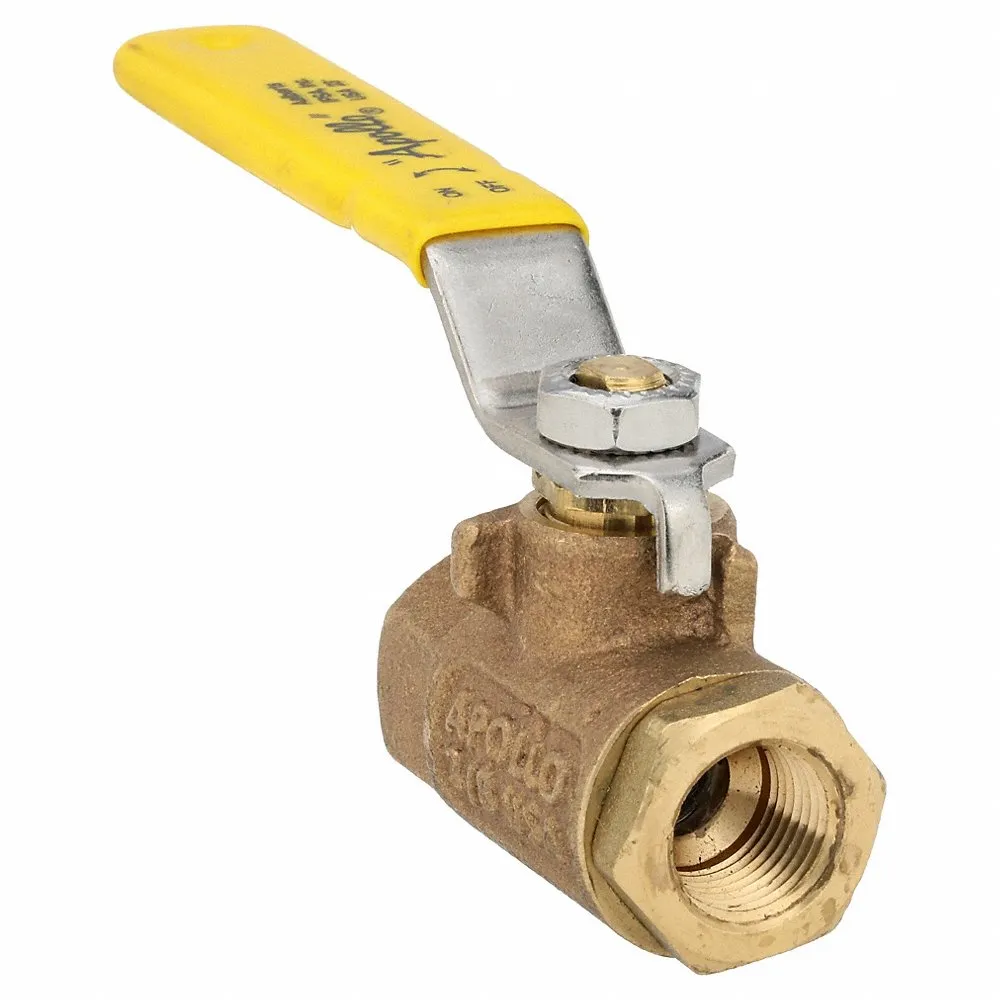

APOLLO VALVES 7010210 Bronze Ball Valve Inline Fnpt 3/8 In
Item: AA9MYMModel: 7010210Cross Ref: 1DZJ6
7 In Stock
Ships within 2 days via
5.00% off
€46.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Ball Finish | Bronze , Chrome Plated |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Style | Inline |
| Bore Type | Reduced Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume(cv) | 0.01 |
| Color | Yellow, Bronze |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 3/8" |
| Connection Size-side 2 | 3/8" |
| Connection Type | FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| Continuous Medium Temp. | -20.002°F to +500°F |
| D1 | 0.68 , 1.06 |
| D2 | 0.68 |
| Dimensions | 7.45" x 2.76" x 4.43" |
| E | 0.68 |
| Finish | None |
| For Media | Steam |
| Grease-free | No |
| Handgrip Length | 0.55" |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Length | 3.85" |
| Handle Material | Stainless Steel |
| Handle Type | Lever |
| Handle/hand Wheel Height | 0.65" |
| Housing Construction | 2-Part |
| Length Of Connection 1 | 1.01" |
| Length Of Connection 2 | 1.01" |
| M1 | 0.55 |
| M2 | 3.85 |
| Max. Medium Temp. | 500°F |
| Max. Operating Pressure | 600 psi |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Steam Pressure | 150 psi |
| Media Temp. | -20°F to +500°F |
| Medically Clean | No |
| Min. Medium Temp. | -20°F |
| Nominal Valve Size | 3/8" |
| Outside Pipe Dia. Connection 1 | 0.68" |
| Outside Pipe Dia. Connection 2 | 0.68" |
| Overall Length | 2.06" |
| Product Datasheet | apollo-valves-7010310.pdf |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Series | 70 Series Ball Valves |
| Shape | Straight |
| Size | 3/8" |
| Spindle Material | Brass |
| Stem Grade | Grade B16 |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Temp. | 0°F to 450°F |
| U | 0.75 |
| V | 1.03 |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Bronze |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 70 Series |
| With Filter | No |
| With Thermometer | No |
| Working Length Connection 1 | 0.58" |
| Working Length Connection 2 | 0.61" |
| Y | 0.65 |
| Z1 | 0.58 |
| Z2 | 0.61 |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 11.25 |
| Ship length (cm) | 18.92 |
| Ship width (cm) | 7.01 |
| HS code | 8481801085 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Size | Color | Outside Pipe Dia. Connection 1 | Outside Pipe Dia. Connection 2 | Dimensions | Ball Material | Max. Pressure | Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7010310 | 1/2" | Yellow, Bronze | 0.84" | 0.84" | 7.45" x 2.76" x 4.43" | Brass | - | RPTFE | €49.21 | |
 |
7010410 | 3/4" | Yellow, Bronze | 1.05" | 1.05" | 7.45" x 2.76" x 4.43" | - | - | PTFE | €80.66 | |
|
7010510 | 1" | Yellow, Bronze | 1.32" | 1.32" | 7.45" x 2.76" x 4.43" | - | - | PTFE | €92.67 | |
 |
7010610 | 1 1/4" | Yellow, Bronze | 1.66" | 1.66" | 7.45" x 2.76" x 4.43" | - | - | PTFE | €166.58 | |
 |
7010810 | 2" | Yellow, Bronze | 2.38" | 2.38" | 3.77" x 1.38" x 2.22" | - | - | PTFE | €254.36 | |
 |
7010910A | 2 1/2" | Yellow, Bronze | 2.88" | 2.88" | 3.77" x 1.38" x 2.22" | - | - | PTFE | €1,049.65 | |
 |
7010010 | 3" | Yellow, Bronze | 3.5" | 3.5" | 11 1/4" x 4 3/4" x 6 1/2" | - | - | PTFE | €1,118.70 |
