APOLLO VALVES 701012741 Bronze Ball Valve Inline Fnpt 1/4 In | AE4NDV 5LXU0

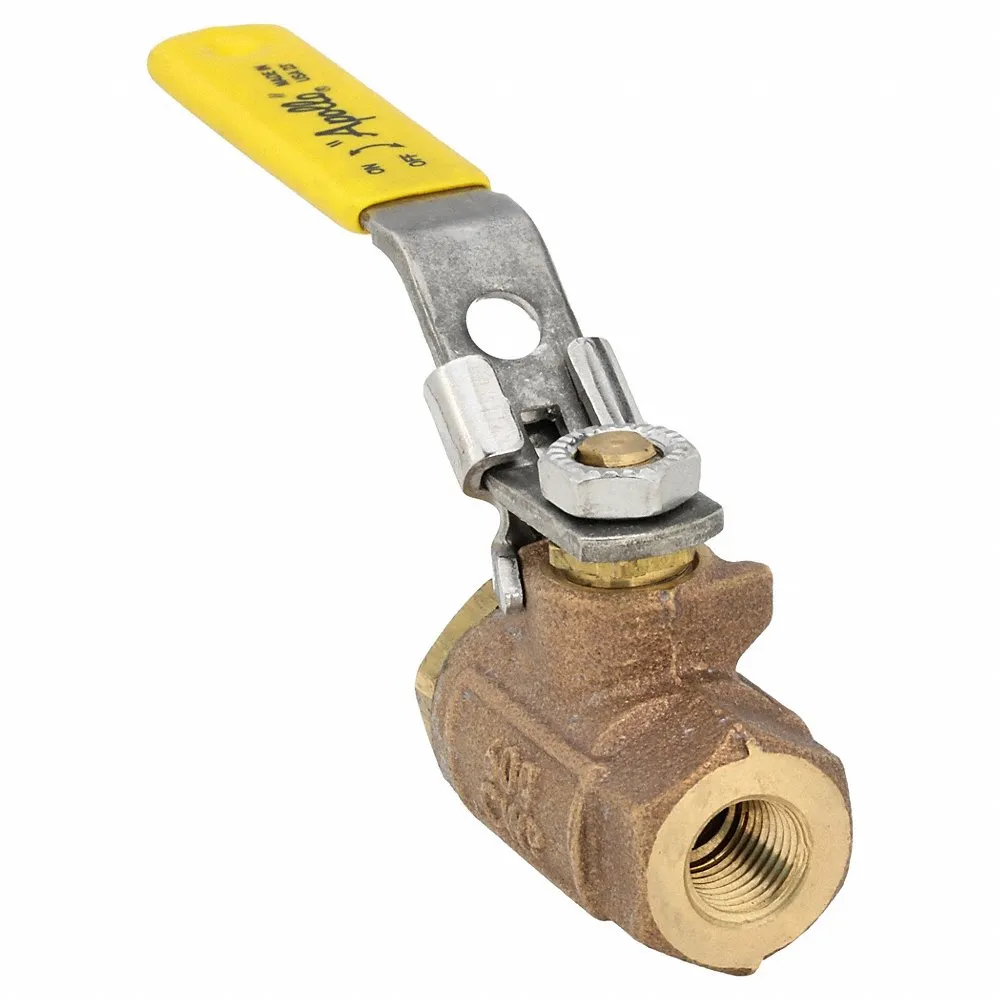

APOLLO VALVES 701012741 Bronze 2 Pcs Ball Valve with SS Latch-Lock Lever and Nut, Automatic Drain 1/4 Inch Size, 2 x FNPT

Item: AE4NDVModel: 701012741Cross Ref: 5LXU0
7 In Stock
Size

Ships within 2 days via

€61.17
10.00% off
€55.05 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Ball Valve
3-a Compliance Not Rated
Ball Finish Bronze , Chrome Plated
Ball Port Style Standard Port
Ball Valve Product Group Manual
Body Material Bronze
Body Style Inline
Bore Type Reduced Bore
Cleaned And Bagged Not Cleaned And Bagged
Coefficient Of Volume (cv) 0.01
Color Yellow, Bronze
Connection Gender - Side 1 Female
Connection Gender - Side 2 Female
Connection Size - Side 1 1/4"
Connection Size - Side 2 1/4"
Connection Type FNPT
Connection Type - Side 1 NPT
Connection Type - Side 2 NPT
D-1 1.05
D1 0.54
D2 0.54
Dimensions 7.45" x 2.76" x 4.43"
E 0.68
Finish None
For Media Steam
Grease-free No
Handgrip Length 0.38"
Handle Locking Lever
Handle Color Yellow
Handle Finish Zinc Plated
Handle Length 4.15"
Handle Type Lever Locking
Handle/hand Wheel Height 0.89"
Housing Construction 2-Part
Length Of Connection 1 1.01"
Length Of Connection 2 1.01"
M1 0.38
M2 4.15
Manufacturer Warranty 5 yrs.
Max. Medium Temp. 500°F
Max. Operating Pressure 600 psi
Max. Pressure (combustible Gas) Not Rated
Max. Pressure (cwp) 600 psi
Max. Steam Pressure 150 psi
Media Temperature Range -20°F to +500°F
Medically Clean No
Medium Temp. (continuous) -20.002°F to +500°F
Min. Medium Temp. -20°F
Nominal Valve Size 1/4"
Outer Pipe Dia. Connection 1 0.54"
Outer Pipe Dia. Connection 2 0.54"
Overall Length 2.06"
Port Type Standard
Product Datasheet apollo-valves-7010310.pdf
Seal Material PTFE
Series 70 Series Ball Valves
Shape Straight
Size 1/4"
Spindle Material Brass
Stem Grade Grade 316 , Stainless Steel
Surface Protection None
Temp. Range -20°F to +450°F
U 0.75
V 1.03
Vacuum Service Rating 29 in. hg
Valve Body Color Bronze
Valve Body Style Straight
Valve Construction Two-Piece
Valve Series 70 Series
With Filter No
With Thermometer No
Working Length Connection 1 0.61"
Working Length Connection 2 0.61"
Y 0.89
Z1 0.61
Z2 0.61

Shipping Info:

Ship weight (kg) 0.27
Ship height (cm)11.25
Ship length (cm)18.92
Ship width (cm)7.01
HS code8481805090
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelConnection TypeBall MaterialMax. PressureSeal MaterialSeat MaterialMax. Steam PressureHandle MaterialOverall LengthPrice
APOLLO VALVES 70-103-10 Ball Valve, 1/2 Inch Pipe, 600 PSI, -20 to 450 Deg. F, Lever Handle, FNPT | AA9MYC 1DZH6 7010310FNPTBrass-PTFERPTFE150 psiStainless Steel4.99"€49.21
APOLLO VALVES 70-104-10 Bronze Ball Valve Inline Fnpt 3/4 In | AA9MYD 1DZH7 7010410FNPT--PTFEPTFE150 psiStainless Steel3"€80.66
APOLLO VALVES 70-105-10 Bronze Ball Valve Inline Fnpt 1 In | AA9MYE 1DZH8 7010510FNPT--PTFEPTFE150 psiStainless Steel3.37"€92.67
APOLLO VALVES 70-106-10 Bronze Ball Valve Inline Fnpt 1-1/4 In | AA9MYF 1DZH9 7010610FNPT--PTFEPTFE150 psiStainless Steel4"€166.58
APOLLO VALVES 70-108-10 Bronze Ball Valve Inline Fnpt 2 In | AA9MYH 1DZJ2 7010810FNPT--PTFEPTFE150 psiStainless Steel4.68"€254.36
APOLLO VALVES 70-109-10A Bronze Ball Valve Inline Fnpt 2-1/2 In | AA9MYJ 1DZJ3 7010910AFNPT--PTFEPTFE150 psiStainless Steel4.16"€1,049.65
APOLLO VALVES 70-100-10 Bronze Ball Valve Inline Fnpt 3 In | AA9MYK 1DZJ4 7010010FNPT--PTFEPTFE150 psiStainless Steel6.75"€1,118.70
