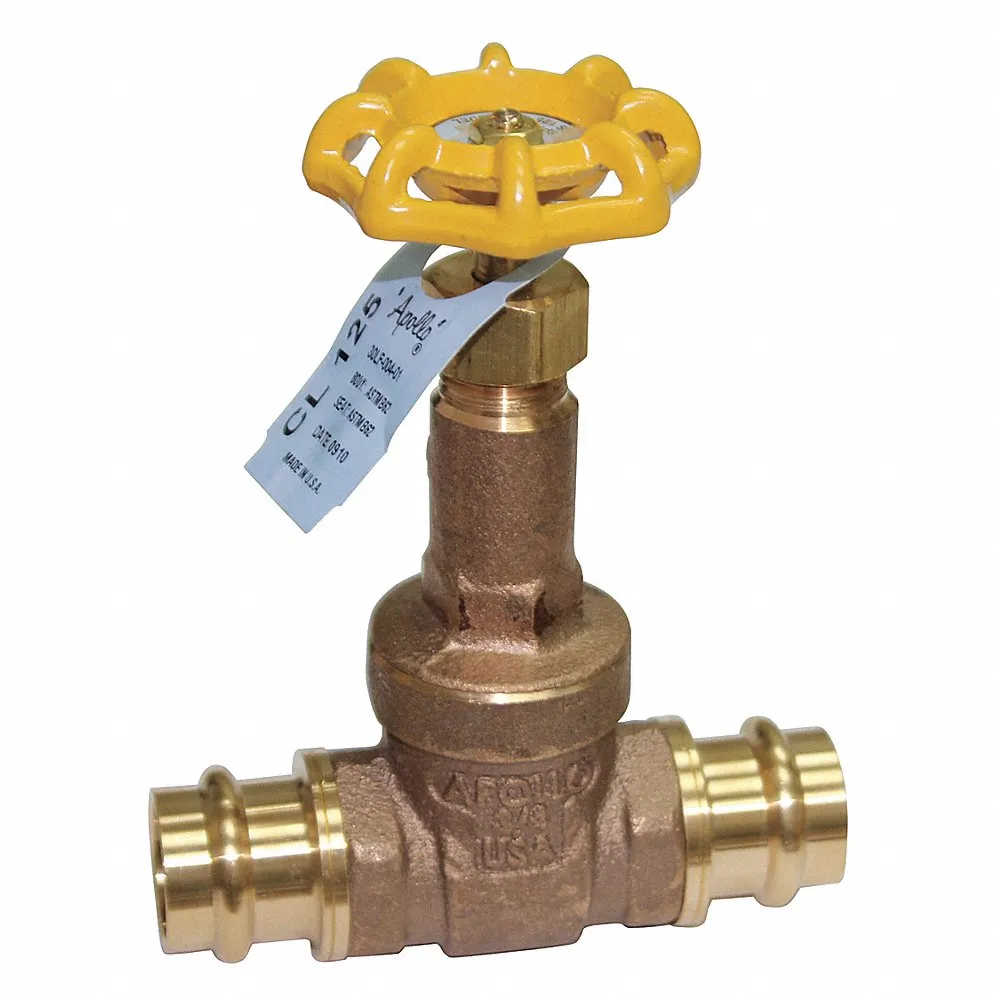

APOLLO VALVES 30LF03501PR Gate Valve, 1 in Pipe Size, 200 psi Max. Water Pressure - CWP, 250 Deg. F Valve Max. Fluid Temp.
Item: AC6WPDModel: 30LF03501PRCross Ref: 36N638
7 In Stock
Ships within 2 days via
10.00% off
€241.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gate Valve |
| Body Material | Bronze |
| Bonnet Material | Bronze |
| Bonnet Style | Screw In |
| Coefficient Of Volume (cv) | 72.3 |
| Color | Yellow |
| Connection Gender - Side 2 | Female |
| Connection Type | Press x Press |
| Connection Type - Side 1 | Press |
| D1 | 1.14 |
| D2 | 1.14 |
| For Media | Water |
| Handle Material | Malleable Iron |
| Handle Type | Wheel |
| Handle/hand Wheel Height | 0.79" |
| Inlet To Outlet Length | 4.703" |
| Lead Free | Yes |
| Length Of Connection 1 | 2.35" |
| Length Of Connection 2 | 2.35" |
| Length Of Handle/dia. Of Hand Wheel | 2.8" |
| M | 2.8 |
| Manufacturer Warranty | 5 yrs. |
| Material | Lead Free Bronze |
| Max. Medium Temp. | 250°F |
| Max. Pressure (cwp) | 200 psi |
| Max. Pressure (steam) | 200 psi |
| Max. Water Pressure | 200 psi |
| Media Temp. Range | 0°F to 250°F |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Operating Temperature - Maximum | 250°F |
| Operating Temperature - Minimum | 0°F |
| Outer Pipe Dia. All Connections | 1.14" |
| Overall Length | 9.5" |
| Pipe Size | 1" |
| Product Datasheet | apollo-valves-30lf03301pr.pdf |
| Seal Material | EPDM |
| Seat Material | Bronze |
| Series | 30 Series Gate Valves |
| Stem Material | Bronze |
| Stem Type | Non Rising |
| Top Of Handle To Inlet Center | 6.703" |
| U | 2.8 |
| V | 3.76 |
| Valve Series | 30 Series |
| Wedge Material | Bronze |
| Wedge Style | Solid |
| Working Length Connection 1 | 1.48" |
| Working Length Connection 2 | 1.48" |
| Y | 0.79 |
| Z1 | 1.48 |
| Z2 | 1.48 |
Shipping Info:
| Ship weight (kg) | 1.05 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 21.34 |
| Ship width (cm) | 17.27 |
| HS code | 8481801060 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Top Of Handle To Inlet Center | Inlet To Outlet Length | Stem Type | Size | Coefficient Of Volume | Body Material | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 30LF00301PR | - | 4.844" | 3.906" | Rising | 1/2" | - | Bronze | EPDM | €206.32 | |
| 30LF00401PR | - | 5.703" | 4.297" | Rising | 3/4" | 24 | Bronze | EPDM | €233.84 | |
| 30LF00701PR | - | 9.078" | 6 1/8" | Rising | 1 1/2" | - | Bronze | EPDM | €512.52 | |
| 30LF00801PR | - | 11.281" | 6.703" | Rising | 2" | - | Bronze | EPDM | €696.28 | |
| 30LF03301PR | 1/2" | 4.844" | 3.906" | Non Rising | - | - | Bronze | EPDM | €180.78 | |
| 30LF03401PR | 3/4" | 5.703" | 4.297" | Non Rising | - | 24 | Bronze | EPDM | €217.20 | |
| 30LF03601PR | 1 1/4" | 8.094" | 5 1/8" | Non Rising | - | 80 | Bronze | EPDM | €366.63 |
