ANVIL FIG 265 Adjustable Pipe Saddle Support With U-Bolt, Cast Iron
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pipe Saddle Support |
| Adjustment | 4 1/2" |
| Adjustment | 4-1/2" |
| Adjustment Range | 4 1/2" |
| Material | Cast Iron |
| Plating | Plain/Zinc Plated |
| Product Datasheet | anvil-fig-265.pdf |
| Size | 4" to 36" |
| Standard | ANSI.jpg |
Shipping Info:
| Country of Origin | US |
Product Details:

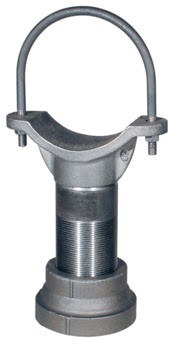

Anvil 265 adjustable pipe saddle support with U-bolt provides stanchion type support for stationary pipes requiring vertical adjustment. A pipe is cradled in the device to transfer its load weight to the supporting base.
Features:
- Features cast iron saddle with zinc-plated finish, locknut nipple and special cast iron reducer.
- Permissible vertical adjustment of approximately 4-1/2 inches.
- Supports pipe sizes ranging from 4 to 36 inches.
Standards and Approvals:
- A-A-1192A (Type 38)
- WW-H-171-E (Type 39)
- ANSI / MSS SP-69
- MSS SP-58 (Type 38)
Frequently Asked Questions:
Q. What is a saddle connection?
A. A saddle is a way of connecting to a pipe by cutting an elliptical or circular hole in it.
Q. Where do you install a pipe support saddle?
A. It is ideal to install them near concentrated weights, such as valves and flanges.
Documentation:
Product Variants
| Model | Pipe Size | Material | Load Capacity | Finish | Size | Type | Max. Load | For Use On | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0500362009 | 2 1/2" | Cast Iron | 1800 lbs. | Galvanized | - | Adjustable | - | Pipe | €509.64 | |
| 0500362017 | 3" | Cast Iron | 1800 lbs. | Galvanized | - | Adjustable | - | Pipe | €513.44 | |
| 0500362033 | 4" | Cast Iron | 3800 lbs. | Galvanized | - | Adjustable | 3800 lbs. | Pipe | €631.13 | |
| 0500362041 | 5" | Cast Iron | 3800 lbs. | Galvanized | - | Adjustable | 3800 lbs. | Pipe | €664.54 | |
| 0500362058 | 6" | Cast Iron | 3800 lbs. | Galvanized | - | Adjustable | 3800 lbs. | Pipe | €645.02 | |
| 0500362066 | 8" | Cast Iron | 3800 lbs. | Galvanized | - | Adjustable | 3800 lbs. | Pipe | €669.29 | |

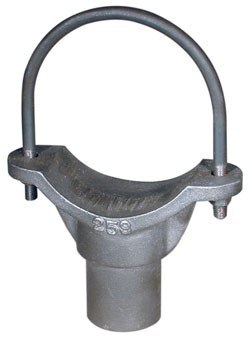

| 0500172549 | - | - | - | - | - | - | - | - | €198.18 |
