AMETEK LAMB 116859-00 AC Vacuum Motor, Tangential, 1200 W, 5.7 Frame Size, 3 Stage, 240 V
Item: AD8TKFModel: 116859-00Cross Ref: 4M944
7 In Stock
Ships within 2 days via
10.00% off
€310.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Vacuum Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Average Life | 500 hrs. |
| Bearing Type | Ball |
| Blower Stages | 3 |
| Body Dia. | 5.7" |
| Cfm @ 2-in. Orifice | 94 CFM |
| Discharge | Tangential |
| Duty Cycle | Intermittent |
| Flow Class | Standard Flow |
| Frame | Non-Standard |
| Frame Size | 5.7" |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.3A |
| Inlet Tube Dia. | 1 7/8" |
| Insulation Class | Class A |
| Max. Air Watts | 348 W |
| Max. Ambient Temp. | 40°C |
| Max. Amps | 5.4A |
| Motor Application | Universal Ac, Dc Motor |
| Motor Bearings | Ball |
| Motor Design | Universal AC/DC |
| Motor Enclosure Design | Open |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Lug |
| Motor Type | Traditional Lamb |
| Motor/blower Type | Bypass |
| Mounting Bracket Material | Aluminum, Plastic |
| Mounting Brackets | Thermoset |
| Nameplate Rpm | 23930 RPM |
| No. Of Speeds | 1 |
| Overall Height | 5 25/32" |
| Overall Length | 7 13/16" |
| Phase | 1 |
| Power Level | 1200 W |
| Replacement Brush Kit | 833508-50 |
| Replacement Brushes | 152F63 |
| Speed Control | Not Applicable |
| Standards | Ul (E47185) |
| Thermal Protection | Not Applicable |
| Vacuum (h2o Sealed) | 115.5 |
| Vacuum Rating | 116.7 |
| Voltage | 240V AC |
Shipping Info:
| Ship weight (kg) | 2.93 |
| Ship height (cm) | 14.68 |
| Ship length (cm) | 19.84 |
| Ship width (cm) | 19.24 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Motor/Blower Type (Bypass)
Product Variants
| Product | Model | Cfm @ 2-in. Orifice | Max. Air Watts | Full Load Amps | Replacement Brushes | Nameplate Rpm | Overall Length | Voltage | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

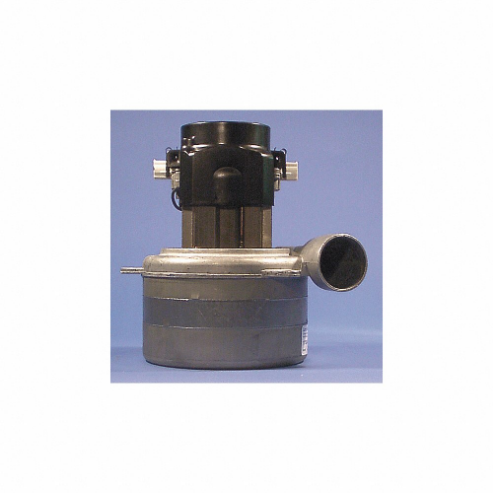

117123-00 | 95.1 CFM | 448 W | 6.8A | 2UV80 | 25790 RPM | 8 1/16" | 240V AC | Open | €335.21 |
