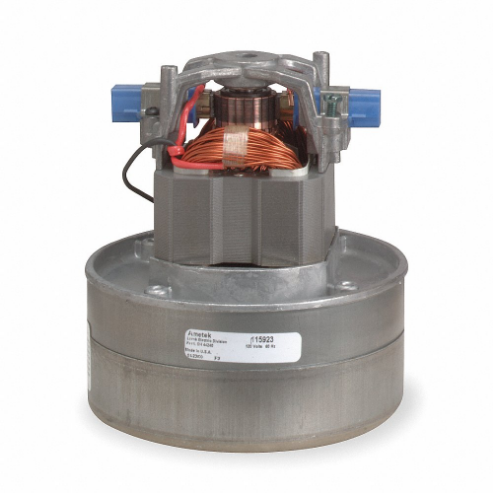

AMETEK LAMB 115923 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 1 Speed, 120VAC | AD8TJC 4M903

AMETEK LAMB 115923 AC Vacuum Motor, Thru-Flow, 1150 W, 5.7 Frame Size, 2 Stage, 120 V

Item: AD8TJCModel: 115923Cross Ref: 4M903
7 In Stock

Ships within 2 days via

€216.80
10.00% off
€195.12 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Vacuum Motor
Ac/dc AC
Ambient Temp. 40°C
Average Life 500 hrs.
Bearing Type Ball
Blower Stages 2
Body Dia. 5.7"
Cfm @ 2-in. Orifice 122 CFM
Discharge Thru Flow
Duty Cycle Intermittent
Efficiency Group High
Flow Class Standard Flow
Frame Non-Standard
Frame Size 5.7"
Frequency 50/60 Hz
Frequency 60 Hz
Full Load Amps 10.6A
Hz 60 Hz
Insulation Class Class A
Max. Air Watts 447 W
Max. Ambient Temp. 40°C
Max. Amps 10.7A
Motor Application Universal Ac, Dc Motor
Motor Bearings Ball
Motor Design Universal AC/DC
Motor Enclosure Design Open
Motor Mounting Position All Angle
Motor Mounting Type Lug
Motor Type Traditional Lamb
Motor/blower Type Thru Flow
Mounting Bracket Material Aluminum
Mounting Brackets Metal
Nameplate Rpm 28400 RPM
No. Of Speeds 1
Overall Height 5 25/32"
Overall Length 6 1/4"
Phase 1
Power Level 1150 W
Replacement Brush Kit 833392-67
Replacement Brushes 41RD41
Speed Control Not Applicable
Standards Csa (Lr31393), Ul (E47185)
Thermal Protection Not Applicable
Vacuum (h2o Sealed) 100.4
Vacuum Rating 100.4
Voltage 120V AC

Shipping Info:

Ship weight (kg) 2.48
Ship height (cm)14.68
Ship length (cm)15.88
Ship width (cm)14.48
HS code8414596095
Country of OriginMX

Product Details:

    • Motor/Blower Type (Thru-Flow)

Product Variants

ProductModelVoltageMotor Enclosure DesignCfm @ 2-in. OrificeThermal ProtectionMotor TypeMax. Air WattsNo. Of SpeedsOverall HeightPrice
AMETEK LAMB 116146-00 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 1 Speed, 220VAC | AC2QMD 2M186 116146-00120V ACOpen Dripproof120.7 CFMNot ApplicableTraditional Lamb373 W15 25/32"€229.92
AMETEK LAMB 116311-01 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 1 Speed, 120VAC | AC2QMK 2M192 116311-01120V ACOpen Dripproof95 CFMNot ApplicableTraditional Lamb245 W15 25/32"€181.10
AMETEK LAMB 115744 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 1 Speed, 120VAC | AC2QMM 2M198 115744120V ACOpen Dripproof98 CFMAutomaticTraditional Lamb257 W15 3/4"€239.41
AMETEK LAMB 116227-00 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 2 Speed, 120VAC | AC2QMN 2M199 116227-00120V ACOpen Dripproof107 CFMNot ApplicableTraditional Lamb316 W25 15/16"€254.96
AMETEK LAMB 115750 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 1 Speed, 120VAC | AC2QMT 2M262 115750120V ACOpen Dripproof98.7 CFMNot ApplicableTraditional Lamb257 W15 25/32"€226.22
AMETEK LAMB 115737 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 1 Speed, 120VAC | AC2QMU 2M263 115737120V ACOpen Dripproof99 CFMNot ApplicableTraditional Lamb260 W15 3/4"€206.98
AMETEK LAMB 116457-00 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 1 Speed, 120VAC | AC2QNC 2M420 116457-00120V ACOpen Dripproof94 CFMAutomaticTraditional Lamb241 W15 25/32"€204.33
