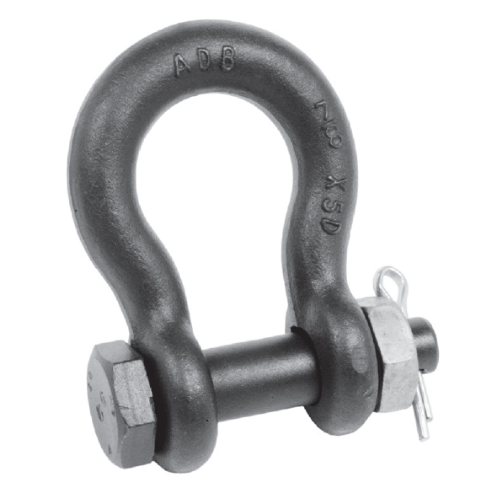

ADB HOIST RINGS MFG. 36561 Anchor Shackle, 19000 lbs. Load Capacity, 5.16 Inch Width
Get it by Tuesday, Dec 23
€99.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Anchor Shackle |
| Grade | Grade A |
| Inside Length | 4 1/4" |
| Inside Width | 2.91" |
| Load Capacity | 19000 lbs. |
| Nominal Size | 1 1/8" |
| Opening Width | 1.81" |
| Overall Height | 7.47" |
| Pin Dia. | 1 1/4" |
| System Of Measurement | Imperial |
| Thickness | 1.13" |
| Width | 5 4/25" |
Shipping Info:
| Ship weight (kg) | 3.72 |
| Ship height (cm) | 21.51 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 6.4 |
| Country of Origin | US |
Features:
- Design Factor:?Minimum ultimate load is 5 times the working load limit. Bolt type anchor shackles supplied with thin head bolt and nut with cotter pin.
- Specifications:?Meets Federal Specification RR ??C, Type IVA, Grade A, Class 3
- All dimensions approximate ??variations do not effect use or design factor.
Product Variants
| Model | Load Capacity | Inside Length | Inside Width | Pin Dia. | Thickness | Nominal Size | Overall Height | Opening Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 36511 | 2000 lbs. | 1 11/25" | 1.03" | 11/25" | - | 3/8" | 2.49" | 0.66" | €18.78 | |
| 36521 | 3000 lbs. | 1.69" | 1 4/25" | 1/2" | 11/25" | 0.438" | 2.91" | 3/4" | €22.53 | |
| 36531 | 4000 lbs. | 1 22/25" | 1.31" | 0.63" | 1/2" | 1/2" | 3 7/25" | 0.81" | €25.68 | |
| 36541 | 6500 lbs. | 2.38" | 1.69" | 3/4" | 0.63" | 5/8" | 4.19" | - | €33.23 | |
| 36551 | 13000 lbs. | 3.31" | 2 7/25" | 1" | 22/25" | 7/8" | 5.83" | 1 11/25" | €78.80 | |
| 36571 | 24000 lbs. | 4.69" | 3 1/4" | 1.38" | 1 1/4" | 1 1/4" | 8 1/4" | 2.03" | €137.20 |
