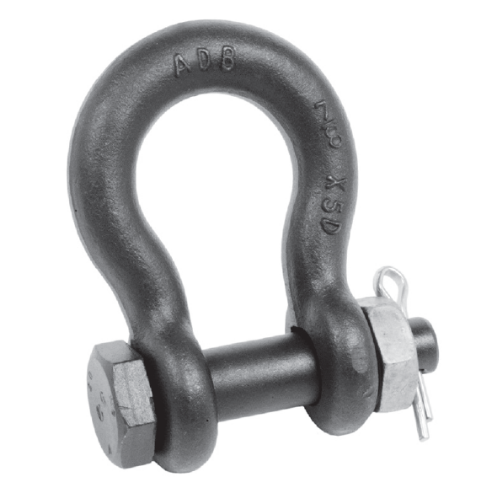

ADB HOIST RINGS MFG. 36551 Anchor Shackle, 13000 lbs. Load Capacity, 4.03 Inch Width
Get it by Tuesday, Aug 25
€81.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Anchor Shackle |
| Grade | Grade A |
| Inside Length | 3.31" |
| Inside Width | 2 7/25" |
| Load Capacity | 13000 lbs. |
| Nominal Size | 7/8" |
| Opening Width | 1 11/25" |
| Overall Height | 5.83" |
| Pin Dia. | 1" |
| System Of Measurement | Imperial |
| Thickness | 22/25" |
| Width | 4.03" |
Shipping Info:
| Ship weight (kg) | 1.78 |
| Ship height (cm) | 17.35 |
| Ship length (cm) | 14.5 |
| Ship width (cm) | 6.4 |
| Country of Origin | US |
Features:
- Material:?Forged High Strength Steel
- Description: Scissor-Lok??Road Plate Lifting System is the ultimate in convenience and safety for placing, moving and storing road plates. ADB plate and tool are the highest capacity available with a 5:1 design factor. Allows quick, one hand attachment, tool free installation and removal and is easy to clean. Eliminates need to pry up plate for attachment and required minimum plate preparation ??just cut one hole and weld in the plate. Provides for obstruction free plate surface for storage
- Design Factor:?Minimum of 5:1, Rated Load: 10,000 lbs
- Finish:?Black Oxide
- Range of Movement:?Pivots 180 degrees
- All dimensions approximate ??variations do not effect use or design factor.
Product Variants
| Model | Load Capacity | Inside Length | Inside Width | Pin Dia. | Thickness | Nominal Size | Overall Height | Opening Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 36511 | 2000 lbs. | 1 11/25" | 1.03" | 11/25" | - | 3/8" | 2.49" | 0.66" | €18.06 | |
| 36521 | 3000 lbs. | 1.69" | 1 4/25" | 1/2" | 11/25" | 0.438" | 2.91" | 3/4" | €21.66 | |
| 36531 | 4000 lbs. | 1 22/25" | 1.31" | 0.63" | 1/2" | 1/2" | 3 7/25" | 0.81" | €24.69 | |
| 36541 | 6500 lbs. | 2.38" | 1.69" | 3/4" | 0.63" | 5/8" | 4.19" | - | €31.95 | |
| 36561 | 19000 lbs. | 4 1/4" | 2.91" | 1 1/4" | 1.13" | 1 1/8" | 7.47" | 1.81" | €95.85 | |
| 36571 | 24000 lbs. | 4.69" | 3 1/4" | 1.38" | 1 1/4" | 1 1/4" | 8 1/4" | 2.03" | €131.90 |
