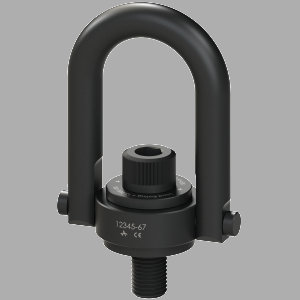

ADB HOIST RINGS MFG. 23052 Hoist Ring, 800 lbs. Load Capacity, 5/16-18 Thread Size, 7 ft. lbs. Torque
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€132.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hoist Ring |
| Bail Inside Length | 1 1/4" |
| Bail Inside Width | 3/4" |
| Bail Thickness | 3/8" |
| Color | Black |
| Finish | Black Oxide |
| Grade | Grade 4140 |
| Hardware Included | Removable Bolt |
| Hoist Ring Type | Pivot, Swivel |
| Load Capacity | 800 lbs. |
| Material | Alloy Steel |
| Maximum Operating Temperature | 400°F |
| Minimum Installation Torque | 7 lbs.-ft. |
| Minimum Operating Temperature | -20°F |
| Mount Type | Screw On |
| Operation | Lifting, Pulling |
| Overall Length | 1 7/8" |
| Overall Width | 2 3/8" |
| Pivot | 180° |
| Pivot Angle | 180° |
| Rotate Angle | 360° |
| Series | SEHR Series |
| Standards | Astm E1444 |
| Swivel Angle | 360° |
| System Of Measurement | Imperial |
| Thread Projection | 0.54" |
| Thread Size | 5/16"-18 |
| Torque | 7 lbs.-ft. |
| Usable Thread Length | 1/2" |
| Working Load Limit | 800 lbs. |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 4.76 |
| Ship width (cm) | 6.03 |
| Country of Origin | US |
Features:
- Material:?High strength alloy steel
- Design Factor:?5:1, Magnetic Particle Inspected Per ASTM E1444, Swivel Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis, Standard tolerance +- .030 inch unless otherwise specified.
- Finish:?Black Oxide finish for corrosion resistance*
- Range of Movement:?Swivel 360?, Pivot 180? Under Load
- Specifications:?Meets Military Specification No. MIL-STD 209, Meets ANSI/ASME B30.26
- 200% Proof Load Tested
- Individually Serial Numbered
- All dimensions approximate ??variations do not effect use or design factor.
- Also available in a wide range of plating ??e.g Cadmium, Titanium-Cadmium, Nickel, etc.
Product Variants
| Model | Load Capacity | Thread Size | Material | Pivot | Swivel Angle | Finish | Price | |
|---|---|---|---|---|---|---|---|---|
| 23050 | 550 lbs. | 1/4"-20 | Alloy Steel | 180° | 360° | Black Oxide | €148.30 | |
| 23051 | 800 lbs. | 5/16"-18 | Alloy Steel | 180° | 360° | Black Oxide | €145.43 | |
| 23053 | 1000 lbs. | 3/8"-16 | Alloy Steel | 180° | 360° | Black Oxide | €142.87 | |
| 23301 | 2500 lbs. | 1/2"-13 | Alloy Steel | 180° | 360° | Black Oxide | €176.81 | |
| 23004 | 2500 lbs. | 1/2"-13 | Alloy Steel | 180° | 360° | Black Oxide | €159.13 | |
| 23322 | 2500 lbs. | 1/2"-13 | Alloy Steel | 180° | 360° | Black Oxide | €127.35 | |
| 23005 | 2500 lbs. | 1/2"-13 | Alloy Steel | 180° | 360° | Black Oxide | €115.05 |
