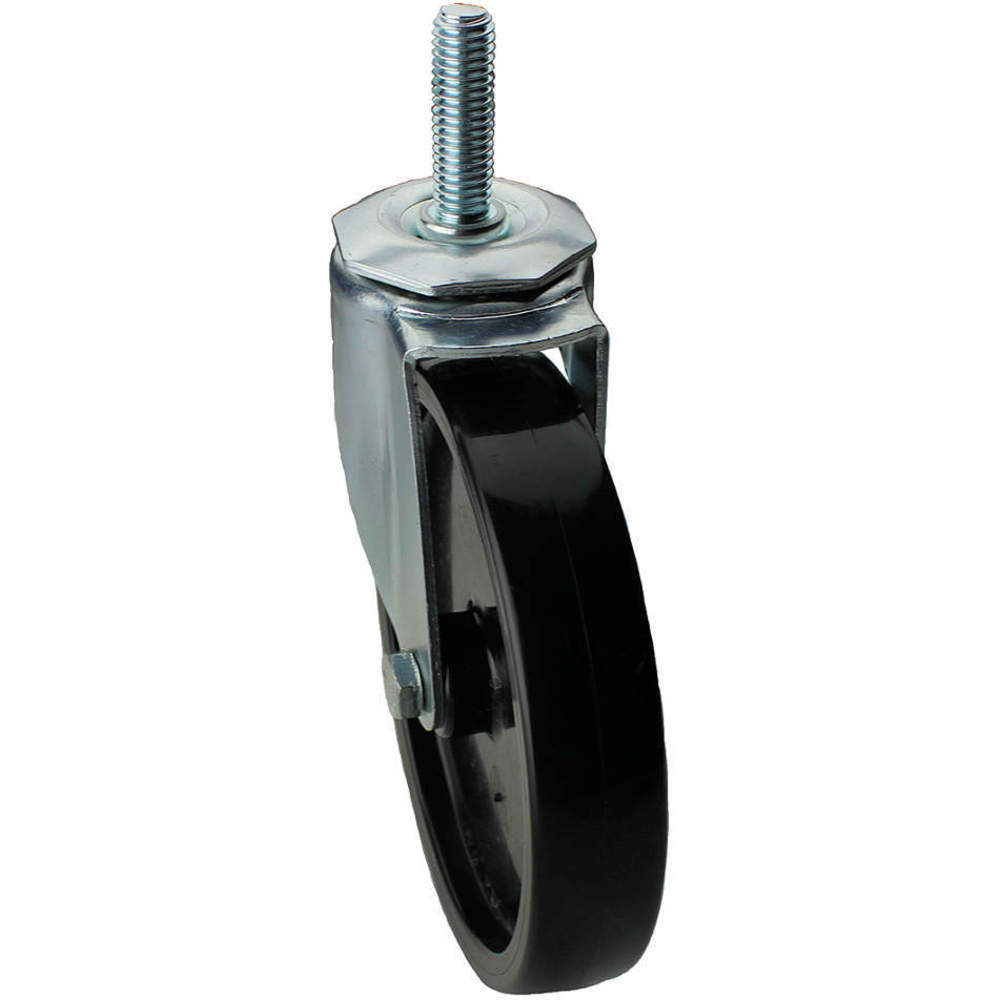

ALBION CASTERS F1IB03041S-S13G Swivel Stem Caster 3 Inch 125 Lb Polyolefin
Polyolefin
125 lbs.
3" Dia
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€12.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Stem Caster |
| Application | Carts, Fixtures, Furniture, Institutional Equipment, Medical Equipment |
| Bearing Type | Double Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 0 lbs. to 299 lbs. |
| Caster Stem Type | Threaded |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Wheel Material | Polyolefin |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Polyolefin |
| Frame Finish | Zinc Plated |
| Load Capacity | 125 lbs. |
| Load Rating | 125 lbs. |
| Mounting Height | 3 5/8" |
| Non-marking | Yes |
| Number Of Wheels | 1 |
| Operating Temperature Range | -20°F to +180°F |
| Overall Height | 3 5/8" |
| Raceway | Double Ball |
| Replacement Wheel | 26Y329 |
| Stem Dia. | 7/16" |
| Stem Length | 1 1/2" |
| Stem Thread Size | 7/16"-14 |
| Stem Type | Threaded |
| Swivel Raceway Type | Double Ball |
| Temp. Range | -20°F to +180°F |
| Thread Size | 7/16"-14 |
| Tread Shape | Standard |
| Wheel Bearing Type | Plain |
| Wheel Bearings | Plain |
| Wheel Color | Black |
| Wheel Core Material | Plastic |
| Wheel Material | Polyolefin |
| Wheel/tread Color | Black |
| Wheel/tread Material | Polyolefin |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 10.16 |
| HS code | 8302200000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Non-marking | Caster Load Rating Range | Wheel/tread Material | Wheel Bearing Type | Caster Brake Type | Tread Shape | Caster Stem Type | Mounting Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
02XB05031S030G | Yes | 0 lbs. to 299 lbs. | Thermoplastic Rubber | Precision Ball | No Brake Included | Standard | Expanding Adapter | 6 7/8" | €55.90 | |
 |
F1RR03052S-S10 | No | 0 lbs. to 299 lbs. | Rubber | Plain | No Brake Included | Standard | Threaded | 3 5/8" | €13.40 | |
|
F1RR05052S-S10G | No | 0 lbs. to 299 lbs. | Rubber | Plain | No Brake Included | Standard | Threaded | 5 13/16" | €23.92 | |
 |
F1IB04041S-S10G | Yes | 0 lbs. to 299 lbs. | Polyolefin | Plain | No Brake Included | Standard | Threaded | 4 13/16" | €15.46 | |
 |
F1IB05041S-S10G | Yes | 0 lbs. to 299 lbs. | Polyolefin | Plain | No Brake Included | Standard | Threaded | 5 13/16" | €19.60 | |
 |
F1RR04052S-S20 | No | 0 lbs. to 299 lbs. | Rubber | Plain | No Brake Included | Standard | Friction Ring | 4 13/16" | €21.05 | |
|
F1RR05052S-S20 | No | 0 lbs. to 299 lbs. | Rubber | Plain | No Brake Included | Standard | Friction Ring | 5 13/16" | €24.74 |
