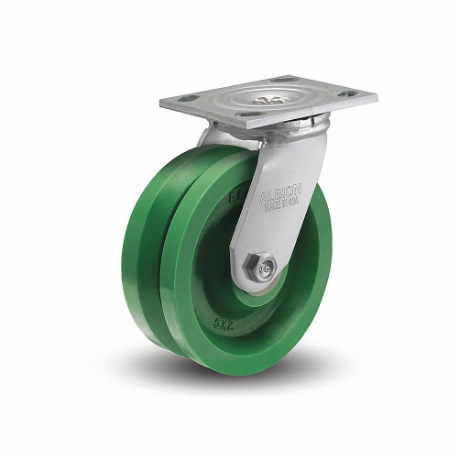

ALBION CASTERS 16XV05202S Caster, 5 Inch Dia, 6 1/2 Inch Height, Swivel
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€133.94 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Caster |
| Application | Shop/Distribution Carts, Dollies, Waste Disposal Trucks, Warehouse Trucks, Floor Trucks |
| Brake Type | No Brake Included |
| Caster Material | Steel |
| Caster Sub-type | Swivel |
| Core Color | Green |
| Features | Low Resistance, Non-Marking, Protects Floors, Track And Flat Surface |
| Frame Finish | Zinc Plated |
| Includes | Assembly Components, Axle, Rig, Wheel |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2.625" x 3" |
| Load Rating | 300 lbs. |
| Load Rating Range | 0 lbs. to 299 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 6 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4.5" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3" x 3.625" |
| Recommended Track Size | 7/8" x 7/8" |
| Replacement Wheel | VX0520212 |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 3 1/4" |
| Tread Material, Wheel Material | Polyurethane |
| Tread Shape | V Groove |
| Wheel Bearing Type | Roller |
| Wheel Core Material | Polyurethane |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Wheel/tread Hardness | 60 Shore D |
| Wheel/tread Hardness Rating | Hard |
Shipping Info:
| Ship weight (kg) | 2.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Load Rating | Mounting Height | Mounting Plate Size | Caster Sub-type | Core Color | Wheel/tread Hardness Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
16XV04202R | 2 5/8" x 3" | 3" x 3 5/8" | 300 lbs. | 5 5/8" | 4.5" x 4" | Rigid | Green | Hard | €95.70 | |
 |

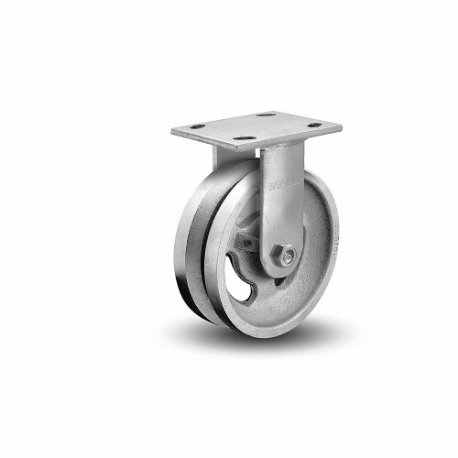

16VG04201R | 2 5/8" x 3" | 3" x 3.625" | 800 lbs. | 5 5/8" | 4" x 4.5" | Rigid | Gray | Hard | €112.74 | |
 |

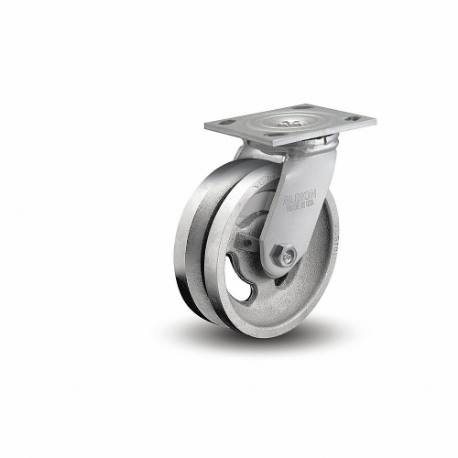

16VG04201S | 2.625" x 3" | 3" x 3 5/8" | 800 lbs. | 5 5/8" | 4.5" x 4" | Swivel | Gray | Extra Hard | €136.41 | |
|
16XV04202S | 2 5/8" x 3" | 3" x 3 5/8" | 300 lbs. | 5 5/8" | 4.5" x 4" | Swivel | Green | Hard | €121.63 | |
|
16VG05201S | 2 5/8" x 3" | 3" x 3 5/8" | 800 lbs. | 6 1/2" | 4.5" x 4" | Swivel | Gray | Extra Hard | €144.30 | |
|
16VG05201R | 2 5/8" x 3" | 3" x 3.625" | 800 lbs. | 6 1/2" | 4" x 4.5" | Rigid | Gray | Hard | €120.36 | |
|
16VG06201R | 2 5/8" x 3" | 3" x 3 5/8" | 1000 lbs. | 7 1/4" | 4.5" x 4" | Rigid | Gray | Extra Hard | €138.32 |
