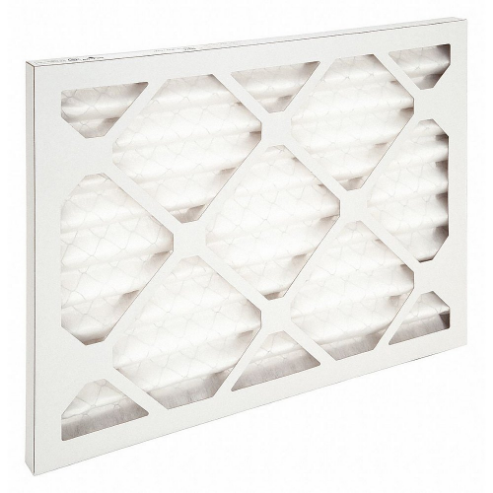

AIR HANDLER 6DNC2 Standard Capacity Pleated Filter 12x15x1 Merv7
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€5.31 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Standard Cap Pleated Filter |
| Actual Depth | 3/4" |
| Actual Filter Size | 11 1/2" x 14 1/2" x 3/4" |
| Actual Height | 11 1/2" |
| Actual Width | 14 1/2" |
| Air Filter Capacity | Standard Capacity |
| Air Flow @ 300 Fpm | 375 CFM |
| Air Flow @ 500 Fpm | 625 CFM |
| Common Applications | General Use |
| Filter Efficiency - Air Filters | 35% |
| Filter Frame Color | White |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores |
| Final Recommended Resistance | 1 in. wc |
| Frame | Yes |
| Frame Material | Chipboard |
| Frame Or Header Material | Beverage Board |
| Frame Type | Moisture Resistant Die Cut Chipboard |
| High Initial Resistance | 0.4 in. wc |
| High Velocity | 500 FPM |
| Initial Resistance @ 300 Fpm | 0.22 in. wc |
| Initial Resistance @ 500 Fpm | 0.37 in. wc |
| Material Properties | Moisture Resistant Die Cut |
| Max. Temp. | 180°F |
| Max. Velocity | 500 FPM |
| Media Area | 2.4 sq. ft. |
| Media Color | White |
| Media Material | Synthetic |
| Nominal Depth | 1" |
| Nominal Filter Size | 12" x 15" x 1" |
| Nominal Pleat | 40% |
| Nominal Width | 15" |
| Performance Rating (meets Or Exceeds) | MERV 7 |
| Pleats Per Linear Feet | 12 |
| Pleats Per Linear Foot | 15 |
| Style - Air Filters | Panel |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 30.48 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Variants
| Product | Model | Nominal Depth | Nominal Filter Size | Nominal Height | Nominal Width | Actual Height | Actual Width | High Velocity | Air Flow @ 300 Fpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15A706 | 1" | 11 x 33 x 1 | 11" | 33" | 10 1/2" | 32 1/2" | 500 FPM | 756 CFM | €10.49 | |
 |
15A721 | 1" | 14 x 19 x 1 | - | 19" | 13 1/2" | 18 1/2" | 500 FPM | 554 CFM | €12.37 | |
 |
1TBE4 | 2" | 18" x 20" x 2" | 18" | 20" | 17 1/2" | 19 1/2" | - | 750 CFM | €9.49 | |
 |
1TBE5 | 2" | 18" x 18" x 2" | 18" | 18" | 17 3/4" | 17 3/4" | - | 675 CFM | €11.10 | |
 |
1TBE8 | 1" | 16" x 30" x 1" | 16" | 30" | 15 3/4" | 29 3/4" | - | 1000 CFM | €13.96 | |
 |
21C046 | 1" | 13 x 25 x 1 | 13" | 25" | 12 1/2" | 24 1/2" | 500 FPM | 677 CFM | €14.69 | |
 |
21C047 | 1" | 14" x 18" x 1" | 14" | 18" | 13 3/4" | 17 3/4" | 500 FPM | 525 CFM | €10.11 |
