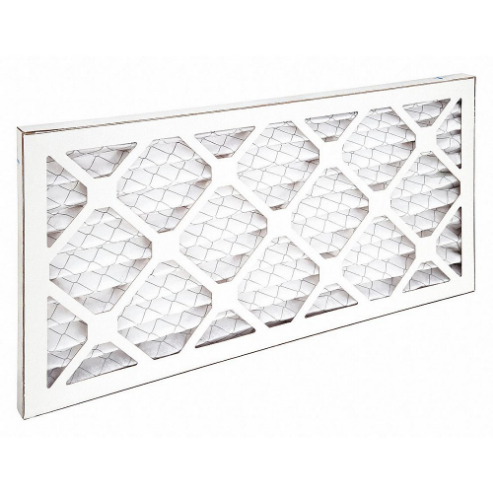

AIR HANDLER 6B986 High Capacity Pleated Filter 10 x 20 x 1 Merv8
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€7.89 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | High Capacity Pleated Filter |
| Actual Depth | 3/4" |
| Actual Filter Size | 9 1/2" x 19 1/2" x 3/4" |
| Actual Height | 9 1/2" |
| Actual Width | 19 1/2" |
| Air Filter Capacity | High Capacity |
| Air Flow @ 300 Fpm | 417 CFM |
| Air Flow @ 500 Fpm | 694 CFM |
| Common Applications | General Use |
| Filter Efficiency - Air Filters | 40% |
| Filter Frame Color | White |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores |
| Final Recommended Resistance | 1 in. wc |
| Frame | Yes |
| Frame Material | Chipboard |
| Frame Or Header Material | Beverage Board |
| Frame Type | Moisture Resistant Die Cut Chipboard |
| High Initial Resistance | 0.22 in. wc |
| High Velocity | 500 FPM |
| Initial Resistance @ 300 Fpm | 0.2 in. wc |
| Initial Resistance @ 500 Fpm | 0.33 in. wc |
| Material Properties | Moisture Resistant Die Cut |
| Max. Temp. | 180°F |
| Max. Velocity | 500 FPM |
| Media Area | 2.9 sq. ft. |
| Media Color | White |
| Media Material | Synthetic |
| Nominal Depth | 1" |
| Nominal Filter Size | 10" x 20" x 1" |
| Nominal Height | 10" |
| Nominal Width | 20" |
| Performance Rating (meets Or Exceeds) | MERV 8 |
| Pleats Per Linear Feet | 15 |
| Style - Air Filters | Pleated |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 29.21 |
| Ship length (cm) | 52.07 |
| Ship width (cm) | 31.5 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Variants
| Product | Model | Nominal Depth | Air Filter Capacity | Nominal Filter Size | Nominal Height | Nominal Width | High Velocity | Actual Height | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15A722 | 2" | High Capacity | 24" x 30" x 2" | 24" | 30" | 500 FPM | 23 7/8" | Yes | €19.77 | |
 |
1TBE6 | 2" | High Capacity | 18" x 20" x 2" | 18" | - | - | 17 1/2" | Yes | €12.37 | |
 |
1TBE7 | 2" | High Capacity | 18" x 18" x 2" | 18" | 18" | - | 17 1/2" | Yes | €13.06 | |
|
1TBE9 | 1" | High Capacity | 16" x 30" x 1" | 16" | 30" | - | 15 3/4" | Yes | €14.40 | |
 |
21C094 | 1" | - | 21" x 21" x 1" | 21" | 21" | 500 FPM | 21" | Yes | €12.98 | |
 |
21C095 | 1" | High Capacity | 20" x 22" x 1" | 20" | 22" | 500 FPM | 19 1/2" | Yes | €13.21 | |
 |
21C096 | 1" | - | 10" x 36" x 1" | 10" | 36" | 500 FPM | 10" | Yes | €11.16 |
