AIR HANDLER 6B693 Electrostatic Air Filter 24 x 20 x 2 Inch
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€126.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electrostatic Air Filter |
| Actual Depth | 1 3/4" |
| Actual Filter Size | 19 1/2" x 23 3/8" x 1 3/4" |
| Actual Height | 19 1/2" |
| Actual Width | 23 3/8" |
| Air Flow @ 300 Fpm | 1000 CFM |
| Air Flow Rate | 300 FPM |
| Common Applications | General Use |
| Filter Efficiency - Air Filters | 85% |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores |
| Final Resistance | 1 in. wc |
| Frame Or Header Material | Aluminum |
| Frame Type | Galvanized Steel |
| Initial Resistance | 0.25 in. wc |
| Initial Resistance @ 300 Fpm | 0.27 in. wc |
| Max. Air Flow | 1388 FPM |
| Max. Temp. | 150°F |
| Max. Velocity | 1388 FPM |
| Media Area | 459 sq. ft. |
| Media Color | Blue, White |
| Media Material | Polypropylene |
| Nominal Depth | 2" |
| Nominal Filter Size | 20" x 24" x 2" |
| Nominal Height | 20" |
| Performance Rating | MERV 5 |
| Recommended Final Resistance | 1 in. wc |
| Standards | Ul 900 |
| Style - Air Filters | Panel |
Shipping Info:
| Ship weight (kg) | 1.15 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 62.99 |
| Ship width (cm) | 49.78 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Variants
| Product | Model | Nominal Depth | Nominal Filter Size | Nominal Height | Nominal Width | Max. Air Flow | Initial Resistance | Air Flow Rate | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2DYK7 | 2" | 12" x 20" x 2" | 12" | 20" | 1200 FPM | 0.18 in. wc | 300 FPM | 150°F | €109.60 | |
 |

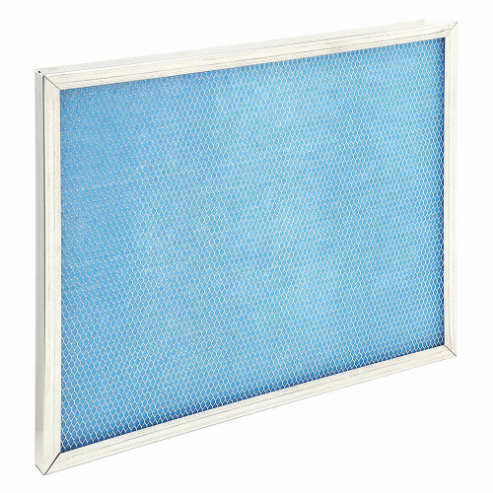

5W894 | 1" | 16" x 20" x 1" | 16" | - | 1200 FPM | 0.18 in. wc | 300 FPM | 150°F | €109.21 | |
 |
5W895 | 1" | 16" x 25" x 1" | 16" | - | 1200 FPM | - | 300 FPM | 150°F | €110.68 | |
 |
5W896 | 1" | 20" x 20" x 1" | - | 20" | 1200 FPM | 0.18 in. wc | 300 FPM | 150°F | €120.04 | |
|
5W897 | 1" | 20" x 25" x 1" | - | - | 1200 FPM | 0.18 in. wc | 300 FPM | 150°F | €131.98 | |
|
5W898 | 2" | 16" x 20" x 2" | 16" | 20" | 1388 FPM | 0.25 in. wc | 300 FPM | 150°F | €120.23 | |
|
5W899 | 2" | 16" x 25" x 2" | 16" | - | 1388 FPM | 0.25 in. wc | 300 FPM | 150°F | €128.72 |
