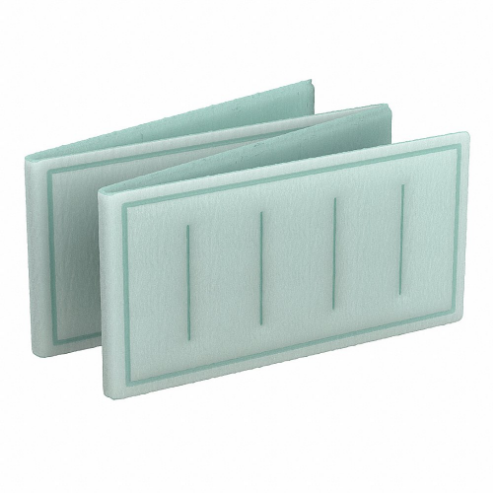

AIR HANDLER 2GGV1 Link Air Filter 20 x 25 Inch 100 Inch Length
Get it by Wednesday, Dec 17
10.00% off
€49.77 /unit
This product can only be shipped in multiples of 4Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Link Air Filter |
| Actual Filter Size | 19 1/4" x 99 1/4" x 1" |
| Actual Height | 19 1/4" |
| Actual Thickness | 1" |
| Actual Width | 99 1/4" |
| Air Flow @ 300 Fpm | 1200 CFM |
| Air Flow @ 500 Fpm | 1968 CFM |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 25% |
| Filter Efficiency - Air Filters | 25% |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores |
| Final Resistance | 1 in. wc |
| Frame Or Header Material | Steel Wire |
| Frame Or Header Material Thickness | 9 ga. |
| Frame Type | Internal Wire Heat Sealed Inside Layers |
| Initial Resistance | 0.28 in. wc |
| Initial Resistance @ 500 Fpm | 0.5 in. wc |
| Link Filter Total Width | 100" |
| Material | Polyester |
| Max. Temp. | 200°F |
| Max. Velocity | 500 FPM |
| Media Color | Green |
| Media Material | Synthetic |
| Nominal Filter Size | 20" x 100" x 1" |
| Nominal Height | 20" |
| Nominal Thickness | 1" |
| Number Of Links | 4 |
| Number Of Sections | 4 |
| Performance Rating | MERV 8 |
| Ply | 2 |
| Recommended Final Resistance | 1 in. wc |
| Section Height | 20" |
| Section Length | 25" |
| Section Width | 25" |
| Sections Per Carton | 4 |
| Standards | Ul 900 |
| Style - Air Filters | Panel |
| Thickness | 1" |
| Total Length | 100" |
Shipping Info:
| Ship weight (kg) | 2.07 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 63.5 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Links | Section Height | Max. Temp. | Section Length | Sections Per Carton | Total Length | Material | Filter Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2DYA1 | 2 | 12" | 200°F | 24" | 2 | 48" | Polyester | 25% | €21.94 | |
 |
2DYA4 | 3 | 12" | 200°F | 24" | 8 | 192" | Polyester | 25% | €32.43 | |
 |
2DYA7 | 4 | 12" | 200°F | 24" | 6 | 144" | Polyester | 25% | €45.80 | |
 |
2DYC1 | 4 | 12" | 200°F | 24" | 4 | 96" | Polyester | 25% | €54.82 | |
 |
2DYE8 | 4 | 15" | 200°F | 20" | 6 | 120" | Polyester | 25% | €54.61 | |
 |
2DYH1 | 2 | 16" | 120°F | 14" | 1 | 14" | Polyester | 25% | €17.05 | |
 |
2DYJ5 | 2 | 16" | 200°F | 20" | 12 | - | Polyester | 25% | €22.87 |
