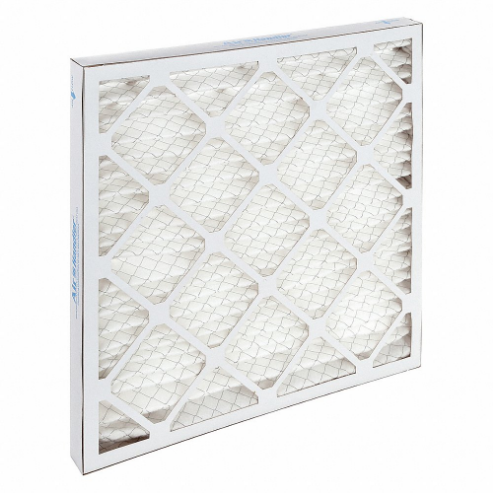

AIR HANDLER 2EKJ5 Green Pleat 20 x 20 x 2 Merv13
Get it by Friday, Dec 19
10.00% off
€23.05 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Green Pleated Filter |
| Actual Depth | 1 3/4" |
| Actual Filter Size | 19 1/2" x 19 1/2" x 1 3/4" |
| Actual Height | 19 1/2" |
| Actual Width | 19 1/2" |
| Air Filter Capacity | High Capacity |
| Air Flow @ 300 Fpm | 833 CFM |
| Air Flow @ 500 Fpm | 1389 CFM |
| Common Applications | Leed, Green |
| Filter Efficiency - Air Filters | 85% |
| Filter Frame Color | White |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Powder, Most Smoke, Paint Pigments |
| Final Recommended Resistance | 1 in. wc |
| Frame Material | Chipboard |
| Frame Or Header Material | Beverage Board |
| Frame Type | Moisture Resistant Die Cut Chipboard |
| High Initial Resistance | 0.29 in. wc |
| High Velocity | 500 FPM |
| Initial Resistance @ 300 Fpm | 0.22 in. wc |
| Initial Resistance @ 500 Fpm | 0.37 in. wc |
| Material Properties | Moisture Resistant Die Cut |
| Max. Temp. | 180°F |
| Max. Velocity | 500 FPM |
| Media Area | 12.2 sq. ft. |
| Media Color | White |
| Media Material | Synthetic |
| Nominal Depth | 2" |
| Nominal Filter Size | 20" x 20" x 2" |
| Nominal Height | 20" |
| Nominal Pleat | 85% |
| Nominal Width | 20" |
| Performance Rating (meets Or Exceeds) | MERV 13 |
| Pleats Per Linear Feet | 15 |
| Style - Air Filters | Panel |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 51.31 |
| Ship length (cm) | 59.69 |
| Ship width (cm) | 50.8 |
| HS code | 5911900080 |
| Country of Origin | US |
Product Variants
| Product | Model | Nominal Depth | Nominal Filter Size | Nominal Width | Nominal Height | Actual Height | High Velocity | Actual Depth | Actual Filter Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11C857 | 1" | 10" x 20" x 1" | 20" | 10" | 9 1/2" | 375 FPM | 3/4" | 9 1/2" x 19 1/2" x 3/4" | €11.79 | |
|
11C858 | 1" | 10" x 24" x 1" | 24" | 10" | 9.375" | 375 FPM | 3/4" | 9 3/8" x 23 3/8" x 3/4" | €18.50 | |
|
11C859 | 1" | 10" x 25" x 1" | - | 10" | 9 3/4" | 375 FPM | 3/4" | - | €18.85 | |
 |
11C860 | 1" | 12" x 12" x 1" | - | 12" | 11 3/8" | 375 FPM | 3/4" | 11 3/8" x 11 3/8" x 3/4" | €23.14 | |
 |
11C861 | 1" | 12" x 20" x 1" | 20" | - | 11 1/2" | 375 FPM | 3/4" | 11 1/2" x 19 1/2" x 3/4" | €13.84 | |
|
11C862 | 1" | - | 24" | - | 11 1/2" | 375 FPM | 3/4" | 11 1/2" x 23 1/2" x 3/4" | €15.11 | |
|
11C863 | 1" | 12" x 25" x 1" | 25" | - | 11 1/2" | 375 FPM | 3/4" | 11 1/2" x 24 1/2" x 3/4" | €19.50 |
