GENERAL ELECTRIC Bolt-On Circuit Breakers: TEYD Series
Filter
A
B
C
D
E
F
G
H| Style | Model | No. Of Poles | Amps | Phase | Dc Voltage | Min. Wire Size | Terminal Connection Type | Max. Air Rating | Max. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TEYD1040B | 1 | 40A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277V AC | 4 AWG | €291.41 | |
| A | TEYD1035B | 1 | 35A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277V AC | 4 AWG | €310.66 | |
| A | TEYD1050B | 1 | 50A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277V AC | 4 AWG | €291.41 | |
| A | TEYD1060B | 1 | 60A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277V AC | 4 AWG | €810.68 | |
| A | TEYD1070B | 1 | 70A | 1 | Not Rated | 4 AWG | Lug | 25 kA At 277V AC | 2 AWG | €943.12 | |
| A | TEYD1045B | 1 | 45A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277V AC | 4 AWG | €810.68 | |
| B | TEYD1015B | 1 | 15A | 1 | Not Rated | 14 AWG | Screw Clamp | 25 kA At 277V AC | 10 AWG | €291.41 | |
| A | TEYD1020B | 1 | 20A | 1 | Not Rated | 14 AWG | Screw Clamp | 25 kA At 277V AC | 10 AWG | €291.41 | |
| A | TEYD1025B | 1 | 25A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277V AC | 4 AWG | €310.66 | |
| A | TEYD1030B | 1 | 30A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277V AC | 4 AWG | €291.41 | |
| C | TEYD2125B | 2 | 125A | 1 | Not Rated | 4 AWG | Lug | 25 kA At 277/480V AC | 2 AWG | €4,690.55 | |
| C | TEYD2110B | 2 | 110A | 1 | Not Rated | 4 AWG | Lug | 25 kA At 277/480V AC | 2 AWG | €4,690.55 | |
| C | TEYD2100B | 2 | 100A | 1 | Not Rated | 4 AWG | Lug | 25 kA At 277/480V AC | 2 AWG | €784.52 | |
| C | TEYD2050B | 2 | 50A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277/480V AC | 4 AWG | €707.21 | |
| C | TEYD2040B | 2 | 40A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277/480V AC | 4 AWG | €707.21 | |
| C | TEYD2060B | 2 | 60A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277/480V AC | 4 AWG | €707.21 | |
| C | TEYD2035B | 2 | 35A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277/480V AC | 4 AWG | €1,628.92 | |
| C | TEYD2020B | 2 | 20A | 1 | Not Rated | 14 AWG | Screw Clamp | 25 kA At 277/480V AC | 10 AWG | €707.21 | |
| C | TEYD2080B | 2 | 80A | 1 | Not Rated | 4 AWG | Lug | 25 kA At 277/480V AC | 2 AWG | €784.52 | |
| C | TEYD2015B | 2 | 15A | 1 | Not Rated | 14 AWG | Screw Clamp | 25 kA At 277/480V AC | 10 AWG | €707.21 | |
| C | TEYD2090B | 2 | 90A | 1 | Not Rated | 4 AWG | Lug | 25 kA | - | €784.52 | |
| C | TEYD2070B | 2 | 70A | 1 | Not Rated | 4 AWG | Lug | 25 kA At 277/480V AC | 2 AWG | €2,010.19 | |
| C | TEYD2025B | 2 | 25A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277/480V AC | 4 AWG | €707.21 | |
| C | TEYD2030B | 2 | 30A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277/480V AC | 4 AWG | €707.21 | |

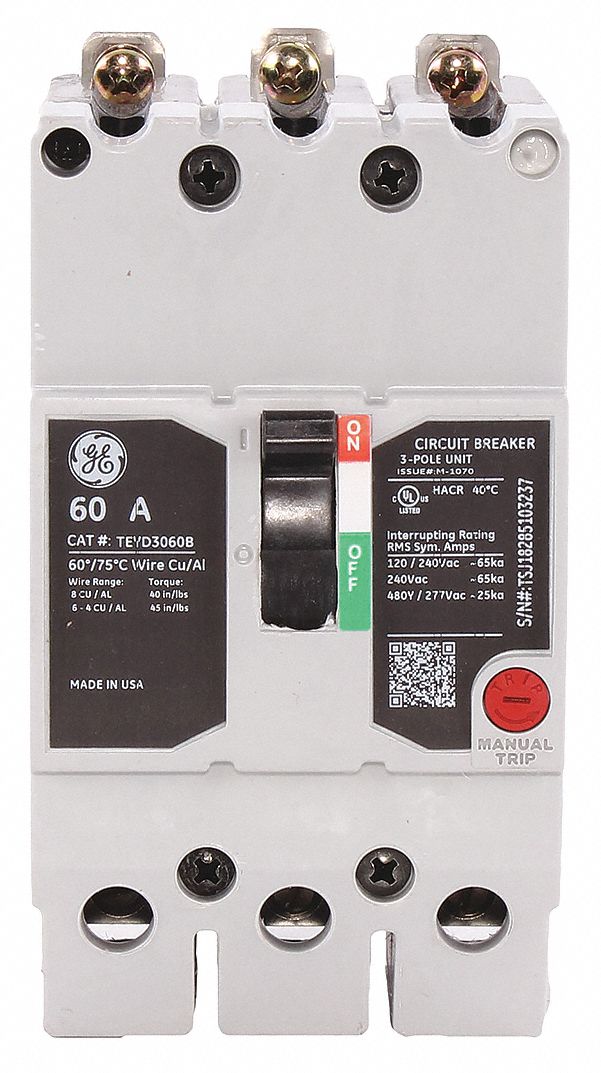

| D | TEYD3060B | 3 | 60A | 3 | Not Rated | 10 AWG | Lug | 25 kA At 277/480V AC | 4 AWG | €811.60 | |
| E | TEYD3110B | 3 | 110A | 3 | Not Rated | 4 AWG | Lug | 25 kA | - | €6,249.51 | |
| E | TEYD3100B | 3 | 100A | 3 | Not Rated | 4 AWG | Lug | 25 kA | - | €860.29 | |
| E | TEYD3090B | 3 | 90A | 3 | Not Rated | 4 AWG | Lug | 25 kA At 277/480V AC | 2 AWG | €860.29 | |
| E | TEYD3080B | 3 | 80A | 3 | Not Rated | 4 AWG | Lug | 25 kA At 277/480V AC | 2 AWG | €860.29 | |
| E | TEYD3070B | 3 | 70A | 3 | Not Rated | 4 AWG | Lug | 25 kA At 277/480V AC | 2 AWG | €860.29 | |
| E | TEYD3045B | 3 | 45A | 3 | Not Rated | 10 AWG | Lug | 25 kA At 277/480V AC | 4 AWG | €843.64 | |
| E | TEYD3050B | 3 | 50A | 3 | Not Rated | 10 AWG | Lug | 25 kA At 277/480V AC | 4 AWG | €811.60 | |
| E | TEYD3040B | 3 | 40A | 3 | Not Rated | 10 AWG | Lug | 25 kA At 277/480V AC | 4 AWG | €811.60 | |
| F | TEYD3030B | 3 | 30A | 3 | Not Rated | 10 AWG | Lug | 25 kA At 277/480V AC | 4 AWG | €811.60 | |
| E | TEYD3025B | 3 | 25A | 3 | Not Rated | 10 AWG | Lug | 25 kA At 277/480V AC | 4 AWG | €843.64 | |
| G | TEYD3020B | 3 | 20A | 3 | Not Rated | 14 AWG | Screw Clamp | 25 kA At 277/480V AC | 10 AWG | €811.60 | |
| H | TEYD3015B | 3 | 15A | 3 | Not Rated | 14 AWG | Screw Clamp | 25 kA At 277/480V AC | 10 AWG | €811.60 | |
| E | TEYD3035B | 3 | 35A | 3 | Not Rated | 10 AWG | Lug | 25 kA At 277/480V AC | 4 AWG | €843.64 |
Bolt-On Circuit Breakers: TEYD Series
General Electric TEYD Series circuit breakers are suitable for protecting heating, refrigeration and air conditioning equipment from current overloads and short circuits. These UL-listed breakers feature a compact design with bolt-on mounting facility to reduce the installation downtime and a thermal-magnetic, non-interchangeable trip unit for instantly reacting against severe power surges while avoiding tripping on mild overloads. Choose from a broad range of these single- / three-phase circuit breakers available in screw clamp and lug terminal connections on Raptor Supplies.
