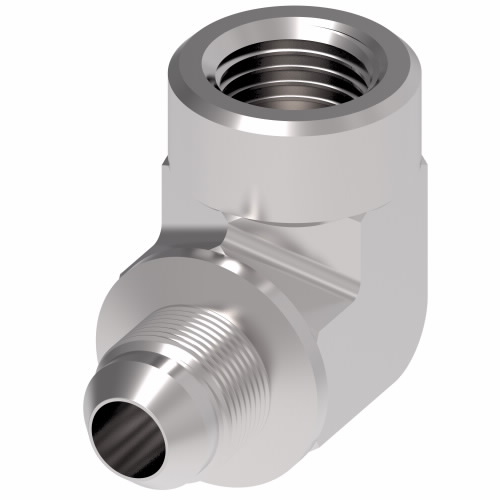

AEROQUIP 2025-16-16S Elbow, 90 Deg., 1 Inch x 1 Inch Size, Female x Male, NPTF x JIC, Rigid
Item: AH8RMRModel: 2025-16-16SCross Ref: 38YP46
7 In Stock
Ships within 2 days via
5.00% off
€79.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Adapter |
| Adapter Material | Carbon Steel |
| Angle | 90° |
| Application | Marine/Military, Chemical Processing, Pulp And Paper Industries, Food And Beverage Processing, Off-Shore Drilling |
| Compatible Pipe Size | 1" |
| Crimpable | No |
| Drop Dimension | 2.17 |
| End Gender 1 | Female |
| End Gender 2 | Male |
| End Size 1 | 1" |
| End Size 2 | 1" |
| End Type 1 | NPTF |
| End Type 2 | SAE 37 |
| Finish | Dura Kote |
| Fitting Material | Carbon Steel |
| Fitting Movement | Rigid |
| Fitting Shape | 90° Elbow |
| For Hose Type | Hydraulic |
| Height | 2.975" |
| Hex Size 1 | 1.61" |
| Hose Fitting A Connection Type | NPTF |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 1" |
| Hose Fitting B Connection Type | Jic |
| Hose Fitting B Gender | Male |
| Hose Fitting B Size | 1" |
| Included O-ring | No |
| Inside Dia. | 0.851" |
| Item Type | NPTF Female/SAE 37掳 Male 90掳 Elbow Adapter |
| Length | 2.425" |
| Male Ors Size (in.) | 1"-11-1/2 |
| Male Sae Size (in.) | 1-5/16"-12 |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Operating Temp. | 400°F |
| Max. Working Pressure @ 70f | 2500 psi |
| Min. Operating Temp. | -65°F |
| Overall Length | 1.62" |
| Thread Sealant | No |
| Thread Size | 1"-11.5 |
| Thread Size 1 | 1"-11 1/2 |
| Thread Size 2 | 1 5/16"-12 |
| Width | 1.61" |
| Working Pressure | 3000 psi |
Shipping Info:
| Ship weight (kg) | 0.53 |
| Ship height (cm) | 7.56 |
| Ship length (cm) | 6.16 |
| Ship width (cm) | 4.09 |
| Country of Origin | US |
Product Details:
- Fitting Shape : 90 Degrees Elbow
Product Variants
| Model | Hose Fitting B Size | Hose Fitting A Size | Max. Working Pressure @ 70f | Compatible Pipe Size | Thread Size 1 | Height | End Size 1 | Hex Size 1 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2025-2-4S | 1/4" | 1/8" | 5000 psi | 1/8" | 1/8"-27 | 1.355" | 1/8" | 0.55" | €65.50 | |
| 2025-4-4S | 1/4" | 1/4" | 5000 psi | 1/4" | 1/4"-18 | 1.594" | 1/4" | 3/4" | €19.47 | |
| 2025-4-5S | 5/16" | 1/4" | 4000 psi | 1/4" | 1/4"-18 | 1.595" | 1/4" | 3/4" | €77.98 | |
| 2025-4-6S | 3/8" | 1/4" | 4000 psi | 1/4" | 1/4"-18 | 1.604" | 1/4" | 3/4" | €32.01 | |
| 2025-6-6S | 3/8" | 3/8" | 4000 psi | 3/8" | 3/8"-18 | 1.745" | 3/8" | 0.87" | €34.98 | |
| 2025-8-8S | 1/2" | 1/2" | 4000 psi | 1/2" | 1/2"-14 | 2.05" | 1/2" | 1.06" | €35.75 | |
| 2025-8-10S | 5/8" | 1/2" | 3000 psi | 1/2" | 1/2"-14 | 2.17" | 1/2" | 1.06" | €58.75 |
