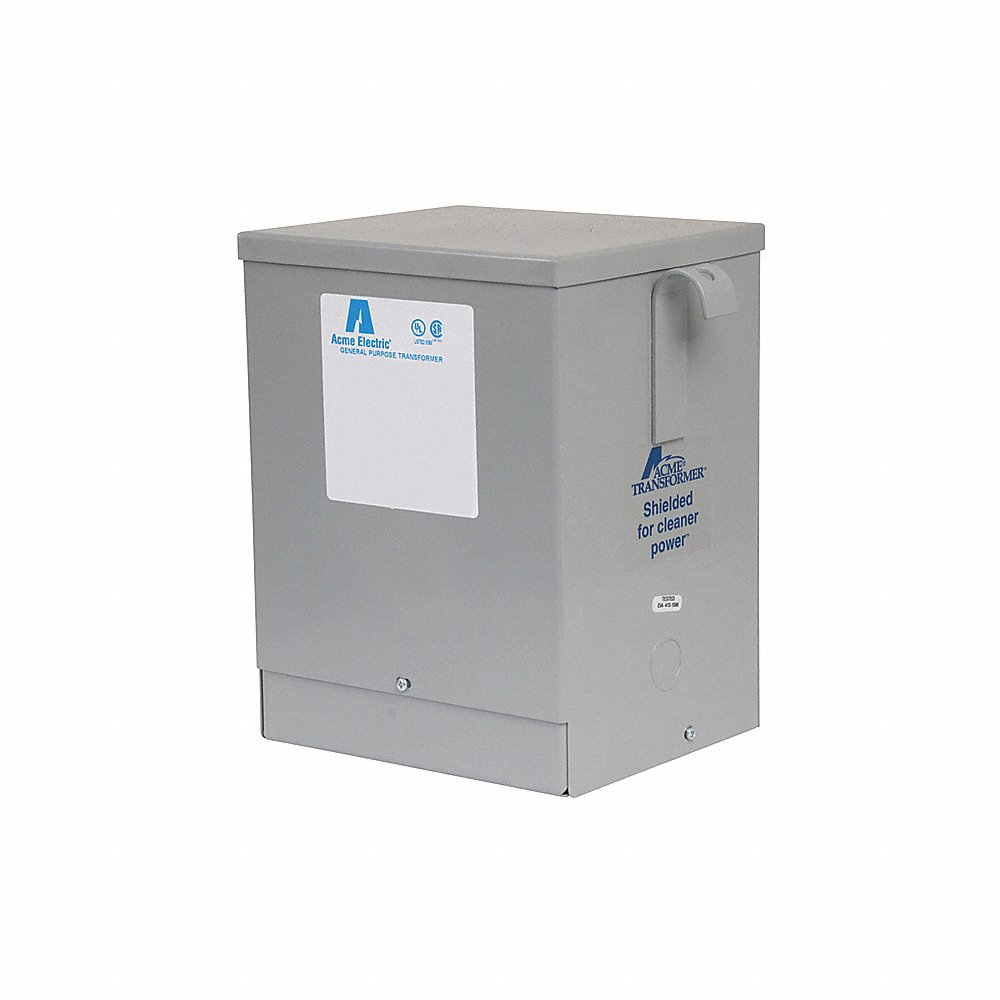

ACME ELECTRIC T279743S Distribution Transformer, Low Voltage, Single Phase, 3kVA
Get it by Wednesday, Aug 26
13.00% off
€1,004.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transformer |
| Carton Quantity | 1 |
| Color | Gray |
| Construction | Encapsulated |
| Depth | 7.13" |
| Dimensions | 7.13" x 10.31" x 11.5" |
| Electrostatic Shield | Shielded |
| Enclosure Finish | Gray |
| Enclosure Finish | Powder Polyurethane Paint |
| Enclosure Material | Steel |
| Enclosure Rating | NEMA 3R |
| Enclosure Type | Indoor/Outdoor |
| Frequency | 60 Hz |
| Height | 11.5" |
| Included Knockouts | Knockouts Included |
| Indoor/outdoor | Indoor, Outdoor |
| Input Voltage | 120/208/240/277V AC |
| Ip Rating | IP14 |
| Knockout Size | 3/4", 1 1/4" |
| Kva Rating | 3 kVA |
| Length | 7.13" |
| Max. Temp. Rise | 115°C |
| Mounting Location | Wall |
| Mounting Type | Wall |
| Nema Enclosure Rating | NEMA 3R |
| Nema Rating | Nema 3R |
| Outdoor Rated-transformer | Yes |
| Output Voltage | 120/240V AC |
| Overall Depth | 7.13" |
| Overall Height | 11 1/2" |
| Overall Width | 10.31" |
| Pallet Quantity | 20 |
| Phase | 1 |
| Power | 3 kVA |
| Primary Voltage | 120/208/240/277V |
| Product Datasheet | acme-electric-t279743s.pdf |
| Secondary Voltage | 120/240V |
| Temp. Rise | 115°C |
| Ul Insulation Class | 180°C |
| Ul Standard | UL 506 |
| Va | 3 kVA |
| Va Rating-transformer | 3 kVA |
| Voltage Function | Step Down |
| Voltage Function-transformer | Step Down |
| Width | 10.31" |
| Winding Material-transformer | Copper |
Shipping Info:
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 29.21 |
| Ship length (cm) | 18.11 |
| Ship width (cm) | 26.19 |
| HS code | 8504320000 |
| Country of Origin | MX |
Product Details:
- 120/208/240/277V Primary Voltage, 120/240V Secondary Voltage
Documentation:
Product Variants
| Model | Output Voltage | Height | Depth | Dimensions | Overall Height | Overall Width | Overall Depth | Power | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| T279746S | 120/240V AC | 15.19" | 10 21/25" | 10.84" x 13.5" x 15.19" | 15.19" | 13 1/2" | 10.84" | 10 kVA | €2,761.24 | |
| T279745S | 120/240V | 15.19" | 10 21/25" | 10.84" x 13.5" x 15.19" | 15.19" | 13 1/2" | 10.84" | 7.5 kVA | €2,315.30 | |
| T279747S | 120/240V | 16.94" | 11.65" | 11.59" x 14.12" x 16.94" | 16.94" | 14.12" | 11.59" | 15 kVA | €3,882.16 | |
| T279748S | 120/240V | 18.44" | 13.34" | 13.34" x 16.13" x 18.44" | 18.44" | 16.13" | 13.34" | 25 kVA | €4,760.43 | |
| T279740S | 120/240V | 10.5" | 5.13" | 5.13" x 5.5" x 10.5" | 10 1/2" | 5 1/2" | 5.13" | 1 kVA | €600.15 | |
| T279742S | 120/240V | 13" | 5.13" | 5.13" x 5.5" x 13" | 13" | 5 1/2" | 5.13" | 2 kVA | €953.27 | |
| T279741S | 120/240V | 11.62" | 5.13" | 5.13" x 5.5" x 11.62" | 11.62" | 5 1/2" | 5.13" | 1.5 kVA | €736.49 |
