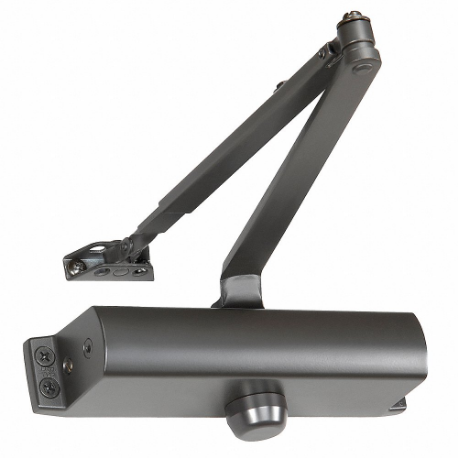

ABLOY 1104BCX690 Door Closer, Non Hold Open, Non-Handed, 9 3/4 Inch Housing Lg, 2 5/8 Inch Housing Dp
Item: CP2NZCModel: 1104BCX690Cross Ref: 5VRY8
7 In Stock
Ships within 2 days via
10.00% off
€189.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Door Closer |
| Ada Compliant | No |
| Arm Material | Aluminum |
| Arm Type | Parallel, Regular |
| Closer Cycles | 25000000 |
| Closer Mounting Style | Parallel, Regular, Top Jamb |
| Closer Mounting Type | Standard, Parallel, Top Frame |
| Closer Series | 1100 Series |
| Closer Type | Non Hold Open |
| Color | Dark Bronze |
| Door Width Campatibility | 48" |
| Energy Source | Hydraulic |
| Exterior Door Width - Maximum | 36" |
| Features | Adjustable Backcheck Valve, Adjustable Closing Speed Valve, Adjustable Latching Speed Valve, Auxiliary Door Stop Required, Full Rack And Pinion |
| Finish | Dark Bronze Paint |
| Fire Rating | 3 hrs. |
| Hand Orientation | Non Handed |
| Height Between Mounting Holes | 3/4" |
| Housing Depth | 1 3/4" |
| Housing Height | 2 5/8" |
| Housing Length | 9 3/4" |
| Hydraulic/pneumatic | Hydraulic |
| Includes | Adjustable, Closing Speed Valve, Latching Speed Valve, Mounting Hardware |
| Interior / Exterior | Interior And Exterior |
| Interior Door Width | 48" |
| Length Between Mounting Holes | 9 1/16" |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Use | Exterior |
| Manual/automatic | Manual |
| Material | Aluminum |
| Max Door Opening Angle | 180° |
| Operation Style | Manual |
| Performance Rating | Grade 1 Heavy Duty |
| Product Type | Door Closer |
| Projection | 3" |
| Projection From Wall | 3" |
| Spring Size | 4 |
| Spring Size - Minimum | 1 |
| Spring Type | Adjustable |
Shipping Info:
| Ship weight (kg) | 2.61 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Closer Type | Spring Size | Arm Type | Color | Arm Material | Interior / Exterior | Projection From Wall | Closer Mounting Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5831T x 690 | Hold Open | 6 | Parallel, Regular | Dark Bronze | Steel | Interior And Exterior | 2 1/4" | Parallel, Regular, Top Jamb | €519.69 | |
 |

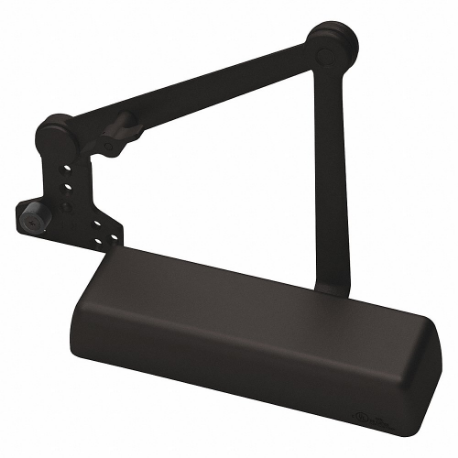

5821 Tx 690 | Hold Open | 6 | Parallel, Regular | Dark Bronze | Cast Iron | Interior And Exterior | 2 1/4" | Parallel, Regular, Top Jamb | €365.46 | |
 |

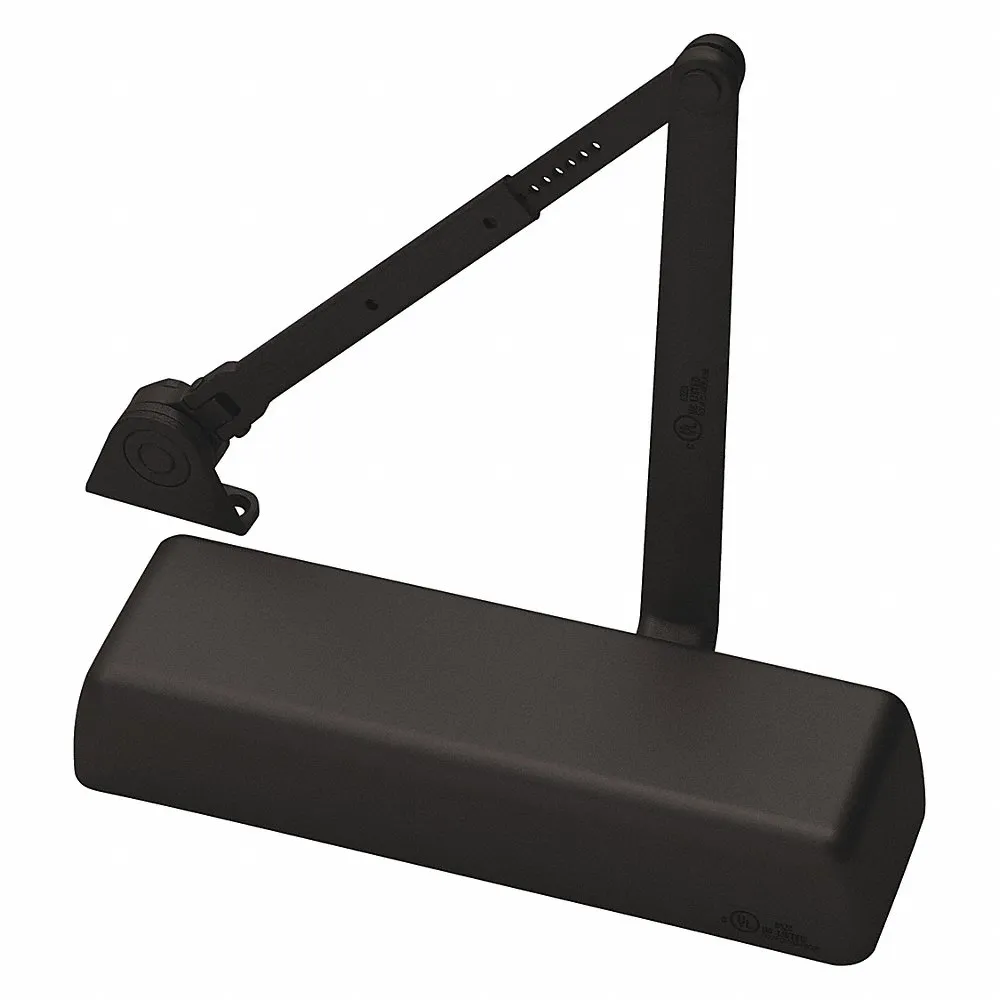

5811 x 690 | Hold Open | 6 | Regular | Dark Bronze | Cast Iron | Interior And Exterior | 2 1/4" | Parallel, Regular, Top Jamb | €343.02 | |
 |

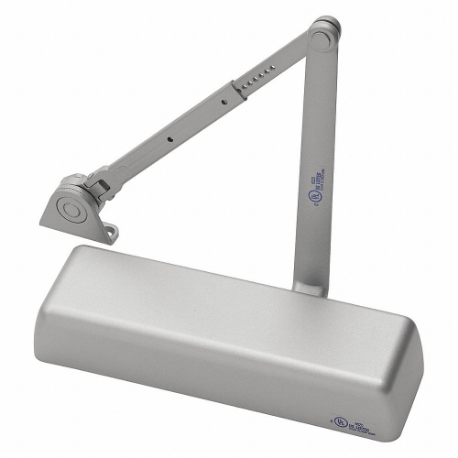

5811 x 689 | Hold Open | 6 | Regular | Gray | Cast Iron | Interior And Exterior | 2 1/4" | Parallel, Regular, Top Jamb | €343.02 | |
|
5821 Tx 689 | Hold Open | 6 | Parallel, Regular | Gray | Cast Iron | Interior And Exterior | 2 1/4" | Parallel, Regular, Top Jamb | €365.46 | |
|
5831T x 689 | Hold Open | 6 | Parallel, Regular | Gray | Steel | Interior And Exterior | 2 1/4" | Parallel, Regular, Top Jamb | €454.73 | |
 |

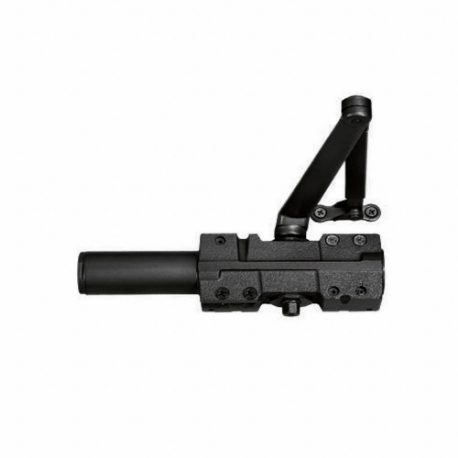

5811 x BSP | Hold Open | 6 | Parallel, Regular | Black | Cast Iron | Interior And Exterior | 2 1/4" | Tri Mount | €401.71 |
