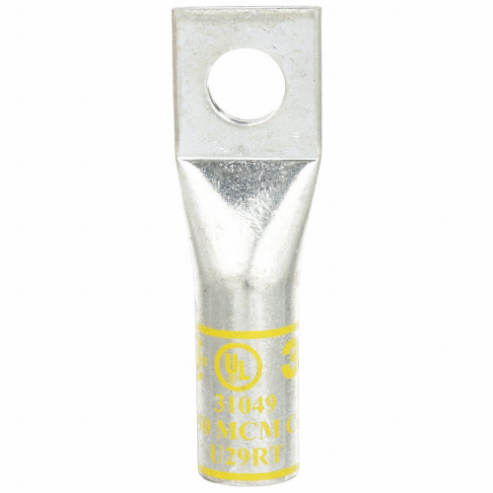

3M 7000031402 31049 One-Hole Lug Compression Connector, 250 kcmil Max Wire Size, 1/2 Inch Stud Size
Item: AB9KXUModel: 7000031402Cross Ref: 2DRW2 / 31049
7 In Stock
Ships within 2 days via
10.00% off
€349.30 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Copper 1-Hole L-Barrel Lug |
| Barrel Id | 0.59" |
| Barrel Od | 3/4" |
| Barrel Size | Long |
| Barrel Style | Seamless |
| Cable Size | 250 kcmil |
| Cable Size Code | 250 kcmil |
| Color Code | Yellow |
| Connection Orientation | Straight |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 16 |
| For Conductor Material | Copper |
| For Wire Type | Stranded |
| Hole Center To End | 0.53" |
| Inspection Hole | No |
| Length | 3.38" |
| Material | Copper |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 250 kcmil |
| Number Of Holes | 1 |
| Overall Length | 3.38" |
| Overall Width | 1.13" |
| Peep Hole | No |
| Plate Material | Tin |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | Corrosion Resistance, Good Conductivity, Reliable Performance, Secure Fit |
| Stud Size | 1/2" |
| Termination Style | Crimp |
| Tongue Length | 1.11" |
| Tongue Style | Standard |
| Tongue Width | 1.11" |
| Type | Standard |
| Width | 1.13" |
Shipping Info:
| Ship weight (kg) | 0.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.59 |
| Ship width (cm) | 2.87 |
| HS code | 8535908040 |
| Country of Origin | CL |
Product Variants
| Product | Model | Color Code | Stud Size | Cable Size | Hole Center To End | Overall Length | Cable Size Code | Connector Type | Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

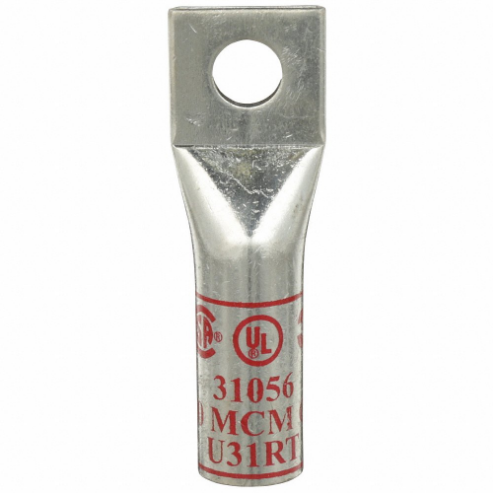

7000031404 | Red | 1/2" | 350 kcmil | 0.53" | 3.85" | 350 kcmil | Straight Barrel | Copper | 10 | €473.45 | |
 |
7000031444 | Blue | 1/2" | 400 kcmil | 0.66" | 4.16" | 400 kcmil | Straight Barrel | Copper | 10 | €533.01 | |
 |
7000031403 | White | 1/2" | 300 kcmil | 0.53" | 3.78" | 300 kcmil | Straight Barrel | Copper | 10 | €374.31 | |
 |
7000031405 | Brown | 1/2" | 500 kcmil | 0.66" | 4.5" | 500 kcmil | Straight Barrel | Copper | 10 | €597.27 | |
 |

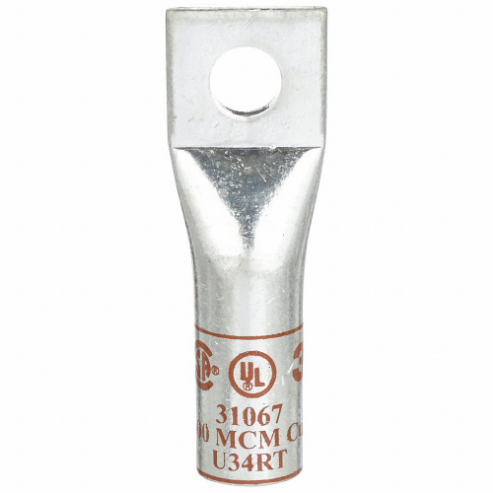

7100057122 | Brown | 5/8" | 500 kcmil | 0.66" | 4.5" | 500 kcmil | Straight Barrel | Copper | 10 | €530.04 | |
 |

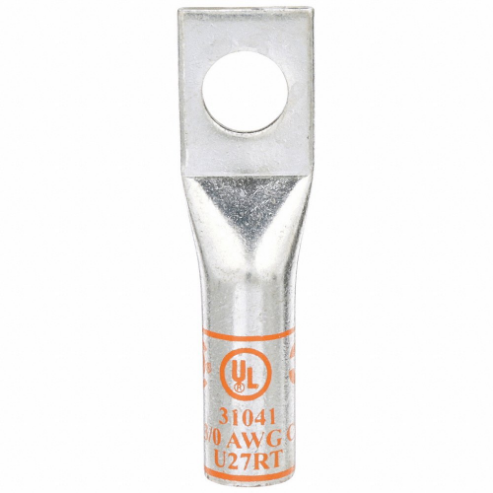

7000031400 | Orange | 1/2" | - | 0.53" | 3.13" | - | Straight Barrel | Copper | 10 | €325.02 | |
 |

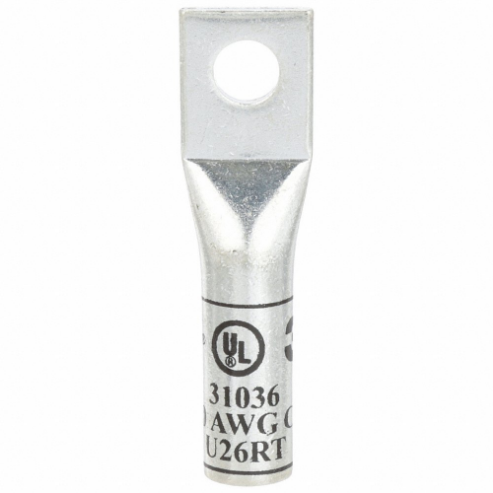

7000031399 | Black | 3/8" | - | 3/8" | - | - | Straight Barrel | Copper | 10 | €252.61 |
