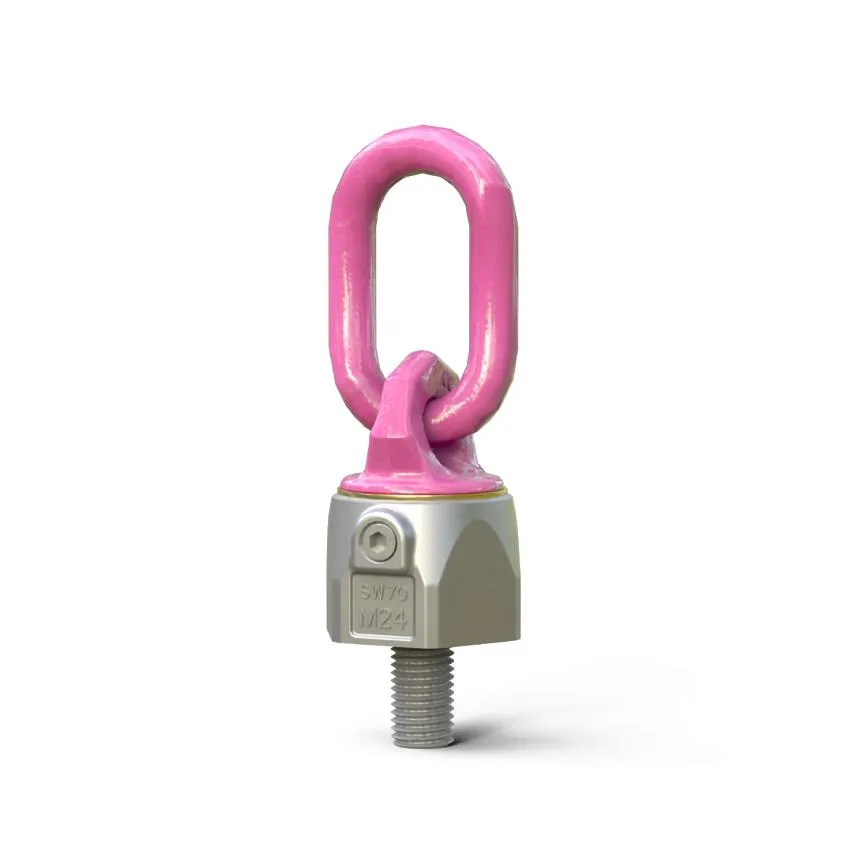

RUD CHAIN VWBG Load Rings, Metric Thread

Item: AA7JVC
Model: 7999059
Cross Ref: 16A744 / VWBG 8t(10t)-M36
Check Availability
In Stock

Get it by Dec 17, Wednesday

Nominal Size
€1,902.14
10% off
€1,711.93 /unit (ex. VAT)
Add To Cart
Request Quote

Payment

Delivery

  • Specifications
  • Shipping Information

Specifications

Item Hoist Ring
Bail Dia. 22.23 mm
Bail Inside Length 3 3/8"
Bail Inside Width 2"
Bail Thickness 7/8"
Color Pink
Dimension B 85.73 mm
Dimension C 50.01 mm
Dimension E 207.95 mm
Dimension F 53.98 mm
Finish Powder Coated
Hoist Ring Type Pivot, Swivel
Installation Torque 410 N-m
Load Capacity 7996.83 Kg
Material Steel
Max. Operating Temp. 400°C
Maximum Operating Temperature 752°F
Mfr. Series VWBG Series
Min. Operating Temp. -40°C
Minimum Installation Torque 302.4 lbs.-ft.
Minimum Operating Temperature -40°F
Mount Type Screw On
Mounting Style Screw On
Nominal Size M36
Nominal Wll (kg) 8000 Kg
Operation Lifting
Overall Length 3 1/2"
Overall Width 3 1/2"
Pitch 208 mm
Pivot 230°
Pivot Angle 230°
Rotate Angle 360°
Swivel Angle 360°
System Of Measurement Metric
Thread Projection 53.98 mm
Thread Size M36 x 4
Usable Thread Length 2 1/8"
Working Load Limit 17630 lbs.
Standards DGUV-R 109-017:2020-12, DIN EN 1677-1:2009-03, DIN EN 1677-4:2009-03, DIN EN ISO 12100:2011-03

Shipping Information

Height (cm) 8.51
Length (cm) 27.51
Width (cm) 9.91
HS Code 7326908588
Country Of Origin DE
Weight (kg) 4.68
