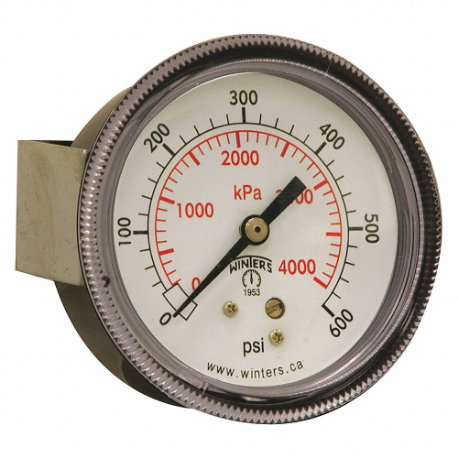

WINTERS INSTRUMENTS P9U901454UC Panel-Mount Pressure Gauge, U-Clamp, 0 To 600 PSI, 2 1/2 Inch Dial, 1/4 Inch Npt Male
Item: CV3TAPModel: P9U901454UCCross Ref: 491D64
7 In Stock
Ships within 2 days via
10.00% off
€20.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-2-1-2% |
| Accuracy Grade | ASME B40.100 Grade A |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | -40°F to +150°F, -40°C to +65°C |
| Ambient Temp. Range | -40°F to +150°F |
| Application | Compressors, Panels, Severe Ambient Conditions, Water Pressure Testing |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Construction | Welded Joint |
| Case Depth | 1 1/5" |
| Case Dia. | 2.834" |
| Case Finish | Painted |
| Case Material | Steel |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Non-Clogging, Non-Corroding |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | Flutterless Pointer With Dampened Movement |
| For Panel Cut-out Size | 2.66" |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade A Industrial |
| Gauge Case Liquid | None |
| Gauge Case Material | Steel |
| Gauge Mounting Type | U-Clamp |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | Yes |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | IP52 |
| Ip/nema Rating | NEMA IP52 |
| Lens Material | Acrylic |
| Lens Material - Gauge | Plastic |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 5 yrs. |
| Mfr. Series | P9U 90 Series |
| Mounting Type | U Clamp |
| Movement Material | Brass |
| Nominal Dial Size | 2 1/2" |
| Non-sparking | No |
| Over-pressure Limit | 25% |
| Panel-mountable | Yes |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Range | 0 psi to 600 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 600 psi |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +150°F |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 kPa to 4140 kPa |
| Secondary Scale Units | Kpa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Socket Material | Brass |
| Vibration Resistance | Dry Case Vibration Dampened |
| Wetted Parts Material | Brass, Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 7.2 |
| Ship width (cm) | 7.2 |
| Country of Origin | CN |
Product Variants
| Product | Model | Pressure Range Type | Pressure Range | Nominal Dial Size | Vibration Resistance | Primary Scale Units | Case Depth | Wetted Parts Material | Secondary Pressure Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P9U901439UC | Pressure | 0 psi to 100 psi | 2 1/2" | Dry Case Vibration Dampened | Psi | 1 1/5" | Brass, Phosphor Bronze | 0 kPa to 690 kPa | €22.70 | |
 |
P9U901406UC | Pressure | 0 psi to 100 psi | 2" | None | Psi | 1.145" | Brass, Phosphor Bronze | 0 kPa to 690 kPa | €16.59 | |
 |
P9U901407UC | Pressure | 0 psi to 100 psi | 2" | Dry Case Vibration Dampened | Psi | 1.145" | Brass, Phosphor Bronze | 0 kPa to 690 kPa | €25.94 | |
 |
P9U901458UC | Pressure | 0 psi to 100 psi | 3 1/2" | None | Psi | 1.26" | Brass, Phosphor Bronze | 0 kPa to 690 kPa | €34.74 | |
 |
P9U901441UC | Pressure | 0 psi to 200 psi | 2 1/2" | Dry Case Vibration Dampened | Psi | 1 1/5" | Brass, Phosphor Bronze | 0 kPa to 1400 kPa | €22.70 | |
|
P9U901460UC | Pressure | 0 psi to 200 psi | 3 1/2" | None | Psi | 1.26" | Brass, Phosphor Bronze | 0 kPa to 1400 kPa | €34.74 | |
 |
P9U901437UC | Pressure | 0 psi to 30 psi | 2 1/2" | Dry Case Vibration Dampened | Psi | 1 1/5" | Brass, Phosphor Bronze | 0 kPa to 200 kPa | €22.70 |
