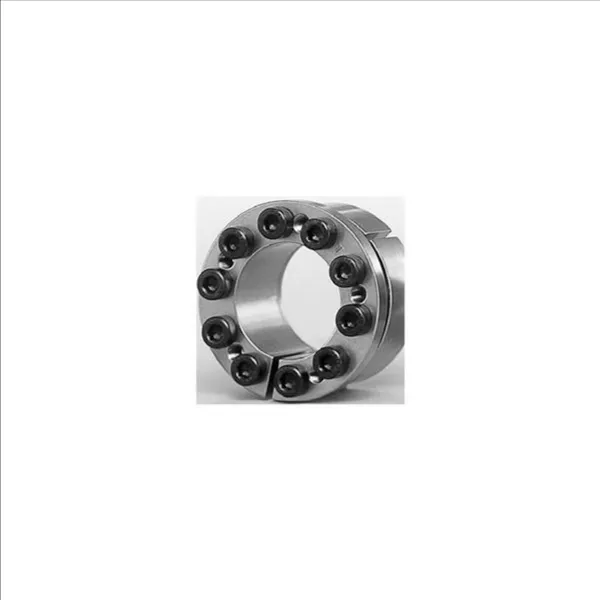

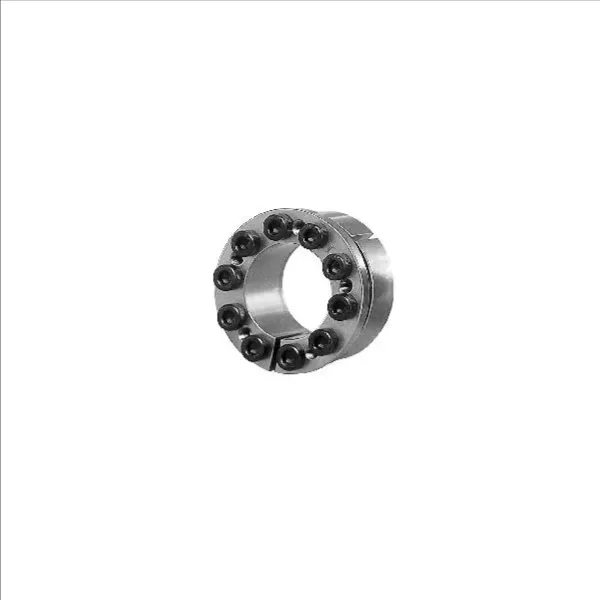

TSUBAKI KE Inch Series Power-Locks
Filter
A
B
C| Style | Model | Transmissible Torque | P-shaft Contact Pressure | Shaft Outside Dia. | P1-hub Bore Contact Pressure | Transmissible Thrust | D-hub Counter I.d. | L | D1-o.d. Of Ke | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PLFKE | 22 lbs.-ft. | 28283 psi | 3/8" | 11313 psi | 1340 lbs. | 0.938" | 0.65" | 1.063" | €95.44 | |
| A | PLHKE | 39 lbs.-ft. | 28283 psi | 1/2" | 13344 psi | 1785 lbs. | 1.063" | 0.65" | 1.188" | €95.44 | |
| A | PLJKE | 74 lbs.-ft. | 28283 psi | 5/8" | 14939 psi | 2680 lbs. | 1.188" | 0.807" | 1.313" | €95.44 | |
| A | PLLKE | 89 lbs.-ft. | 23642 psi | 3/4" | 13489 psi | 2680 lbs. | 1.313" | 0.807" | 1.438" | €95.44 | |
| A | PL1CKE | 382 lbs.-ft. | 28573 psi | 1.188" | 17550 psi | 7295 lbs. | 1.938" | 1.102" | 2.063" | €101.04 | |
| A | PL1FKE | 443 lbs.-ft. | 24802 psi | 1 3/8" | 15954 psi | 7295 lbs. | 2 1/8" | 1.102" | 2 1/4" | €106.66 | |
| A | PL1GKE | 522 lbs.-ft. | 23932 psi | 1.438" | 14794 psi | 8234 lbs. | 2.313" | 1.26" | 2 1/2" | €112.25 | |
| B | PL1JKE | 738 lbs.-ft. | 26397 psi | 1 5/8" | 17115 psi | 10294 lbs. | 2 1/2" | 1.26" | 2.688" | €129.10 | |
| B | PL1KKE | 766 lbs.-ft. | 25382 psi | 1.688" | 16825 psi | 10294 lbs. | 2.563" | 1.26" | 2 3/4" | €129.10 | |
| B | PL1LKE | 794 lbs.-ft. | 24512 psi | 1 3/4" | 16390 psi | 10294 lbs. | 2 5/8" | 1.26" | 2.813" | €129.10 | |
| B | PL1PKE | 1022 lbs.-ft. | 27413 psi | 1 7/8" | 18710 psi | 12353 lbs. | 2 3/4" | 1.26" | 2.938" | €136.57 | |
| B | PL1RKE | 1143 lbs.-ft. | 28863 psi | 1.938" | 19871 psi | 13382 lbs. | 2.813" | 1.26" | 3" | €136.57 | |
| C | PL2KE | 1180 lbs.-ft. | 27848 psi | 2" | 19435 psi | 13382 lbs. | 2 7/8" | 1.358" | 3.063" | €142.19 | |
| B | PL2BKE | 1351 lbs.-ft. | 28283 psi | 2 1/8" | 20016 psi | 14410 lbs. | 3" | 1.358" | 3.188" | €142.19 | |
| B | PL2CKE | 1390 lbs.-ft. | 27413 psi | 2.188" | 19580 psi | 14410 lbs. | 3.063" | 1.358" | 3 1/4" | €149.67 | |
| B | PL2DKE | 1430 lbs.-ft. | 26687 psi | 2 1/4" | 19290 psi | 14410 lbs. | 3 1/8" | 1.358" | 3.313" | €149.67 | |
| B | PL2FKE | 1618 lbs.-ft. | 27123 psi | 2 3/8" | 19871 psi | 15439 lbs. | 3 1/4" | 1.358" | 3.438" | €149.67 | |
| B | PL2GKE | 1660 lbs.-ft. | 26397 psi | 2.438" | 19435 psi | 15439 lbs. | 3.313" | 1.358" | 3 1/2" | €157.16 | |
| B | PL2HKE | 1702 lbs.-ft. | 25817 psi | 2 1/2" | 19145 psi | 15439 lbs. | 3 3/4" | 1.358" | 3.563" | €157.16 | |
| B | PL2JKE | 1788 lbs.-ft. | 24512 psi | 2 5/8" | 18420 psi | 15439 lbs. | 3 1/2" | 1.358" | 3.688" | €202.57 | |
| B | PL2KKE | 2706 lbs.-ft. | 30603 psi | 2.688" | 22336 psi | 22822 lbs. | 3 3/4" | 1.594" | 3.938" | €198.09 | |
| B | PL2LKE | 2769 lbs.-ft. | 29878 psi | 2 3/4" | 21611 psi | 22822 lbs. | 3.813" | 1.594" | 4" | €198.09 | |
| B | PL2RKE | 2958 lbs.-ft. | 27993 psi | 2.938" | 20596 psi | 22822 lbs. | 4" | 1.594" | 4.188" | €209.56 | |
| C | PL3KE | 3020 lbs.-ft. | 27413 psi | 3" | 20306 psi | 22822 lbs. | 4.063" | 1.594" | 4.188" | €214.46 | |
| B | PL3FKE | 3964 lbs.-ft. | 28428 psi | 3 3/8" | 21611 psi | 26628 lbs. | 4.438" | 1.634" | 4 5/8" | €222.66 | |
| B | PL3GKE | 4038 lbs.-ft. | 27848 psi | 3.438" | 21321 psi | 26628 lbs. | 4 1/2" | 1.634" | 4.688" | €230.84 | |
| B | PL3HKE | 6528 lbs.-ft. | 33069 psi | 3 1/2" | 24367 psi | 42278 lbs. | 4 3/4" | 2.126" | 5" | €230.84 | |
| B | PL3LKE | 6994 lbs.-ft. | 30749 psi | 3 3/4" | 22771 psi | 42278 lbs. | 5.063" | 2.126" | 5 1/4" | €250.49 | |
| B | PL3RKE | 7344 lbs.-ft. | 29298 psi | 3.938" | 22046 psi | 42278 lbs. | 5 1/4" | 2.126" | 5 1/2" | €279.94 | |
| C | PL4KE | 7460 lbs.-ft. | 28863 psi | 4" | 21756 psi | 42278 lbs. | 5.313" | 2.126" | 5 1/2" | €297.96 |
