SQUARE D PowerPact JJA Series Molded Case Circuit Breakers
Filter
A
B
C| Style | Model | Height | Amps | Depth | Line Rated Amps | Breaking Capacity | Awg Gauge | Returnability | Component Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | JJA36200SN | - | 200A | - | - | - | - | - | - | - | RFQ
|
| A | JJA36250U31X | 7 1/2" | 250A | 3.4" | 250A | 100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 18 kA 250V DC UL 489 | 3/0 AWG to 350 kcmil | Yes | Circuit Breaker | €6,110.60 | |
| A | JJA36250U43X | 7 1/2" | 250A | 3.4" | 250A | 100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489 | 3/0 AWG to 350 kcmil | Yes | Circuit Breaker | €6,110.60 | |
| B | JJA36150 | 7 1/2" | - | 3.4" | 150A | 100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489 | 4 AWG to 4/0 AWG | Yes | Circuit Breaker | €2,715.80 | |
| A | JJA36225SA | 7 1/2" | 225A | 3.4" | 225A | 100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489 | 3/0 AWG to 350 kcmil | No | Motor Circuit Protector | €3,857.76 | |
| A | JJA36200SA | 7 1/2" | 200A | 3.4" | 200A | 100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489 | 3/0 AWG to 350 kcmil | No | Circuit Breaker | €3,857.76 | |
| B | JJA36225 | 7 1/2" | 225A | 3.4" | 225A | 100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489 | 3/0 AWG to 350 kcmil | Yes | Circuit Breaker | €2,715.80 | |
| A | JJA36250U33X | 7 1/2" | 250A | 3.4" | 250A | 100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489 | 3/0 AWG to 350 kcmil | Yes | Circuit Breaker | €6,110.60 | |
| B | JJA36250 | 7 1/2" | 250A | 3.4" | 250A | 100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489 | 3/0 AWG to 350 kcmil | Yes | Circuit Breaker | €3,163.28 | |
| A | JJA36200YP | 7 1/2" | 200A | 3.4" | 200A | 100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489 | 3/0 AWG to 350 kcmil | No | Circuit Breaker | €3,703.41 | |

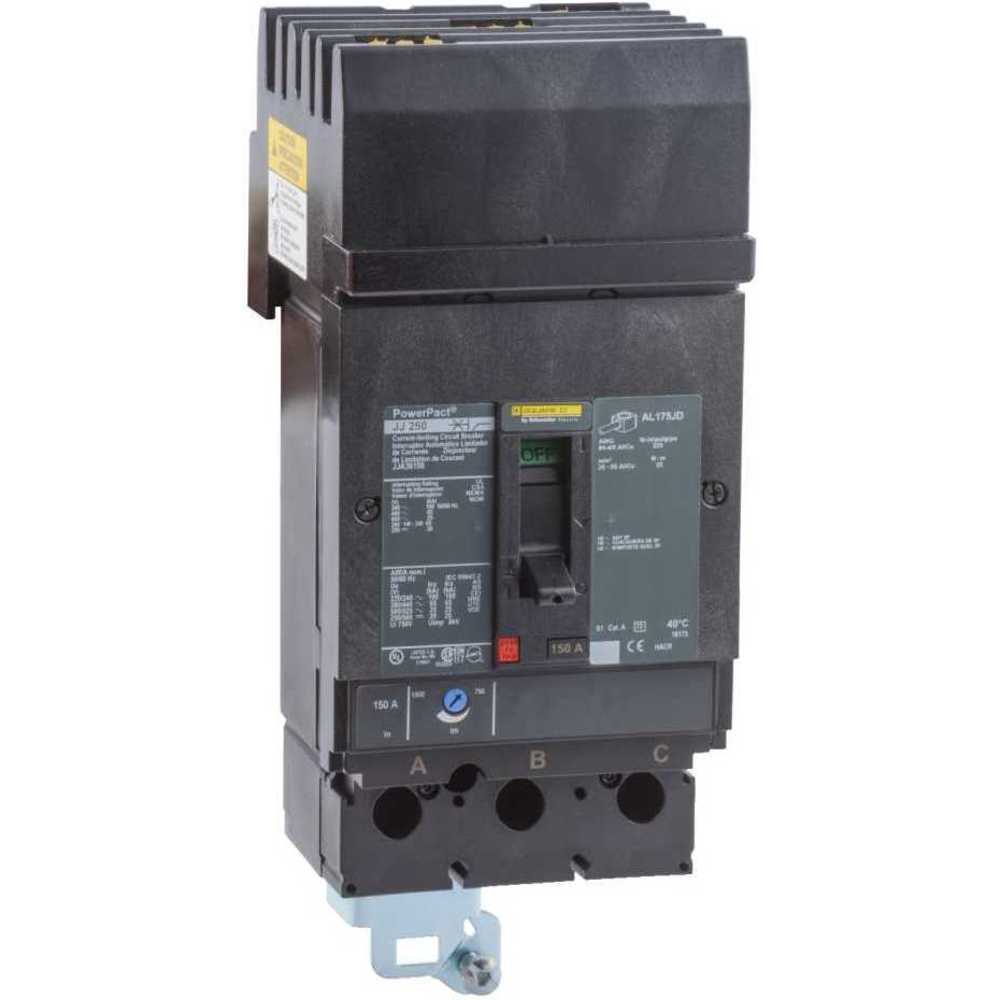

| C | JJA36175 | 7 1/2" | 175A | 3.4" | 175A | 100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489 | 4 AWG to 4/0 AWG | Yes | Circuit Breaker | €2,715.80 | |
| A | JJA36250U44X | 7 1/2" | 250A | 3.4" | 250A | 100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489 | 3/0 AWG to 350 kcmil | No | Circuit Breaker | €7,406.75 | |
| B | JJA36200 | 7.52" | 200A | 3.39" | 200A | 100 kA 240V AC 50/60 Hz UL 489, 65 kA 480V AC 50/60 Hz UL 489, 25 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489 | 3/0 AWG to 350 kcmil | Yes | Circuit Breaker | €2,715.80 |
