MERSEN FERRAZ Protistor Fuses, 850 to 1250VAC/1300VAC
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1| Style | Model | Amps | Connection/terminal Type | Connection/terminal Material | Ac Max. I R Breaking Capacity I1 | Rated Voltage Ac Ul | Power Dissipation @ Rated Amps Value | Clearing I2t @ Rated Voltage | Rated Voltage Ac Iec | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | N301036 | 280A | Flush Ends | Brass | 126 kA | 1300V | 72 W | 85 sq. kA sec. | 1250V | 1 | €912.43 | |
| B | Q300670 | 280A | Slotted Blades | Copper | 126 kA | 1300V | 72 W | 85 sq. kA sec. | 1250V | 1 | €843.17 | |
| C | P300554 | 280A | Din 110 Blades | Copper | 126 kA | 1300V | 72 W | 85 sq. kA sec. | 1250V | 3 | €2,806.37 | |
| D | R300671 | 315A | Slotted Blades | Copper | 126 kA | 1300V | 76 W | 125 sq. kA sec. | 1250V | 1 | €843.17 | |
| E | Z300494 | 315A | Flush Ends | Brass | 126 kA | 1300V | 76 W | 125 sq. kA sec. | 1250V | 3 | €3,286.56 | |
| F | Q300555 | 315A | Din 110 Blades | Copper | 126 kA | 1300V | 76 W | 125 sq. kA sec. | 1250V | 3 | €2,658.66 | |
| G | P301037 | 315A | Flush Ends | Brass | 126 kA | 1300V | 76 W | 125 sq. kA sec. | 1250V | 1 | €1,011.28 | |
| H | A300495 | 350A | Flush Ends | Brass | 126 kA | 1300V | 77 W | 170 sq. kA sec. | 1250V | 3 | €3,286.56 | |
| I | R300556 | 350A | Din 110 Blades | Copper | 126 kA | 1300V | 77 W | 170 sq. kA sec. | 1250V | 3 | €2,658.66 | |
| J | Q301038 | 350A | Flush Ends | Brass | 126 kA | 1300V | 77 W | 170 sq. kA sec. | 1250V | 1 | €912.43 | |
| K | S300672 | 350A | Slotted Blades | Copper | 126 kA | 1300V | 77 W | 170 sq. kA sec. | 1250V | 1 | €843.17 | |
| L | T300673 | 400A | Slotted Blades | Copper | 126 kA | 1300V | 80 W | 270 sq. kA sec. | 1250V | 1 | €843.17 | |
| M | M300621 | 400A | Open Slot Blades | Copper | 126 kA | 1300V | 80 W | 270 sq. kA sec. | 1250V | 1 | €975.38 | |
| N | S300557 | 400A | Din 110 Blades | Copper | 126 kA | 1300V | 80 W | 270 sq. kA sec. | 1250V | 3 | €2,658.66 | |
| O | R301039 | 400A | Flush Ends | Brass | 126 kA | 1300V | 80 W | 270 sq. kA sec. | 1250V | 1 | €912.43 | |
| P | B300496 | 400A | Flush Ends | Brass | 126 kA | 1300V | 80 W | 270 sq. kA sec. | 1250V | 3 | €3,286.56 | |
| Q | T300558 | 450A | Din 110 Blades | Copper | 126 kA | 1300V | 89 W | 360 sq. kA sec. | 1250V | 3 | €2,855.00 | |
| R | S301040 | 450A | Flush Ends | Brass | 126 kA | 1300V | 87 W | 360 sq. kA sec. | 1250V | 1 | €1,062.50 | |
| S | V300674 | 450A | Slotted Blades | Copper | 126 kA | 1300V | 89 W | 360 sq. kA sec. | 1250V | 1 | €866.26 | |
| T | N300622 | 450A | Open Slot Blades | Copper | 126 kA | 1300V | 89 W | 360 sq. kA sec. | 1250V | 3 | €3,992.39 | |
| U | C300497 | 450A | Flush Ends | Brass | 126 kA | 1300V | 89 W | 360 sq. kA sec. | 1250V | 3 | €3,410.35 | |
| V | W300675 | 500A | Slotted Blades | Copper | 126 kA | 1300V | 98 W | 465 sq. kA sec. | 1250V | 3 | €2,598.79 | |
| W | D300498 | 500A | Flush Ends | Brass | 126 kA | 1300V | 98 W | 465 sq. kA sec. | 1250V | 3 | €3,410.35 | |
| X | T301041 | 500A | Flush Ends | Brass | 126 kA | 1300V | 94 W | 465 sq. kA sec. | 1250V | 1 | €958.64 | |
| Y | V300559 | 500A | Din 110 Blades | Copper | 126 kA | 1300V | 98 W | 465 sq. kA sec. | 1250V | 3 | €2,855.00 | |
| Z | P300623 | 500A | Open Slot Blades | Copper | 126 kA | 1300V | 98 W | 465 sq. kA sec. | 1250V | 1 | €975.38 | |
| A1 | W300560 | 550A | Din 110 Blades | Copper | 126 kA | 1300V | 120 W | 550 sq. kA sec. | 1250V | 3 | €3,103.65 | |
| B1 | V301042 | 550A | Flush Ends | Brass | 126 kA | 1300V | 110 W | 550 sq. kA sec. | 1250V | 1 | €956.09 | |

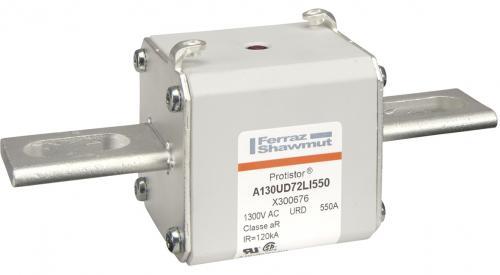

| C1 | X300676 | 550A | Slotted Blades | Copper | 126 kA | 1300V | 120 W | 550 sq. kA sec. | 1250V | 1 | €1,002.17 | |
| D1 | E300499 | 550A | Flush Ends | Brass | 126 kA | 1300V | 110 W | 550 sq. kA sec. | 1250V | 3 | €3,601.07 | |
| E1 | Y300677 | 630A | Slotted Blades | Copper | 150 kA | 1200V | 125 W | 690 sq. kA sec. | 1100V | 1 | €1,002.17 | |
| F1 | R300625 | 630A | Open Slot Blades | Copper | 150 kA | 1200V | 125 W | 690 sq. kA sec. | 1100V | 1 | €1,257.70 | |
| G1 | X300561 | 630A | Din 110 Blades | Copper | 150 kA | 1200V | 125 W | 690 sq. kA sec. | 1100V | 3 | €3,103.65 | |
| H1 | F300500 | 630A | Flush Ends | Brass | 126 kA | 1300V | 113 W | 860 sq. kA sec. | 1250V | 1 | €1,200.36 | |
| I1 | W301043 | 630A | Flush Ends | Brass | 126 kA | 1300V | 113 W | 860 sq. kA sec. | 1250V | 3 | €3,227.04 | |
| J1 | X301044 | 700A | Flush Ends | Brass | 150 kA | 1200V | 140 W | 920 sq. kA sec. | 1100V | 1 | €1,075.68 | |
| K1 | S300626 | 700A | Open Slot Blades | Copper | 167 kA | 1100V | 140 W | 815 sq. kA sec. | 1000V | 1 | €1,025.68 | |
| L1 | Z300678 | 700A | Slotted Blades | Copper | 167 kA | 1100V | 140 W | 815 sq. kA sec. | 1000V | 1 | €1,002.17 | |
| M1 | Y300562 | 700A | Din 110 Blades | Copper | 167 kA | 1100V | 140 W | 815 sq. kA sec. | 1000V | 3 | €3,487.65 | |
| N1 | G300501 | 700A | Flush Ends | Brass | 150 kA | 1200V | 140 W | 920 sq. kA sec. | 1100V | 3 | €3,865.51 | |
| O1 | A300679 | 800A | Slotted Blades | Copper | 167 kA | 1100V | 146 W | 1240 sq. kA sec. | 1000V | 1 | €1,077.91 | |
| P1 | Y301045 | 800A | Flush Ends | Brass | 150 kA | 1200V | 146 W | 1400 sq. kA sec. | 1100V | 1 | €1,075.68 | |
| Q1 | H300502 | 800A | Flush Ends | Brass | 150 kA | 1200V | 146 W | 1400 sq. kA sec. | 1100V | 3 | €3,865.51 | |
| R1 | Z300563 | 800A | Din 110 Blades | Copper | 167 kA | 1100V | 146 W | 1240 sq. kA sec. | 1000V | 3 | €3,487.65 | |
| S1 | G300869 | 900A | Flush Ends | Brass | 167 kA | 1100V | 152 W | 1800 sq. kA sec. | 1000V | 1 | €1,461.60 | |
| T1 | T301294 | 1000A | Flush Ends | Brass | 100 kA | 900V AC | 136 W | 2150 sq. kA sec. | 850V | 3 | €4,604.01 |
