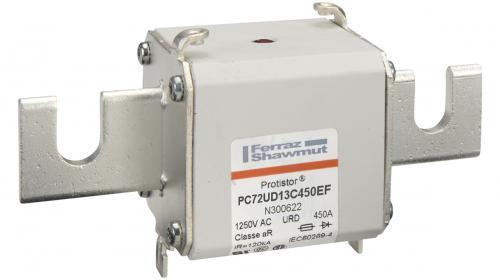

MERSEN FERRAZ N300622 PC72UD13C450EF Fuse Link, 1250V, 450A
Get it by Tuesday, Dec 23
€3,992.39 /pkg. of 3
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Link |
| Ac Max I.r./breaking Capacity I1 | 126 kA |
| Ac/dc | AC |
| Ampere Rating | 450A |
| Body/insulating Material | Ceramic |
| Clearing I2t At Rated Voltage | 360 sq. kA sec. |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Open Slot Blades |
| Finish | Silver Plated |
| Fuse Size | 72 |
| Height | 63 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 149.4 mm |
| Melting I2t | 44.2 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation At Rated Current Value | 89 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 1250V |
| Rated Voltage Ac Ul | 1300V |
| Speed Characteristic | AR |
| Width | 59 mm |
Shipping Info:
| Ship weight (kg) | 2.26 |
| Ship height (cm) | 8 |
| Ship length (cm) | 20.5 |
| Ship width (cm) | 15.7 |
Product Variants
| Product | Model | Amps | Dc Voltage Rating | Visual Indication | Body Style | Mounting | Height | Fuse Size | Body Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A300495 | - | - | - | - | Bolted | 63 mm | 72 | - | 3 | €3,286.56 | |
 |
A300679 | - | - | - | - | Bolted | 63 mm | 72 | - | 1 | €1,077.91 | |
 |
B300496 | - | - | - | - | Bolted | 63 mm | 72 | - | 3 | €3,286.56 | |
 |
C300497 | - | - | - | - | Bolted | 63 mm | 72 | - | 3 | €3,410.35 | |
 |
D300498 | - | - | - | - | Bolted | 63 mm | 72 | - | 3 | €3,410.35 | |
 |
E300499 | - | - | - | - | Bolted | 63 mm | 72 | - | 3 | €3,601.07 | |
 |
F300500 | - | - | - | - | Bolted | 63 mm | 72 | - | 1 | €1,200.36 |
