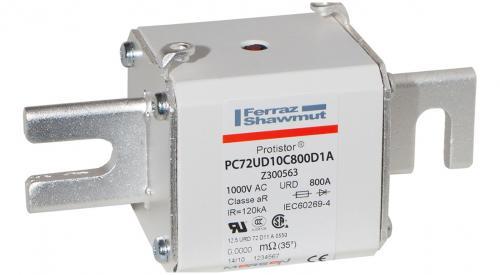

MERSEN FERRAZ Z300563 PC72UD10C800D1A Fuse, 800A
Get it by Monday, Aug 24
€3,487.65 /pkg. of 3
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max. I R Breaking Capacity I1 | 167 kA |
| Ac/dc | AC |
| Amps | 800A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 1240 sq. kA sec. |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Din 110 Blades |
| Finish | Silver Plated |
| Fuse Size | 72 |
| Height | 63 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 133.4 mm |
| Melting I2t | 215.1 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation @ Rated Amps Value | 146 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 1000V |
| Rated Voltage Ac Ul | 1100V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
| Width | 59 mm |
Shipping Info:
| Ship weight (kg) | 2.09 |
| Ship height (cm) | 7.19 |
| Ship length (cm) | 19.41 |
| Ship width (cm) | 14.2 |
Product Variants
| Product | Model | Amps | Connection/terminal Type | Connection/terminal Material | Ac Max. I R Breaking Capacity I1 | Rated Voltage Ac Ul | Power Dissipation @ Rated Amps Value | Clearing I2t @ Rated Voltage | Rated Voltage Ac Iec | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A300495 | 350A | Flush Ends | Brass | 126 kA | 1300V | 77 W | 170 sq. kA sec. | 1250V | 3 | €3,286.56 | |
 |
A300679 | 800A | Slotted Blades | Copper | 167 kA | 1100V | 146 W | 1240 sq. kA sec. | 1000V | 1 | €1,077.91 | |
 |
B300496 | 400A | Flush Ends | Brass | 126 kA | 1300V | 80 W | 270 sq. kA sec. | 1250V | 3 | €3,286.56 | |
 |
C300497 | 450A | Flush Ends | Brass | 126 kA | 1300V | 89 W | 360 sq. kA sec. | 1250V | 3 | €3,410.35 | |
 |
D300498 | 500A | Flush Ends | Brass | 126 kA | 1300V | 98 W | 465 sq. kA sec. | 1250V | 3 | €3,410.35 | |
 |
E300499 | 550A | Flush Ends | Brass | 126 kA | 1300V | 110 W | 550 sq. kA sec. | 1250V | 3 | €3,601.07 | |
 |
F300500 | 630A | Flush Ends | Brass | 126 kA | 1300V | 113 W | 860 sq. kA sec. | 1250V | 1 | €1,200.36 |
