MERSEN FERRAZ Protistor fuses, 600VAC to 690VAC
Filter
A
B
C
D
E
F
G| Style | Model | Amps | Power Dissipation @ Rated Amps Value | Clearing I2t @ Rated Voltage | Rated Voltage Ac Iec | Melting I2t | Mounting | Body/insulating Material | Connection/terminal Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | A076820 | 63A | 22 W | 1.84 sq. kA sec. | 690V | 0.405 sq. kA sec. | Clip | Ceramic | Ferrule | 10 | €2,489.65 | |
| B | B076821 | 80A | 24.6 W | 3.75 sq. kA sec. | 690V | 0.86 sq. kA sec. | Clip | Ceramic | Ferrule | 1 | €229.59 | |
| C | C076822 | 100A | 27 W | 6.8 sq. kA sec. | 690V | 1.62 sq. kA sec. | Clip | Ceramic | Ferrule | 10 | €2,295.88 | |

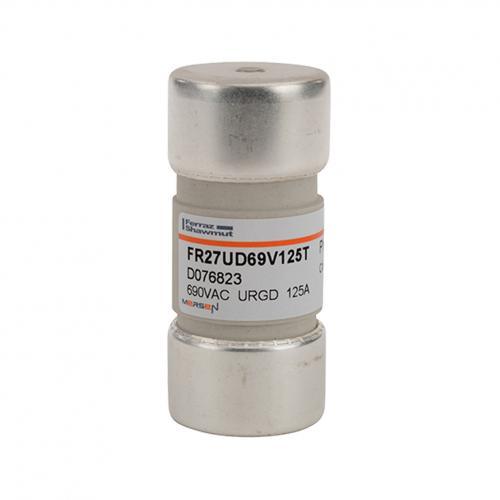

| D | D076823 | 125A | 29.9 W | 13.6 sq. kA sec. | 690V | 3.425 sq. kA sec. | Clip | Ceramic | Ferrule | 10 | €2,295.88 | |

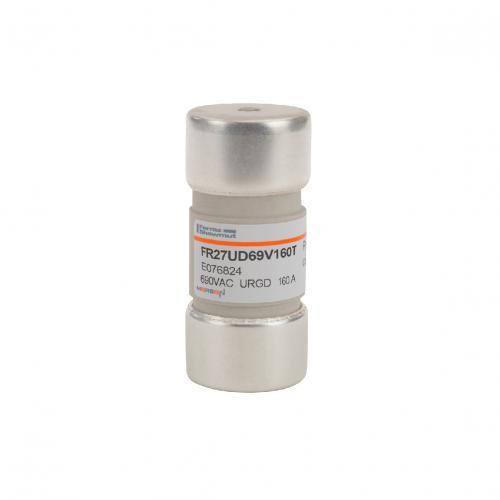

| E | E076824 | 160A | 32.5 W | 24.6 sq. kA sec. | 690V | 6.48 sq. kA sec. | Clip | Ceramic | Ferrule | 10 | €2,766.33 | |
| F | F076825 | 200A | 35.7 W | 61.5 sq. kA sec. | 690V | 13.7 sq. kA sec. | Clip | Ceramic | Ferrule | 10 | €2,851.47 | |
| G | W076264 | 250A | 40 W | 107 sq. kA sec. | 600V | 29.6 sq. kA sec. | Clip | Ceramic | Ferrule | 10 | €4,782.22 |
