MERSEN FERRAZ Protistor Fuses, 600 to 1250VAC/1300VAC

Filter

Style	Model	Amps	Mounting	Connection/terminal Type	Connection/terminal Material	Ac Max. I R Breaking Capacity I1	Rated Voltage Ac Ul	Power Dissipation @ Rated Amps Value	Clearing I2t @ Rated Voltage	Price
A	A300564	315A	Bolted	Din 110 Blades	Copper	126 kA	1300V	84 W	95 sq. kA sec.	€975.60
B	Z301046	315A	Bolted	Flush Ends	Brass	126 kA	1300V	84 W	95 sq. kA sec.	€1,064.00
C	J300503	315A	Bolted	Flush Ends	Brass	126 kA	1300V	84 W	95 sq. kA sec.	€1,207.05
B	B300680	315A	Bolted	Slotted Blades	Copper	126 kA	1300V	84 W	95 sq. kA sec.	€967.70
B	C300681	350A	Bolted	Slotted Blades	Copper	126 kA	1300V	86 W	140 sq. kA sec.	€967.70
D	B300565	350A	Bolted	Din 110 Blades	Copper	126 kA	1300V	86 W	140 sq. kA sec.	€1,081.29
E	K300504	350A	Bolted	Flush Ends	Brass	126 kA	1300V	86 W	140 sq. kA sec.	€1,207.05
B	A301047	350A	Bolted	Flush Ends	Brass	126 kA	1300V	86 W	140 sq. kA sec.	€1,064.00
F	C300566	400A	Bolted	Din 110 Blades	Copper	126 kA	1300V	93 W	205 sq. kA sec.	€975.60

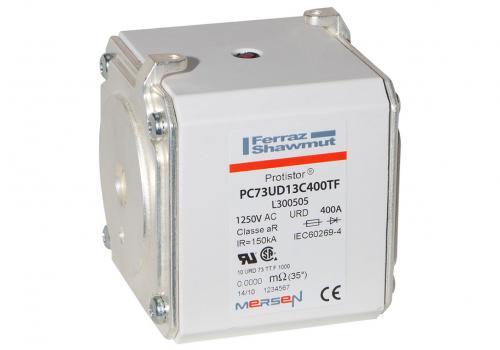

G	L300505	400A	Bolted	Flush Ends	Brass	126 kA	1300V	93 W	205 sq. kA sec.	€1,207.05
B	B301048	400A	Bolted	Flush Ends	Brass	126 kA	1300V	93 W	205 sq. kA sec.	€1,064.00
B	D300682	400A	Bolted	Slotted Blades	Copper	126 kA	1300V	93 W	205 sq. kA sec.	€967.70
H	D300567	450A	Bolted	Din 110 Blades	Copper	126 kA	1300V	100 W	290 sq. kA sec.	€1,011.46
B	C301049	450A	Bolted	Flush Ends	Brass	126 kA	1300V	99 W	290 sq. kA sec.	€1,064.00
I	M300506	450A	Bolted	Flush Ends	Brass	126 kA	1300V	99 W	290 sq. kA sec.	€1,207.05
B	E300683	450A	Bolted	Slotted Blades	Copper	126 kA	1300V	100 W	290 sq. kA sec.	€1,000.27
J	E300568	500A	Bolted	Din 110 Blades	Copper	126 kA	1300V	112 W	360 sq. kA sec.	€1,011.46
K	Z300632	500A	Bolted	Open Slot Blades	Copper	126 kA	1300V	112 W	360 sq. kA sec.	€1,347.86
L	N300507	500A	Bolted	Flush Ends	Brass	126 kA	1300V	112 W	360 sq. kA sec.	€1,207.05
B	F300684	500A	Bolted	Slotted Blades	Copper	126 kA	1300V	112 W	360 sq. kA sec.	€1,000.27
M	F300569	550A	Bolted	Din 110 Blades	Copper	126 kA	1300V	120 W	465 sq. kA sec.	€1,103.03
B	E301051	550A	Bolted	Flush Ends	Brass	126 kA	1300V	116 W	465 sq. kA sec.	€1,077.75
B	G300685	550A	Bolted	Slotted Blades	Copper	126 kA	1300V	120 W	465 sq. kA sec.	€1,001.68
N	P300508	550A	Bolted	Flush Ends	Brass	126 kA	1300V	116 W	465 sq. kA sec.	€1,241.05
O	A300633	550A	Bolted	Open Slot Blades	Copper	126 kA	1300V	120 W	465 sq. kA sec.	€1,426.40
B	F301052	630A	Bolted	Flush Ends	Brass	126 kA	1300V	125 W	680 sq. kA sec.	€1,077.75
B	D300843	630A	Clip	Plain Blades	Copper	126 kA	1300V	132 W	680 sq. kA sec.	€1,306.89
B	H300686	630A	Bolted	Slotted Blades	Copper	126 kA	1300V	132 W	680 sq. kA sec.	€1,001.68
P	G300570	630A	Bolted	Din 110 Blades	Copper	126 kA	1300V	132 W	680 sq. kA sec.	€1,103.03
Q	Q300509	630A	Bolted	Flush Ends	Brass	126 kA	1300V	125 W	680 sq. kA sec.	€1,241.05
B	J300687	700A	Bolted	Slotted Blades	Copper	150 kA	1300V	146 W	900 sq. kA sec.	€1,001.68
B	G301053	700A	Bolted	Flush Ends	Brass	126 kA	1300V	135 W	900 sq. kA sec.	€1,158.97
R	R300510	700A	Bolted	Flush Ends	Brass	126 kA	1300V	135 W	900 sq. kA sec.	€1,241.05

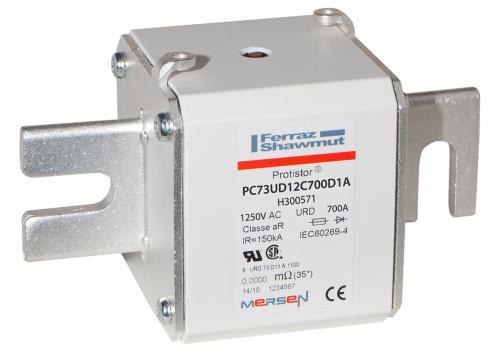

S	H300571	700A	Bolted	Din 110 Blades	Copper	150 kA	1300V	146 W	900 sq. kA sec.	€1,176.47
B	H301054	800A	Bolted	Flush Ends	Brass	150 kA	1300V	136 W	1530 sq. kA sec.	€1,158.97
B	K300688	800A	Bolted	Slotted Blades	Copper	150 kA	1200V	148 W	1230 sq. kA sec.	€1,001.68
T	S300511	800A	Bolted	Flush Ends	Brass	126 kA	1300V	136 W	1530 sq. kA sec.	€1,241.05
B	Z301966	800A	Clip	Plain Blades	Copper	150 kA	1200V	148 W	1230 sq. kA sec.	€1,109.24
U	J300572	800A	Bolted	Din 110 Blades	Copper	150 kA	1200V	148 W	1230 sq. kA sec.	€1,225.63
V	K300573	900A	Bolted	Din 110 Blades	Copper	167 kA	1100V	170 W	1440 sq. kA sec.	€1,506.46
W	T300512	900A	Bolted	Flush Ends	Brass	126 kA	1300V	151 W	1870 sq. kA sec.	€1,525.16
B	L300689	900A	Bolted	Slotted Blades	Copper	167 kA	1100V	170 W	1440 sq. kA sec.	€1,129.72
X	E300637	900A	Bolted	Open Slot Blades	Copper	167 kA	1100V	170 W	1440 sq. kA sec.	€1,606.33
B	M300690	1000A	Bolted	Slotted Blades	Copper	150 kA	1000V	174 W	1920 sq. kA sec.	€1,430.39
Y	V300513	1000A	Bolted	Flush Ends	Brass	167 kA	1100V	152 W	2130 sq. kA sec.	€1,525.16
B	K301056	1000A	Bolted	Flush Ends	Brass	167 kA	1100V	152 W	2130 sq. kA sec.	€1,437.53
Z	L300574	1000A	Bolted	Din 110 Blades	Copper	150 kA	1000V	174 W	1920 sq. kA sec.	€1,509.59
A1	M300575	1100A	Bolted	Din 110 Blades	Copper	150 kA	1000V	208 W	2280 sq. kA sec.	€1,509.59
B	L301057	1100A	Bolted	Flush Ends	Brass	150 kA	1000V	168 W	2430 sq. kA sec.	€1,437.53
B1	W300514	1100A	Bolted	Flush Ends	Brass	150 kA	1000V	168 W	2430 sq. kA sec.	€1,525.16
B	N300691	1100A	Bolted	Slotted Blades	Copper	151 kA	1000V	208 W	2280 sq. kA sec.	€1,430.39
C1	T300696	1250A	Bolted	Flush Ends	Brass	150 kA	1000V	186 W	3080 sq. kA sec.	€1,950.55
B	M301058	1250A	Bolted	Flush Ends	Brass	150 kA	1000V	186 W	3080 sq. kA sec.	€1,847.62
B	J301193	1250A	Bolted	Slotted Blades	Copper	151 kA	1000V	234 W	3080 sq. kA sec.	€1,847.42
B	N301059	1400A	Bolted	Flush Ends	Brass	150 kA	900V AC	210 W	3700 sq. kA sec.	€1,847.62
D1	K301194	1400A	Bolted	Slotted Blades	Copper	126 kA	900V AC	260 W	3700 sq. kA sec.	€1,847.42
B	S300718	1400A	Bolted	Flush Ends	Brass	150 kA	900V AC	210 W	3700 sq. kA sec.	€1,950.55
E1	B301301	1600A	Bolted	Flush Ends	Brass	150 kA	700V	203 W	5740 sq. kA sec.	€1,950.55
B	Q300877	1600A	Bolted	Flush Ends	Brass	200 kA	700V	203 W	5740 sq. kA sec.	€1,847.62
F1	C301302	1800A	Bolted	Flush Ends	Brass	200 kA	650V	206 W	7150 sq. kA sec.	€1,950.55
B	R300878	1800A	Bolted	Flush Ends	Brass	200 kA	650V	206 W	7150 sq. kA sec.	€1,847.62
