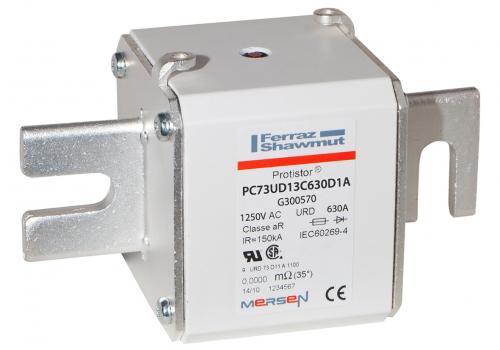

MERSEN FERRAZ G300570 PC73UD13C630D1A Fuse, 630A
Get it by Tuesday, Sep 1
€1,103.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac/dc | AC |
| Amps | 630A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 680 sq. kA sec. |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Din 110 Blades |
| Finish | Silver Plated |
| Fuse Size | 73 |
| Height | 78.5 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 133.4 mm |
| Melting I2t | 84 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation @ Rated Amps Value | 132 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 1250V |
| Rated Voltage Ac Ul | 1300V |
| Speed Characteristic | AR |
| Width | 73 mm |
Shipping Info:
| Ship weight (kg) | 3.33 |
| Ship height (cm) | 8.99 |
| Ship length (cm) | 24.99 |
| Ship width (cm) | 15.01 |
Product Variants
| Product | Model | Amps | Mounting | Connection/terminal Type | Connection/terminal Material | Ac Max. I R Breaking Capacity I1 | Rated Voltage Ac Ul | Power Dissipation @ Rated Amps Value | Clearing I2t @ Rated Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A300564 | 315A | Bolted | Din 110 Blades | Copper | 126 kA | 1300V | 84 W | 95 sq. kA sec. | €975.60 | |
 |
A300633 | 550A | Bolted | Open Slot Blades | Copper | 126 kA | 1300V | 120 W | 465 sq. kA sec. | €1,426.40 | |
 |
A301047 | 350A | Bolted | Flush Ends | Brass | 126 kA | 1300V | 86 W | 140 sq. kA sec. | €1,064.00 | |
 |
B300565 | 350A | Bolted | Din 110 Blades | Copper | 126 kA | 1300V | 86 W | 140 sq. kA sec. | €1,081.29 | |
|
B300680 | 315A | Bolted | Slotted Blades | Copper | 126 kA | 1300V | 84 W | 95 sq. kA sec. | €967.70 | |
|
B301048 | 400A | Bolted | Flush Ends | Brass | 126 kA | 1300V | 93 W | 205 sq. kA sec. | €1,064.00 | |
 |
B301301 | 1600A | Bolted | Flush Ends | Brass | 150 kA | 700V | 203 W | 5740 sq. kA sec. | €1,950.55 |
