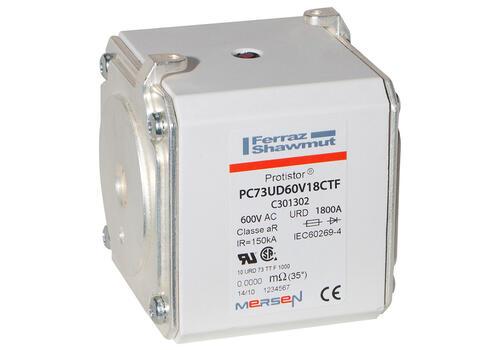

MERSEN FERRAZ C301302 PC73UD60V18CTF Fuse, 1800A
Get it by Monday, Aug 24
€1,950.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max. I R Breaking Capacity I1 | 200 kA |
| Ac/dc | AC |
| Amps | 1800A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 7150 sq. kA sec. |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Flush Ends |
| Finish | Silver Plated |
| Fuse Size | 73 |
| Height | 78.5 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 74 mm |
| Melting I2t | 2040 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation @ Rated Amps Value | 206 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 600V |
| Rated Voltage Ac Ul | 650V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
| Width | 73 mm |
Shipping Info:
| Ship weight (kg) | 1.21 |
| Ship height (cm) | 7.49 |
| Ship length (cm) | 12.5 |
| Ship width (cm) | 11 |
Product Variants
| Product | Model | Amps | Mounting | Connection/terminal Type | Connection/terminal Material | Ac Max. I R Breaking Capacity I1 | Rated Voltage Ac Ul | Power Dissipation @ Rated Amps Value | Clearing I2t @ Rated Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A300564 | 315A | Bolted | Din 110 Blades | Copper | 126 kA | 1300V | 84 W | 95 sq. kA sec. | €975.60 | |
 |
A300633 | 550A | Bolted | Open Slot Blades | Copper | 126 kA | 1300V | 120 W | 465 sq. kA sec. | €1,426.40 | |
 |
A301047 | 350A | Bolted | Flush Ends | Brass | 126 kA | 1300V | 86 W | 140 sq. kA sec. | €1,064.00 | |
 |
B300565 | 350A | Bolted | Din 110 Blades | Copper | 126 kA | 1300V | 86 W | 140 sq. kA sec. | €1,081.29 | |
|
B300680 | 315A | Bolted | Slotted Blades | Copper | 126 kA | 1300V | 84 W | 95 sq. kA sec. | €967.70 | |
|
B301048 | 400A | Bolted | Flush Ends | Brass | 126 kA | 1300V | 93 W | 205 sq. kA sec. | €1,064.00 | |
 |
B301301 | 1600A | Bolted | Flush Ends | Brass | 150 kA | 700V | 203 W | 5740 sq. kA sec. | €1,950.55 |
