LEGRIS 3009 Series Female Elbows
Filter
A
B
C| Style | Model | Fitting Side A Connection Type | Fitting Side B Connection Type | Fitting Side A Tube Outside Dia. | Fitting Side B Pipe Size | Fitting Thread Size | Specific Fitting Shape | Min. Operating Temp. | Release Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

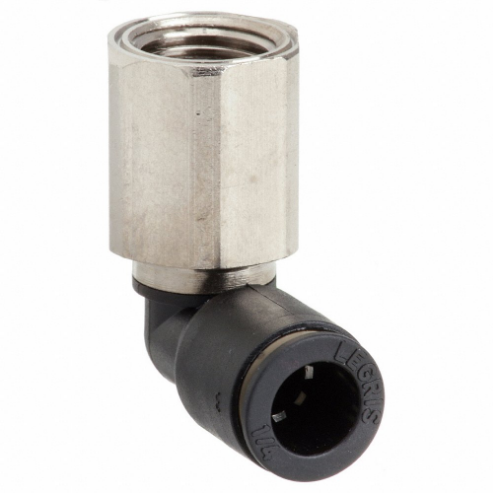

| A | 3009 56 11 | Push-To-Connect | FNPT | 1/4" | 1/8" | 1/8" | Elbow Adapter | 4°F | Button | 10 | €116.99 | |
| B | 3009 08 14 | Push-To-Connect | FNPT | 5/16" | 1/4" | 1/4" | Elbow Adapter | 4°F | Button | 10 | €228.32 | |
| B | 3009 53 11 | Push-To-Connect | FNPT | 1/8" | 1/8" | 1/8" | Elbow Adapter | 4°F | Button | 10 | €169.06 | |
| B | 3009 56 14 | Push-To-Connect | FNPT | 1/4" | 1/4" | 1/4" | Elbow Adapter | 4°F | Button | 10 | €166.79 | |
| B | 3009 62 18 | Push-To-Connect | FNPT | 1/2" | 3/8" | 3/8" | Elbow Adapter | 4°F | Button | 10 | €268.25 | |
| B | 3009 60 14 | Push-To-Connect | FNPT | 3/8" | 1/4" | 1/4" | Elbow Adapter | 4°F | Button | 10 | €206.57 | |
| B | 3009 04 11 | Push-To-Connect | FNPT | 5/32" | 1/8" | 1/8" | Elbow Adapter | 4°F | Button | 10 | €146.23 | |
| C | 3009 04 14 | Push To Connect | FNPT | 5/32" | 1/4" | 1/4" | 90° Elbow | -4°F | Ring | 1 | €18.21 | |
| C | 3009 62 14 | Push To Connect | FNPT | 1/2" | 1/4" | 1/4" | 90° Elbow | -4°F | Ring | 1 | €53.23 | |
| C | 3009 04 20 | Push To Connect | UNF | 5/32" | 3/16" | #10-32 | 90° Elbow | -4°F | Ring | 1 | €33.30 | |
| C | 3009 60 11 | Push To Connect | FNPT | 3/8" | 1/8" | 1/8" | 90° Elbow | -4°F | Ring | 1 | €46.00 | |
| C | 3009 60 22 | Push To Connect | FNPT | 3/8" | 1/2" | 1/2" | 90° Elbow | -4°F | Ring | 1 | €53.85 | |
| C | 3009 56 18 | Push To Connect | FNPT | 1/4" | 3/8" | 3/8" | 90° Elbow | -4°F | Ring | 1 | €41.67 | |
| C | 3009 55 11 | Push To Connect | FNPT | 3/16" | 1/8" | 1/8" | 90° Elbow | -4°F | Ring | 1 | €16.39 | |
| C | 3009 53 14 | Push To Connect | FNPT | 1/8" | 1/4" | 1/4" | 90° Elbow | -4°F | Ring | 1 | €33.87 | |
| C | 3009 08 11 | Push To Connect | FNPT | 8 mm | 1/8" | 1/8" | 90° Elbow | -4°F | Ring | 1 | €20.30 | |
| C | 3009 60 18 | Push To Connect | FNPT | 3/8" | 3/8" | 3/8" | 90° Elbow | -4°F | Ring | 1 | €48.45 | |
| C | 3009 62 22 | Push To Connect | FNPT | 1/2" | 1/2" | 1/2" | 90° Elbow | -4°F | Ring | 1 | €64.78 | |
| C | 3009 56 20 | Push To Connect | UNF | 1/4" | 3/16" | #10-32 | 90° Elbow | -4°F | Ring | 1 | €34.35 | |
| C | 3009 53 20 | Push To Connect | UNF | 1/8" | 3/16" | #10-32 | 90° Elbow | -4°F | Ring | 1 | €38.57 |
