FREE delivery on orders over €150

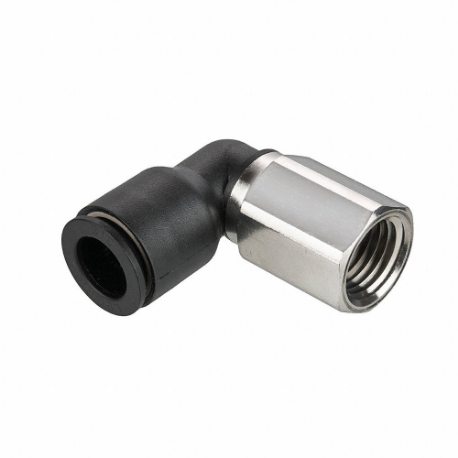

LEGRIS 3009 56 18 Nylon, Push-to-Connect x FNPT, 1/4 Inch Tube OD, 3/8 Inch Pipe Size
Item: CN8FPTModel: 3009 56 18Cross Ref: 791RW0
7 In Stock
Ships within 2 days via
10.00% off
€37.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air, Cutting Fluids, Inert Gases, Vacuum |
| Color | Black |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi Rigid Nylon |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | FNPT |
| Fitting Side B Pipe Size | 3/8" |
| Fitting Thread Size | 3/8" |
| Length | 1.188" |
| Material | Nylon |
| Max. Operating Pressure | 290 psi |
| Max. Operating Temp. | 175°F |
| Minimum Operating Temperature | -4°F |
| Overall Length | 1 3/16" |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | 90° Elbow |
| Sub-brand | Lf3000(R) |
| System Of Measurement | Imperial |
| Thread Size | 3/8" |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Specific Fitting Shape | Fitting Side A Connection Type | Fitting Side B Connection Type | Release Type | Fitting Thread Size | Fitting Side A Tube Outer Diameter | Overall Length | Fitting Side B Pipe Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3009 04 11 | Elbow Adapter | Push-To-Connect | FNPT | Button | 1/8" | 5/32" | 29/32" | 1/8" | 10 | €146.23 | |
| 3009 08 14 | Elbow Adapter | Push-To-Connect | FNPT | Button | 1/4" | 5/16" | 1 9/32" | 1/4" | 10 | €228.32 | |
| 3009 53 11 | Elbow Adapter | Push-To-Connect | FNPT | Button | 1/8" | 1/8" | 9/16" | 1/8" | 10 | €169.06 | |
| 3009 56 11 | Elbow Adapter | Push-To-Connect | FNPT | Button | 1/8" | 1/4" | 1 1/32" | 1/8" | 10 | €116.99 | |
| 3009 56 14 | Elbow Adapter | Push-To-Connect | FNPT | Button | 1/4" | 1/4" | 1 3/16" | 1/4" | 10 | €166.79 | |
| 3009 60 14 | Elbow Adapter | Push-To-Connect | FNPT | Button | 1/4" | 3/8" | 1 17/32" | 1/4" | 10 | €206.57 | |
| 3009 62 18 | Elbow Adapter | Push-To-Connect | FNPT | Button | 3/8" | 1/2" | 1 7/8" | 3/8" | 10 | €268.25 |
