LEESON Globetrotter General Purpose Motors, NEMA Premium Efficiency, Totally Enclosed, C Face Footed
Marathon Globetrotter general-purpose motors convert AC power into torque to drive mechanical loads. They are designed for HVAC, cooling tower, packaging equipment, conveyor, extruder, pumping, machine tool and gear reducer applications.
Filter
A
B
C
D| Style | Model | Nameplate Rpm | Hp | Full Load Amps | Full Load Amps @ 50hz | Frame | Frame Material | Efficiency | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 145TTFR6058 | 1755 RPM | 1 1/2 hp | 4.6/2.3A | 4.6/2.3A | 145TC | Rolled Steel | 86.5% | 14 3/8" | €472.16 | |

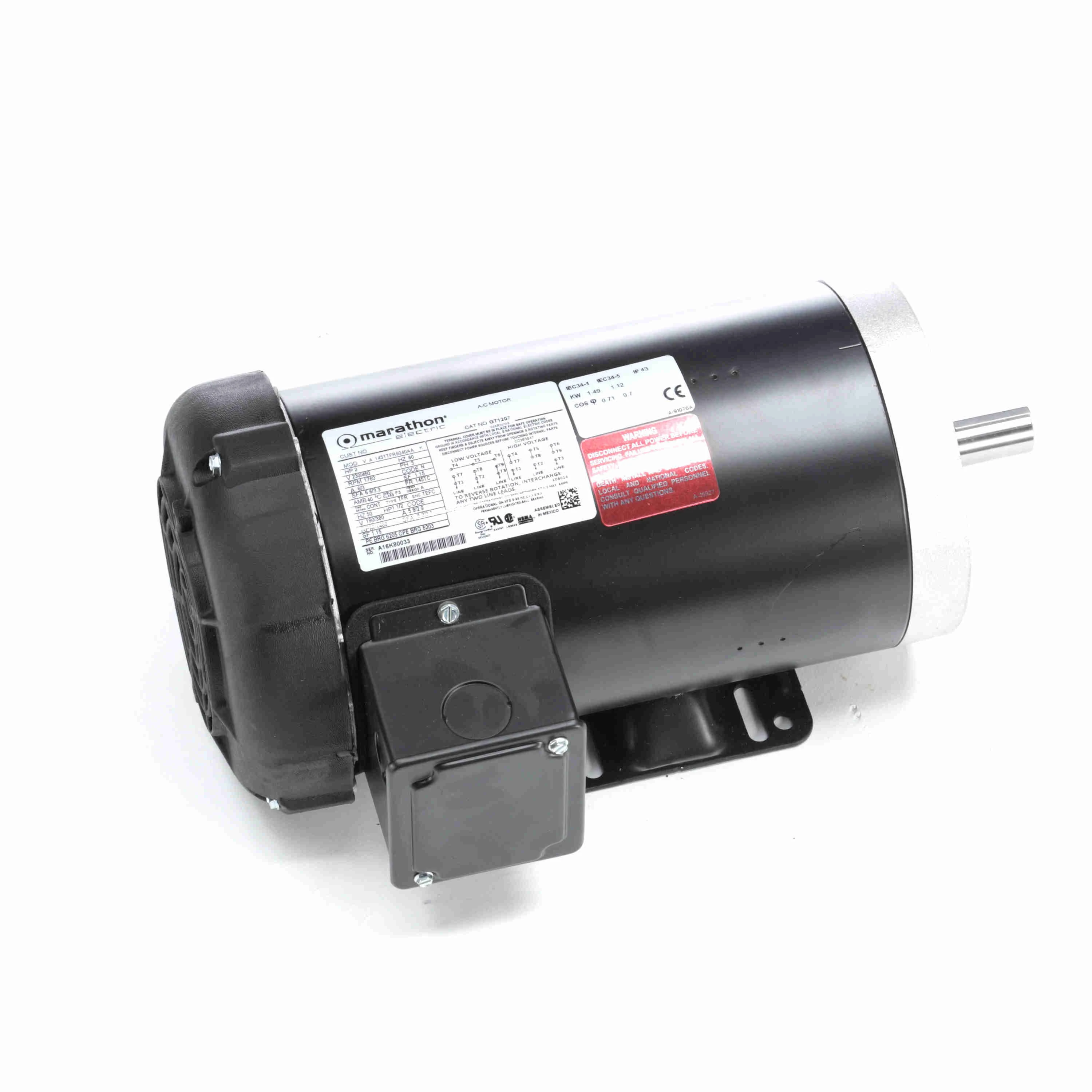

| B | 145TTFR6040 | 1760 RPM | 2 hp | 6/3A | 6/3A | 145TC | Steel | 86.5% | 14 7/8" | €727.35 | |
| C | 143TTFR6032 | 1765 RPM | 1 hp | 3.3/1.65A | 3.3/1.7A | 143TC | Rolled Steel | 85.5% | 13 3/8" | €786.70 | |
| D | 145TTFR6009 | 3500 RPM | 2 hp | 5/2.5A | 5/2.5A | 145TC | Rolled Steel | 85.5% | 14 3/8" | €837.40 |
Working Mechanism
- Electric motors convert electrical energy into mechanical energy for generating motion.
- Force is produced within the motor through the interaction between a winding alternating (AC) or direct (DC) current and the magnetic field.
Features
- Marathon Globetrotter general-purpose motors come with IP55 rating for protection against water & dust.
- These IE3 efficient motors increase energy savings, even while delivering speeds up to 3600 rpm.
- They feature cast iron frame construction for structural rigidity.
- The ball bearings are mechanically locked on the shaft end to reduce motor friction.
- These units are configured with dual frame mounting holes on the base to ensure easy installation.
- These triple-phase units have a totally enclosed fan-cooled enclosure to allow air to flow through the motor and prevent overheating.
Standards and Approvals
- CSA
- UL
- CE
- NEMA
Frequently Asked Questions
What is the difference between TENV and TEFC motors?
Totally enclosed non-ventilated (TENV) motors are designed without air openings and are ideal for applications where frequent sanitising or cleaning is required. TEFC (totally enclosed fan-cooled) motors come with an external fan to circulate outside air to the motor.
What is the difference between single, double and triple-phase motors?
- Single-phase motor: Electricity flows through a single conductor.
- Double-phase motor: Electricity flows through 4-wire conductors (2 for each phase).
- Triple-phase motor: Electricity flows through 3 separate conductors.
What are the classes of IE efficiency?
- IE1 - Standard Efficiency
- IE2 - High Efficiency
- IE3 - Premium Efficiency
