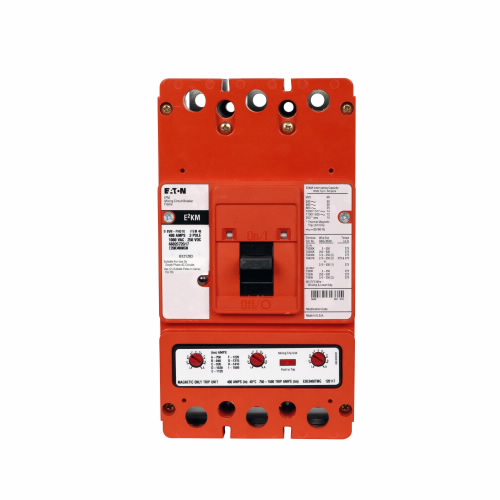

EATON E2KM Type Mining Complete Molded Case Circuit Breakers
Eaton E2KM type mining complete moulded case circuit breakers are used in motor control centres, switchboards, panelboards and busways to protect electrical systems from overcurrent and short circuit conditions.
Filter
A
B| Style | Model | Height | No. Of Poles | Amps | Type | Trip Rating | Auxiliary Switch | Voltage | Circuit Breaker Frame Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | E2KM3400MDD09 | 5 1/2" | 3 | 400A | Specialty Complete | 500-1000A | - | 250V DC/577/1000V AC | Complete Breaker | €12,108.13 | |
| A | E2KM3400MLWS10 | 5 1/2" | 3 | 400A | Specialty Complete | 1125-2250A | - | 250V DC/577/1000V AC | Complete Breaker | €12,559.01 | |
| A | E2KM3400WU66 | 5 1/2" | 3 | 400A | Specialty Complete | 2000-4000A | - | 250V DC/577/1000V AC | Complete Breaker | €13,895.44 | |
| A | E2KM3400MKWA06 | 5 1/2" | 3 | 400A | Specialty Complete | 1000-2000A | 1A-1B Rear With Right Pigtail | 250V DC/577/1000V AC | Complete Breaker | €12,559.01 | |
| A | E2KM3400MJWA06 | 5 1/2" | 3 | 400A | Specialty Complete | 875-1750A | 1A-1B Rear With Right Pigtail | 250V DC/577/1000V AC | Complete Breaker | €13,649.03 | |
| A | E2KM3400MJA2D9S30 | 5 1/2" | 3 | 400A | Specialty Complete | 875-1750A | 1A-1B Rear With Left Pigtail | 250V DC/577/1000V AC | Complete Breaker | €14,048.85 | |
| A | E2KM3400MJA02S30D09 | 5 1/2" | 3 | 400A | Specialty Complete | - | 1A-1B Rear With Left Pigtail | 250V DC/577/1000V AC | Complete Breaker | €14,023.62 | |
| A | E2KM3400MJWU66 | 5 1/2" | 3 | 400A | Specialty Complete | 875-1750A | - | 250V DC/577/1000V AC | Complete Breaker | - | RFQ
|
| A | E2KM3400MJD09 | 5 1/2" | 3 | 400A | Specialty Complete | 875-1750A | - | 250V DC/577/1000V AC | Complete Breaker | €11,707.67 | |
| B | E2KM3400MGWA06S10 | 5 1/2" | 3 | 400A | Specialty Complete | 750-1500A | 1A-1B Rear With Right Pigtail | 250V DC/577/1000V AC | Complete Breaker | - | RFQ
|
| B | E2KM3400MGWS10 | 5 1/2" | 3 | 400A | Specialty Complete | 750-1500A | - | 250V DC/577/1000V AC | Complete Breaker | €14,029.91 | |
| B | E2KM3400MGWA06 | 5 1/2" | 3 | 400A | Specialty Complete | 750-1500A | 1A-1B Rear With Right Pigtail | 250V DC/577/1000V AC | Complete Breaker | €12,559.01 | |
| A | E2KM3350W | 5 1/2" | 3 | 350A | Specialty Complete | 1750-3500A | - | 250V DC/577/1000V AC | Complete Breaker | €12,037.22 | |
| B | E2KM3400MGWU66 | 5 1/2" | 3 | 400A | Specialty Complete | 750-1500A | - | 250V DC/577/1000V AC | Complete Breaker | €14,029.91 | |
| A | E2KM3400MJA02D09 | 5 1/2" | 3 | 400A | Specialty Complete | 875-1750A | 1A-1B Rear With Left Pigtail | 250V DC/577/1000V AC | Complete Breaker | €13,266.04 | |
| A | E2KM3400MLA02 | 5 1/2" | 3 | 400A | Specialty Complete | 1125-2250A | 1A-1B Rear With Left Pigtail | 250V DC/577/1000V AC | Complete Breaker | €13,124.95 | |
| A | E2KM3400MNWU66 | 5 1/2" | 2 | 400A | Specialty Complete | 1500-3000A | - | 250V DC/577/1000V AC | Complete Breaker | €13,822.21 | |
| A | E2KM3400W | 5 1/2" | 3 | 400A | Specialty Complete | 2000-4000A | - | 250V DC/577/1000V AC | Complete Breaker | €12,037.22 | |
| A | E2KM3350WB04 | 5 1/2" | 3 | 350A | - | 1750-3500A | - | 250V DC/577/1000V AC | Complete Breaker | €13,348.33 | |
| A | E2KM3400MKWS10 | 5 1/2" | 3 | 400A | Specialty Complete | 1000-2000A | - | 250V DC/577/1000V AC | Complete Breaker | €14,029.91 | |
| A | E2KM3400WS30 | 5 1/2" | 3 | 400A | Specialty Complete | 2000-4000A | - | 250V DC/577/1000V AC | Complete Breaker | €13,895.44 | |
| A | E2KM3125WA02 | 5 1/2" | 3 | 125A | E2 Mining | 625-1250A | 1A-1B Rear With Left Pigtail | 250V DC/577/1000V AC | Complete Breaker | €12,559.01 | |
| A | E2KM3200WU66 | 5 1/2" | 3 | 200A | Specialty Complete | 1000-2000A | - | 250V DC/577/1000V AC | Complete Breaker | €14,029.91 | |
| A | E2KM3225AW | 5 1/2" | 3 | 225A | Specialty Complete | 300-650A | - | 250V DC/577/1000V AC | Complete Breaker | €12,070.28 | |
| A | E2KM3225DWU66 | 5 1/2" | 3 | 225A | Specialty Complete | 500-1000A | - | 250V DC/577/1000V AC | Complete Breaker | €14,029.91 | |
| A | E2KM3400MDA02D09 | 5 1/2" | 3 | 400A | Specialty Complete | 500-1000A | 1A-1B Rear With Left Pigtail | 250V DC/577/1000V AC | Complete Breaker | €12,808.69 | |
| B | E2KM3400MGWA13 | 5 1/2" | 3 | 400A | Specialty Complete | 750-1500A | 2A-2B Rear With Right Pigtail | 250V DC/577/1000V AC | Complete Breaker | €13,603.92 | |
| A | E2KM3400MNWA06 | 5 1/2" | 3 | 400A | Specialty Complete | 1500-3000A | - | 250V DC/577/1000V AC | Complete Breaker | €13,542.74 | |
| B | E2KM3400MGW | 5 1/2" | 3 | 400A | Specialty Complete | 750-1500A | - | 250V DC/577/1000V AC | Complete Breaker | €12,070.28 | |
| B | E2KM3400MGWU65 | 5 1/2" | 3 | 400A | Specialty Complete | 750-1500A | - | 250V DC/577/1000V AC | Complete Breaker | - | RFQ
|
| A | E2KM3400MJD09S30 | 5 1/2" | 3 | 400A | Specialty Complete | 875-1750A | - | 250V DC/577/1000V AC | Complete Breaker | €13,584.22 | |
| A | E2KM3400MJWS10 | 5 1/2" | 3 | 400A | Specialty Complete | 875-1750A | - | 250V DC/577/1000V AC | Complete Breaker | €13,565.89 | |
| A | E2KM3400MWWA13 | 5 1/2" | 3 | 400A | Specialty Complete | 1250-2500A | 2A-2B Rear With Right Pigtail | 250V DC/577/1000V AC | Complete Breaker | €13,613.36 | |
| A | E2KM3400WA06U66 | 5 1/2" | 3 | 400A | Specialty Complete | 2000-4000A | - | 250V DC/577/1000V AC | Complete Breaker | €14,527.05 | |
| A | E2KM3100WA02 | 10.13" | 3 | 100A | Specialty Complete | 500-1000A | - | 250V DC/577/1000V AC | Complete Breaker | €12,559.01 | |
| A | E2KM3100W | 10.13" | 3 | 100A | Specialty Complete | 500-1000A | - | 250V DC/577/1000V AC | Complete Breaker | €12,684.02 |
Features
- They feature an interchangeable thermal-magnetic trip for long and instantaneous current limiting functions.
- These circuit breakers have an amperage rating of 400A and are available for systems up to 1000Y / 577VAC, 250VDC.
- They feature a 1A-1B rear auxiliary switch with a left pigtail for a centralised power supply.
Compatible Accessories
- Eaton Shunt trip: It features an intermittent rated solenoid, a cutoff switch and a tripping plunger mounted on a plug-in module. It further provides remote-controlled tripping.
Frequently Asked Questions
Why are line and load end caps used in these circuit breakers?
Line and load end caps are used to slide onto the conductor of the circuit breaker and work as a threaded adapter to accept a ring terminal without any threaded tangs.
What is the interrupting capacity of these Eaton E2KM-type circuit breakers?
- 25kAIC at 600VAC
- 10kAIC at 1000Y / 577VAC
- 10kAIC at 250VDC
- 65kAIC at 240VAC
- 35kAIC at 480VAC
