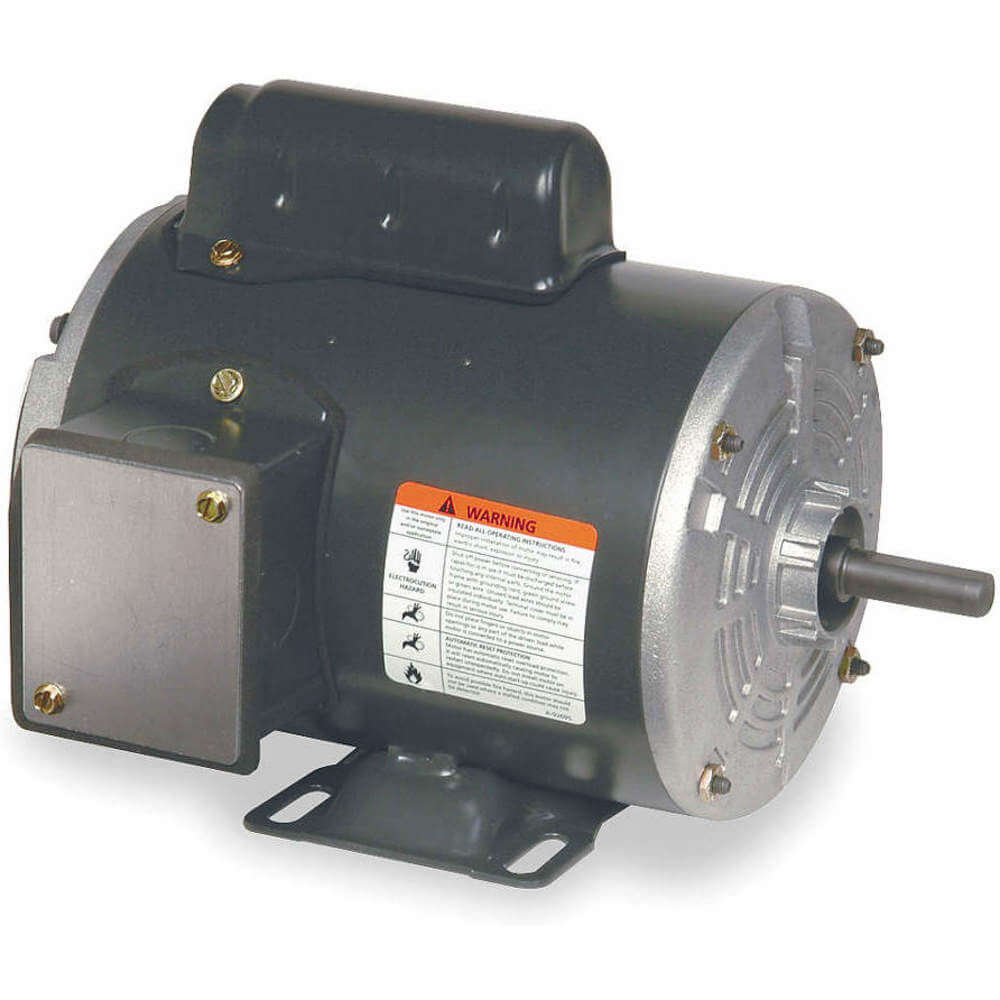

DAYTON 6K482 General Purpose Motor Carbon Steel Tenv 1/2 Hp 3450 Rpm 48
Get it by Thursday, Dec 25
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€348.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 66% |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.3/3.4-3.3A |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Length Less Shaft | 9 7/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 66% |
| Number Of Speeds | 1 |
| Overall Length | 10 7/16" |
| Phase | 1 |
| Promotion Restriction | Not Eligible For Promotion |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Standards | Csa (225293), Ul (E47479) |
| Thermal Protection | Automatic |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 25.65 |
| Ship length (cm) | 32.51 |
| Ship width (cm) | 24.64 |
| HS code | 8501404040 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Phase | Nameplate Rpm | Hp | Frequency | Full Load Amps | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2N863 | 230/460V AC | 3 | 1770 RPM | 1/4 hp | 50/60 Hz | 1.4/0.7A | Rigid Base | Three Phase | €399.45 | |
 |
3N349 | 208-230/460V AC | 3 | 1725 RPM | 1/4 hp | 60 Hz | 1.1/0.5A | Rigid Base | Three Phase | €340.50 | |
|
3N350 | 208-230/460V AC | 3 | 1725 RPM | 1/3 hp | 60 Hz | 1.3/0.7A | Rigid Base | Three Phase | €369.02 | |
|
3N694 | 208-230/460V AC | 3 | 1765 RPM | 1/3 hp | 60 Hz | 1.5-1.4/0.7A | Rigid Base | Three Phase | €647.00 | |
 |
3N695 | 208-230/460V AC | 3 | 1755 RPM | 1/2 hp | 60 Hz | 1.9/1.8-1A | Rigid Base | Three Phase | €490.37 | |
 |
3N696 | 208-230/460V AC | 3 | 1725 RPM | 3/4 hp | 60 Hz | 2.9-2.8/1.4A | Rigid Base | Three Phase | €522.93 | |
 |
3N854 | 208-230/460V AC | 3 | 3450 RPM | 1/3 hp | 50/60 Hz | 1.2-1.1/0.6A | Rigid Base | Three Phase | €449.70 |
