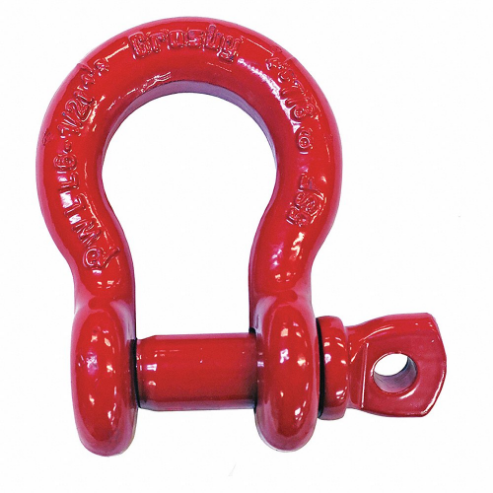

CROSBY 1018543 Anchor Shackle Carbon Steel 17000 Lb.
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€121.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Anchor Shackle |
| Body Material | Carbon Steel |
| Body Size | 1" |
| Body Thickness | 1" |
| Eye Outside Dia. | 2 3/8" |
| Finish | Painted |
| For Sling Width | 2 11/16" |
| Inside Length | 3 3/4" |
| Inside Width | 2 3/4" |
| Lifting Capability | For Lifting |
| Pin Color | Red |
| Pin Dia. | 1 1/8" |
| Pin Finish | Painted |
| Pin Material | Alloy Steel |
| Pin Style | Screw Pin |
| Pin Style | Screw |
| Shackle Type | Anchor Shackle |
| Sling Width | 2 3/4" |
| Width Between Eyes | 1-11/16" |
| Width Between Eyes | 1 3/4" |
| Working Load Limit | 17000 lbs. |
Shipping Info:
| Ship weight (kg) | 4.32 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 17.02 |
| Ship width (cm) | 15.24 |
| HS code | 7312900000 |
Product Variants
| Product | Model | Inside Length | Inside Width | Width Between Eyes | Pin Dia. | Working Load Limit | Pin Type | Finish | Pin Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1018400 | 1 1/4" | 13/16" | 1/2" | 3/8" | 1500 lbs. | Removable Screw Pin | Painted | Screw | €17.13 | |
|
1018428 | 1 7/16" | 1" | 11/16" | 0.438" | 2000 lbs. | Removable Screw Pin | - | Screw Pin | €19.46 | |
 |
1018464 | 1 7/8" | 1 5/16" | 13/16" | 5/8" | 4000 lbs. | Removable Screw Pin | Painted | Screw | €27.81 | |
 |
1018507 | 2 13/16" | 2" | 1 1/4" | 7/8" | 9500 lbs. | Removable Screw Pin | Painted | Screw | €72.62 | |
|
1018525 | 3 5/16" | 2 1/4" | 1 7/16" | 1" | 13000 lbs. | Removable Screw Pin | Painted | Screw | €98.50 | |
|
1018589 | 4 11/16" | 3 1/4" | 2" | 1 3/8" | 24000 lbs. | Removable Screw Pin | Painted | Screw | €273.56 | |
|
1018641 | 7" | 5" | 2 7/8" | 2" | 50000 lbs. | Removable Screw Pin | Painted | Screw | €700.96 |
