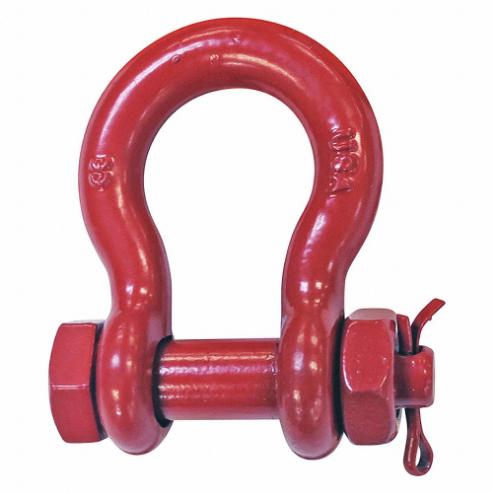

CROSBY 1019668 Anchor Shackle Carbon Steel 50000 Lb.
Get it by Thursday, Dec 25
10.00% off
€723.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Anchor Shackle |
| Body Color | Silver |
| Body Finish | Painted |
| Body Material | Carbon Steel |
| Body Thickness | 1 3/4" |
| Compatible Sling Width | 5" |
| Eye Outside Dia. | 4 3/16" |
| Finish | Paint |
| For Sling Width | 5" |
| Inside Length | 7" |
| Inside Width | 5" |
| Lifting Capability | For Lifting |
| Maximum Operating Temperature | 400°F |
| Minimum Operating Temperature | -40°F |
| Pin Color | Red |
| Pin Diameter | 2" |
| Pin Finish | Painted |
| Pin Material | Carbon Steel |
| Pin Style | Bolt, Nut, and Cotter Pin |
| Pin Style | Bolt, Cotter, Nut |
| Pin Type | Removable Bolt, Nut |
| Shackle Type | Anchor Shackle |
| Standards | Asme B30.26 |
| Width Between Eyes | 2 7/8" |
| Width Between Eyes | 2-7/8" |
Shipping Info:
| Ship weight (kg) | 14.87 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 25.4 |
| HS code | 7312900000 |
Product Variants
| Product | Model | Inside Length | Inside Width | Width Between Eyes | Pin Dia. | Working Load Limit | Pin Type | Finish | Pin Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1018400 | 1 1/4" | 13/16" | 1/2" | 3/8" | 1500 lbs. | Removable Screw Pin | Painted | Screw | €17.13 | |
|
1018428 | 1 7/16" | 1" | 11/16" | 0.438" | 2000 lbs. | Removable Screw Pin | - | Screw Pin | €19.46 | |
 |
1018464 | 1 7/8" | 1 5/16" | 13/16" | 5/8" | 4000 lbs. | Removable Screw Pin | Painted | Screw | €27.81 | |
 |
1018507 | 2 13/16" | 2" | 1 1/4" | 7/8" | 9500 lbs. | Removable Screw Pin | Painted | Screw | €72.62 | |
|
1018525 | 3 5/16" | 2 1/4" | 1 7/16" | 1" | 13000 lbs. | Removable Screw Pin | Painted | Screw | €98.50 | |
|
1018589 | 4 11/16" | 3 1/4" | 2" | 1 3/8" | 24000 lbs. | Removable Screw Pin | Painted | Screw | €273.56 | |
|
1018641 | 7" | 5" | 2 7/8" | 2" | 50000 lbs. | Removable Screw Pin | Painted | Screw | €700.96 |
