CLEVELAND Three Piece Tap Kits
Filter
A
B
C
D| Style | Model | Overall Length | Number Of Flutes | Thread Size | Thread Length | 75% Thread Drill Size | Tap Chamfer | Shank Dia. | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C54092 | 1 3/4" | 3 | #2-56 | 7/16" | 1.73 mm | Bottom, Plug, Taper | 9/64" | Coarse | €108.51 | |
| A | C54156 | 1 7/8" | 3 | #4-48 | 19/64" | 2.32 mm | Bottom, Plug, Taper | 0.141" | Fine | €70.70 | |
| A | C54152 | 1 7/8" | 3 | #4-40 | 19/64" | 2.2 mm | Bottom, Plug, Taper | 9/64" | Coarse | €70.70 | |
| A | C54123 | 1 13/16" | 3 | #3-56 | 1/2" | #46 | Bottom, Plug, Taper | 9/64" | Fine | €93.32 | |
| A | C54191 | 1 15/16" | 3 | #5-40 | 19/64" | #39 | Bottom, Plug, Taper | 9/64" | Coarse | €68.30 | |
| A | C54195 | 1 15/16" | 3 | #5-44 | 19/64" | 2.6 mm | Bottom, Plug, Taper | 9/64" | Fine | €73.45 | |
| A | C54118 | 1.812" | 3 | #3-48 | 1/2" | 2 mm | Bottom, Plug, Taper | 0.141" | Coarse | €83.43 | |
| A | C54452 | 2 1/2" | 4 | 1/4"-20 | 5/8" | #7 | Bottom, Plug, Taper | 1/4" | Coarse | €77.46 | |
| A | C54476 | 2 1/2" | 4 | 1/4"-28 | 5/8" | 5.45 mm | Bottom, Plug, Taper | 1/4" | Fine | €59.84 | |
| A | C54460 | 2 1/2" | 4 | 1/4"-20 | 5/8" | #7 | Bottom, Plug, Taper | 1/4" | Coarse | €59.84 | |
| A | C54447 | 2 1/2" | 4 | 1/4"-20 | 5/8" | #7 | Bottom, Plug, Taper | 1/4" | Coarse | €80.65 | |
| B | C55090 | 2 1/2", 2 23/32", 2 15/16", 3 5/32", 3 3/8" | 4 | 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20 | 1, 1 1/8", 1 1/4", 1 7/16" | - | Plug | 1/4", 23/64", 3/8", 5/16" | UNC, UNF | €460.35 | |
| A | C54280 | 2 1/8" | 4 | #8-32 | 3/8" | 3.4 mm | Bottom, Plug, Taper | 0.156" | Coarse | €53.99 | |
| A | C54272 | 2 1/8" | 4 | #8-32 | 3/8" | 3.4 mm | Bottom, Plug, Taper | 0.156" | Coarse | €55.65 | |
| A | C54292 | 2 1/8" | 4 | #8-36 | 3/8" | #29 | Bottom, Plug, Taper | 5/32" | Fine | €55.65 | |
| A | C54392 | 2 3/8" | 4 | #12-28 | 1/2" | 4.6 mm | Bottom, Plug, Taper | 7/32" | Fine | €64.12 | |
| A | C54388 | 2 3/8" | 4 | #12-24 | 1/2" | 4.45 mm | Bottom, Plug, Taper | 7/32" | Coarse | €58.62 | |
| A | C54351 | 2 3/8" | 4 | #10-32 | 1/2" | #21 | Bottom, Plug, Taper | 3/16" | Fine | €62.20 | |
| A | C54324 | 2 3/8" | 4 | #10-24 | 1/2" | #25 | Bottom, Plug, Taper | 3/16" | Coarse | €57.11 | |
| A | C54359 | 2 3/8" | 4 | #10-32 | - | #21 | Bottom, Plug, Taper | 3/16" | Fine | €55.65 | |
| A | C54332 | 2 3/8" | 4 | #10-24 | 1/2" | #25 | Bottom, Plug, Taper | 3/16" | Coarse | €55.65 | |
| C | C54600 | 2 15/16" | 4 | 3/8"-24 | 3/4" | 8.5 mm | Bottom, Plug, Taper | 3/8" | Fine | €83.29 | |
| C | C54587 | 2 15/16" | 4 | 3/8"-16 | 3/4" | 5/16" | Bottom, Plug, Taper | 3/8" | Coarse | €83.29 | |
| C | C54523 | 2 23/32" | 4 | 5/16"-24 | 11/16" | - | Bottom, Plug, Taper | 5/16" | Fine | €70.70 | |
| C | C54511 | 2 23/32" | 4 | 5/16"-18 | 11/16" | F | Bottom, Plug, Taper | 5/16" | Coarse | €70.70 | |

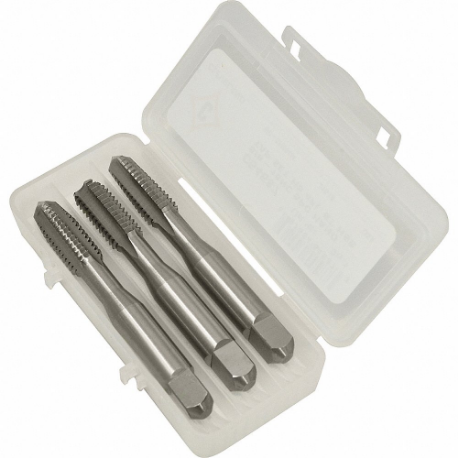

| D | C54235 | 2" | 3 | - | 3/8" | #33 | Bottom, Plug, Taper | 9/64" | Fine | €55.65 | |
| A | C54220 | 2" | 3 | #6-32 | 3/8" | #36 | Bottom, Plug, Taper | 9/64" | Coarse | €69.69 | |
| A | C54226 | 2" | 3 | #6-32 | 3/8" | #36 | Bottom, Plug, Taper | 9/64" | Coarse | €52.53 | |
| C | C54741 | 3 3/8" | 4 | 1/2"-20 | 15/16" | 11.4 mm | Bottom, Plug, Taper | 23/64" | Fine | €168.61 | |
| C | C54731 | 3 3/8" | 4 | 1/2"-13 | 15/16" | 27/64" | Bottom, Plug, Taper | 23/64" | Coarse | €149.26 | |
| C | C54665 | 3 5/32" | 4 | 7/16"-20 | 7/8" | 9.95 mm | Bottom, Plug, Taper | 5/16" | Fine | €156.03 | |
| C | C54656 | 3 5/32" | 4 | 7/16"-14 | 7/8" | V | Bottom, Plug, Taper | 5/16" | Coarse | €156.03 | |
| C | C54782 | 3 13/16" | 4 | 5/8"-11 | 1 5/64" | 13.6 mm | Bottom, Plug, Taper | 15/32" | Coarse | €304.10 | |
| C | C54790 | 3 13/16" | 4 | 5/8"-18 | 1 5/64" | 13.6 mm | Bottom, Plug, Taper | 15/32" | Fine | €304.10 | |
| C | C54762 | 3 19/32" | 4 | 9/16"-12 | 1" | 12.2 mm | Bottom, Plug, Taper | 27/64" | Coarse | €254.93 | |
| C | C54768 | 3 19/32" | 4 | 9/16"-18 | 1" | 12.9 mm | Bottom, Plug, Taper | 27/64" | Fine | €265.38 | |
| C | C54849 | 4 1/4" | 4 | 3/4"-16 | 1 7/32" | 17.5" | Bottom, Plug, Taper | 37/64" | Fine | €425.61 | |
| C | C54841 | 4 1/4" | 4 | 3/4"-10 | 1 7/32" | 16.5 mm | Bottom, Plug, Taper | 37/64" | Coarse | €425.61 | |
| C | C54816 | 4 1/32" | 4 | 1 1/16"-11 | 1 5/64" | - | Bottom, Plug, Taper | 17/32" | Special | €317.20 | |
| C | C54887 | 4 11/16" | 4 | 7/8"-9 | 2 7/32" | 19.5 mm | Bottom, Plug, Taper | 11/16" | Coarse | €593.37 | |
| C | C54893 | 4 11/16" | 4 | 7/8"-14 | 2 7/32" | 20.4 mm | Bottom, Plug, Taper | 11/16" | Fine | €593.37 | |
| C | C54820 | 4.031" | 4 | 1 1/16"-16 | 1 5/64" | - | Bottom, Plug, Taper | 0.531" | Special | €307.09 | |
| C | C54936 | 5 1/8" | 4 | 1"-14 | 2 1/2" | - | Bottom, Plug, Taper | 51/64" | Special | €740.36 | |
| C | C54926 | 5 1/8" | 4 | 1"-8 | 2 1/2" | 22.25 mm | Bottom, Plug, Taper | 51/64" | Coarse | €736.79 | |
| C | C54867 | 13.51 mm | 4 | M20 x 2.5 | 50.8 mm | 17.5 mm | Bottom, Plug, Taper | 16.56 mm | Metric | €640.86 | |
| A | C54167 | 49.28 mm | 3 | M3 x 0.5 | 7.87 mm | 2.5 mm | Bottom, Plug, Taper | 3.58 mm | Metric | €90.56 | |
| A | C54249 | 54.1 mm | 4 | M4 x 0.7 | 19.05 mm | 3.3 mm | Bottom, Plug, Taper | 4.27 mm | Metric | €75.25 | |
| A | C54377 | 60.45 mm | 4 | M5 x 0.8 | 12.7 mm | 4.2 mm | Bottom, Plug, Taper | 4.93 mm | Metric | €89.24 | |
| A | C54416 | 63.5 mm | 4 | M6 x 1 | 16 mm | 5 mm | Bottom, Plug, Taper | 6.48 mm | Metric | €78.71 | |
| C | C54539 | 69.09 mm | 4 | M8 x 1.25 | 17.53 mm | H | Bottom, Plug, Taper | 8.08 mm | Metric | €85.50 | |
| C | C54627 | 74.61 mm | 4 | M10 x 1.5 | 31.75 mm | 8.5 mm | Bottom, Plug, Taper | 9.68 mm | Metric | €113.56 | |
| C | C54692 | 85.72 mm | 4 | M12 x 1.75 | 42.07 mm | 10.3 mm | Bottom, Plug, Taper | 9.32 mm | Metric | €189.79 | |
| C | C54758 | 91.28 mm | 4 | M14 x 2 | 42.07 mm | 12 mm | Bottom, Plug, Taper | 10.9 mm | Metric | €287.41 | |
| C | C54804 | 96.84 mm | 4 | M16 x 2 | 46.04 mm | 14 mm | Bottom, Plug, Taper | 12.19 mm | Metric | €351.38 |
