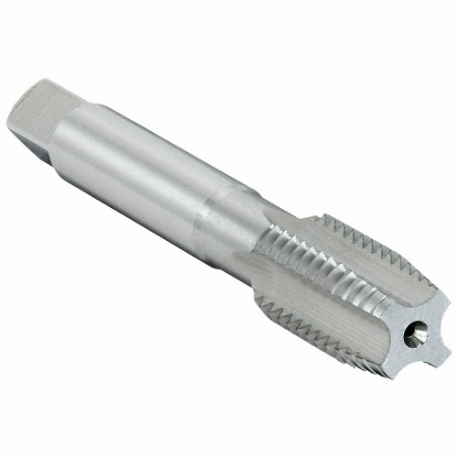

CLEVELAND C54816 1004 Three Piece Tap Kit, 11/16 Inch Size-11 Tap Thread Size, 1 5/64 Inch Thread Length
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€285.48 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tap Kit |
| Coolant Fed | Non Coolant Through |
| Extended Shank | No |
| Features | Taper-Plug-Bottoming |
| Finish | Bright |
| Fits Class | Class 3B |
| Includes | (1) Bottoming Tap, (1) Plug Tap, (1) Taper Tap |
| List Number | 1004 |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Number Of Pieces | 3 |
| Number Of Taps | 3 |
| Overall Length | 4 1/32" |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, N, P |
| Shank Dia. | 17/32" |
| Shank Length | 2 3/16" |
| Square Size | 25/64" |
| Standards | Uscti Table 302A |
| System Of Measurement | Imperial |
| Tap Chamfer | Bottom, Plug, Taper |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 302A |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | 11/16"-11 |
| Tap Type | Straight Flute |
| Thread Direction | Right Hand |
| Thread Length | 1 5/64" |
| Thread Limit | 2B |
| Thread Size | 1 1/16"-11 |
| Thread Standard | Special |
| Threads Per Inch | 11 |
Shipping Info:
| Ship weight (kg) | 5.81 |
| Ship height (cm) | 8 |
| Ship length (cm) | 14 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Overall Length | Number Of Flutes | Thread Size | Thread Length | 75% Thread Drill Size | Tap Chamfer | Shank Dia. | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

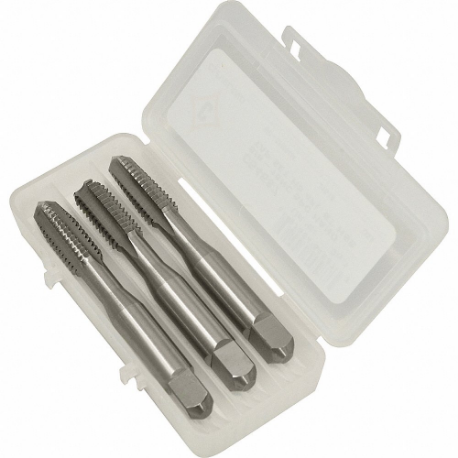

| C54235 | 2" | 3 | - | 3/8" | #33 | Bottom, Plug, Taper | 9/64" | Fine | €55.65 | |

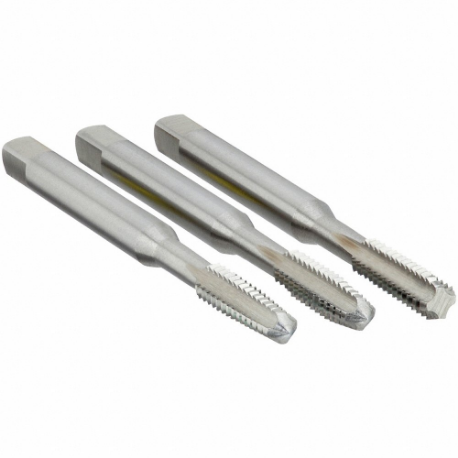

| C54324 | 2 3/8" | 4 | #10-24 | 1/2" | #25 | Bottom, Plug, Taper | 3/16" | Coarse | €57.11 | |
| C54332 | 2 3/8" | 4 | #10-24 | 1/2" | #25 | Bottom, Plug, Taper | 3/16" | Coarse | €55.65 | |
| C54359 | 2 3/8" | 4 | #10-32 | - | #21 | Bottom, Plug, Taper | 3/16" | Fine | €55.65 | |
| C54351 | 2 3/8" | 4 | #10-32 | 1/2" | #21 | Bottom, Plug, Taper | 3/16" | Fine | €62.20 | |
| C54388 | 2 3/8" | 4 | #12-24 | 1/2" | 4.45 mm | Bottom, Plug, Taper | 7/32" | Coarse | €58.62 | |
| C54392 | 2 3/8" | 4 | #12-28 | 1/2" | 4.6 mm | Bottom, Plug, Taper | 7/32" | Fine | €64.12 |
