BROWNING B5V Series Gripbelt Sheaves With Split Taper Bushings, 3 Grooves
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1| Style | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Pitch Dia. (5v) | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3695236 | 4 1/5" | 1/2" to 1 3/4" | - | 4 1/2" | 4" | 4.7" | 4 1/2" | P1 | €215.54 | |
| B | 3694163 | 4 2/5" | 1/2" to 1 15/16" | Type 5 | 4.7" | 4 1/5" | 4.9" | 4.7" | B | €212.11 | |
| C | 3694171 | 4 3/5" | 1/2" to 1 15/16" | Type 5 | - | - | 5.1" | 4.9" | B | €205.87 | |
| D | 3694189 | 4 4/5" | 1/2" to 1 15/16" | Type 5 | - | - | 5.3" | 5.1" | B | €212.06 | |
| E | 3695194 | 4" | 1/2" to 1 3/4" | - | 4.3" | 3 4/5" | 4 1/2" | 4.3" | P1 | €207.82 | |
| F | 3694205 | 5 1/5" | 1/2" to 1 15/16" | Type 3 | 5 1/2" | 5" | 5.7" | 5 1/2" | B | €224.43 | |
| G | 3694213 | 5 2/5" | 1/2" to 1 15/16" | Type 3 | 5.7" | 5 1/5" | 5.9" | 5.7" | B | €230.67 | |
| H | 3694221 | 5 3/5" | 1/2" to 1 15/16" | Type 3 | 5.9" | 5 2/5" | 6.1" | 5.9" | B | €236.84 | |
| I | 3694239 | 5 4/5" | 1/2" to 1 15/16" | Type 3 | - | - | 6.3" | 6.1" | B | €243.06 | |
| J | 3694197 | 5" | 1/2" to 1 15/16" | Type 5 | 5.3" | 4 4/5" | 5 1/2" | 5.3" | B | €218.28 | |

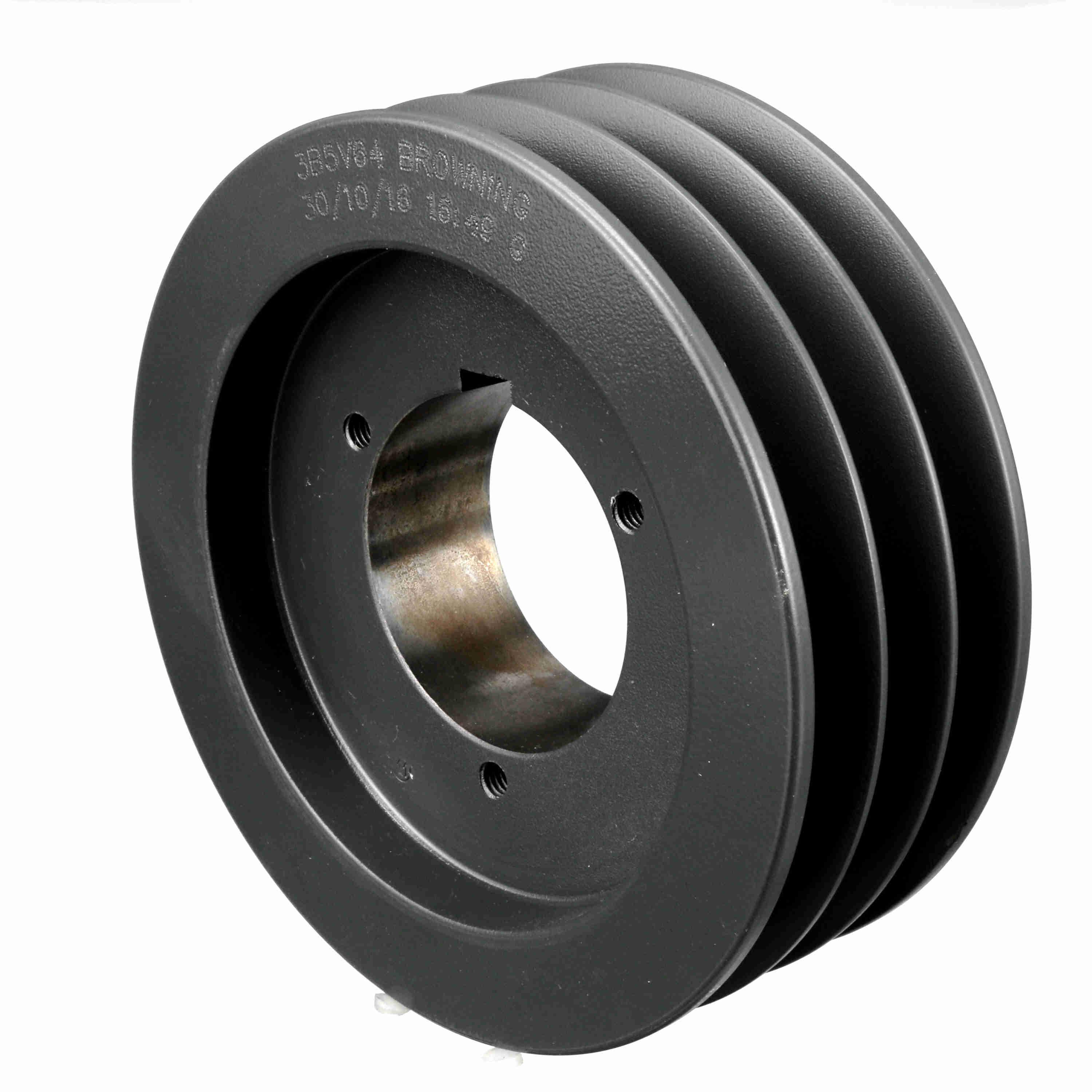

| K | 3694254 | 6 1/5" | 1/2" to 1 15/16" | Type 3 | 6 1/2" | 6" | 6.7" | 6 1/2" | B | €261.69 | |
| L | 3694262 | 6 2/5" | 1/2" to 1 15/16" | Type 3 | - | - | 6.9" | 6.7" | B | €229.59 | |
| M | 3694270 | 6 3/5" | 1/2" to 1 15/16" | Type 4 Web | 6.9" | 6 2/5" | 7.1" | 6.9" | B | €234.93 | |
| N | 3694288 | 6 4/5" | 1/2" to 1 15/16" | Type 4 Web | - | - | 7.3" | 7.1" | B | €256.57 | |
| O | 3694247 | 6" | 1/2" to 1 15/16" | Type 3 | 6.3" | 5 4/5" | 6 1/2" | 6.3" | B | €249.30 | |
| P | 3694296 | 7 1/5" | 1/2" to 1 15/16" | Type 4 Web | 7 1/2" | 7" | 7.7" | 7 1/2" | B | €261.86 | |
| Q | 3694304 | 7 4/5" | 1/2" to 1 15/16" | Arm Type 4 | 8.1" | 7 3/5" | 8.3" | 8.1" | B | €272.52 | |

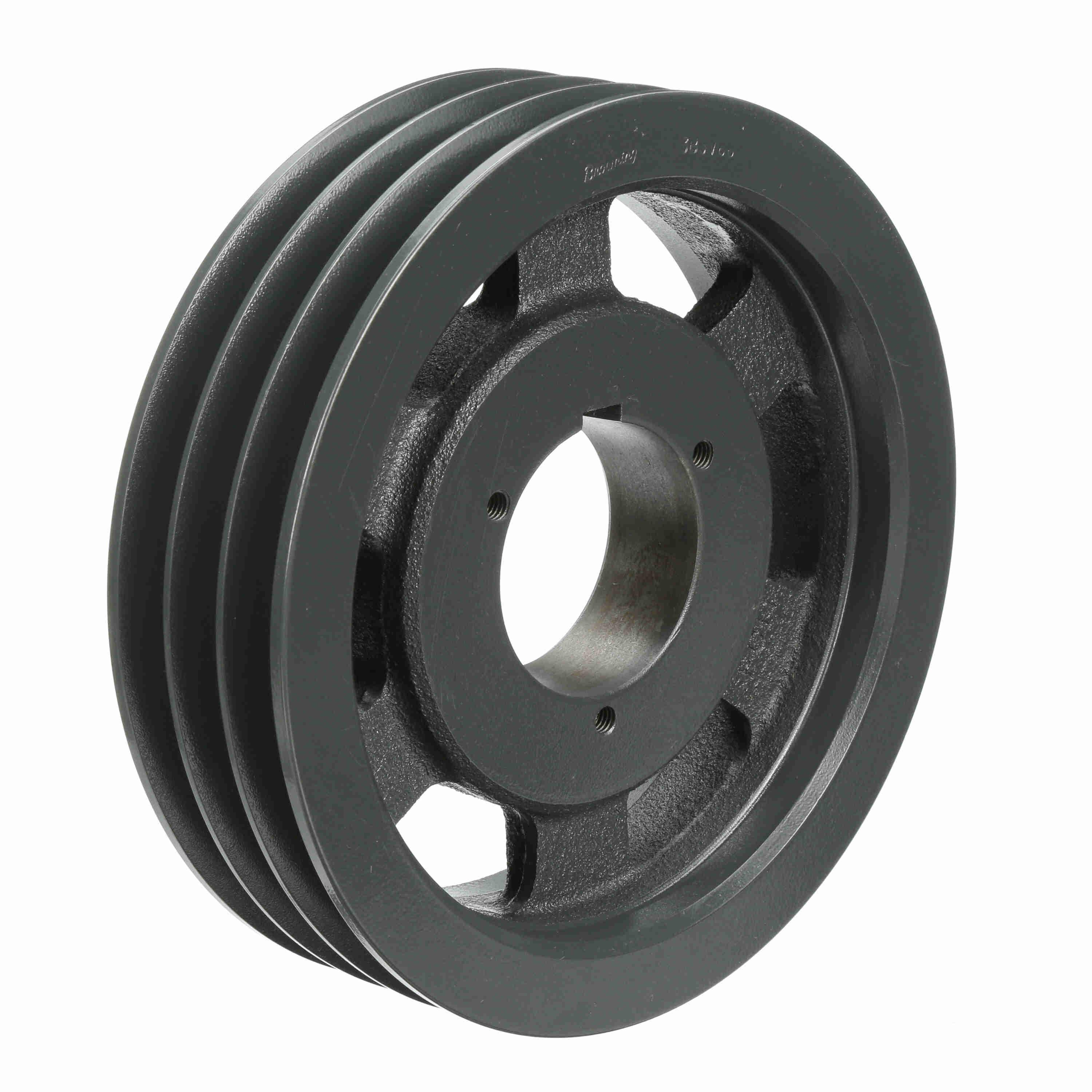

| R | 3694312 | 8 2/5" | 1/2" to 1 15/16" | Arm Type 4 | 8.7" | 8 1/5" | 8.9" | 8.7" | B | €293.76 | |
| S | 3694320 | 8 4/5" | 1/2" to 1 15/16" | Arm Type 4 | 9.1" | 8 3/5" | 9.3" | 9.1" | B | €304.39 | |
| T | 3694338 | 9 1/5" | 1/2" to 1 15/16" | Arm Type 4 | 9 1/2" | 9" | 9.7" | 9 1/2" | B | €315.03 | |
| U | 3694346 | 10 4/5" | 1/2" to 1 15/16" | Arm Type 4 | 11.1" | 10 3/5" | 11.3" | 11.1" | B | €368.17 | |
| V | 3694353 | 12 1/5" | 1/2" to 1 15/16" | Arm Type 4 | 12 1/2" | 12" | 12.7" | 12 1/2" | B | €421.33 | |
| W | 3694361 | 13 2/5" | 1/2" to 1 15/16" | Arm Type 4 | 13.7" | 13 1/5" | 13.9" | 13.7" | B | €453.21 | |
| X | 3694379 | 15 1/5" | 1/2" to 2 7/16" | Type 4 Arm | 15 1/2" | 15" | 15.7" | 15 1/2" | B | €570.15 | |
| Y | 3694387 | 15 4/5" | 1/2" to 2 7/16" | Type 4 Arm | - | - | 16.3" | 16.1" | B | €639.54 | |
| Z | 3694395 | 18 1/5" | 1/2" to 1 15/16" | Arm Type 4 | 18 1/2" | 18" | 18.7" | 18 1/2" | B | €687.06 | |
| A1 | 3694403 | 19 4/5" | 1/2" to 2 7/16" | Type 4 Arm | 20.1" | 19 1/2" | 20.3" | 20.1" | B | €916.51 | |

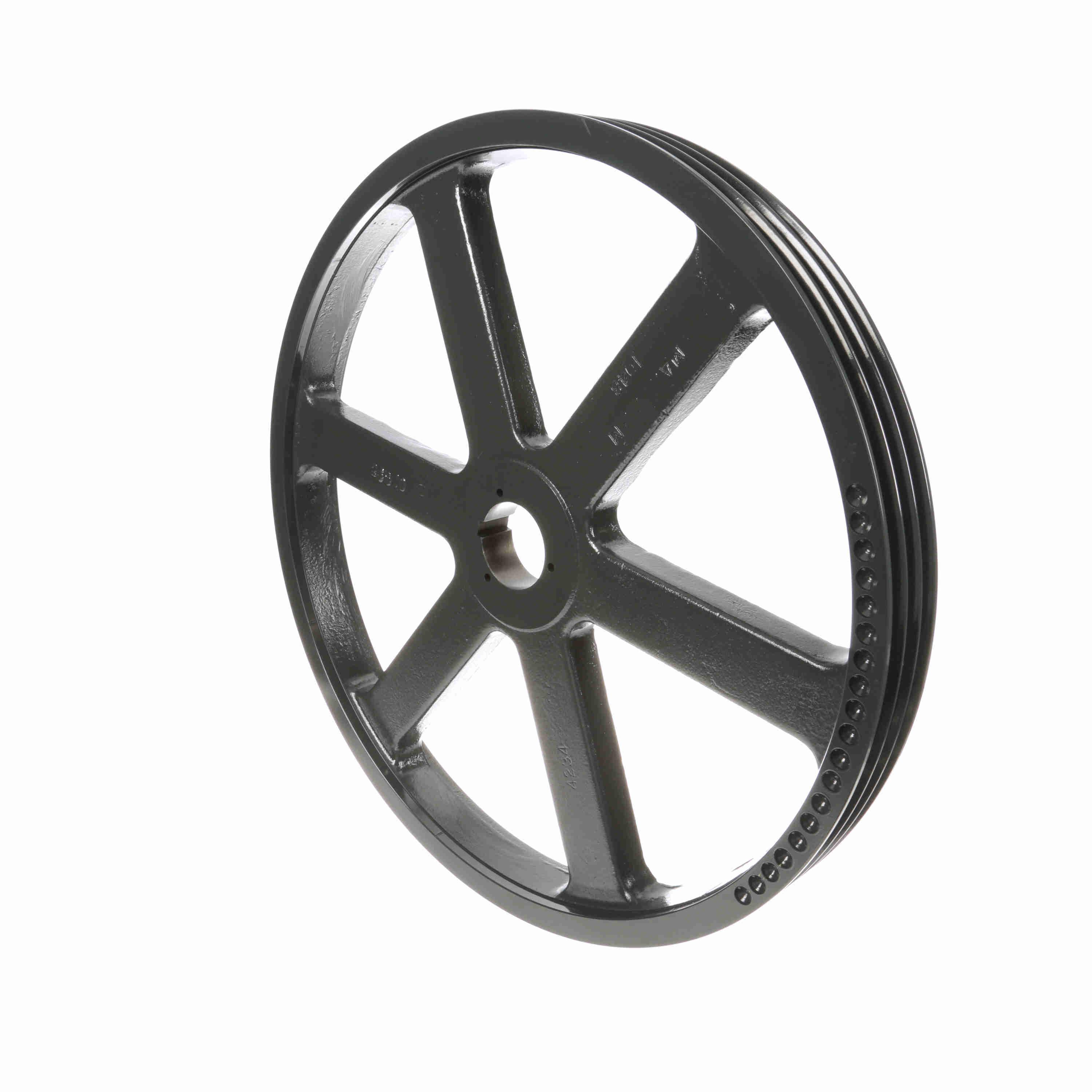

| B1 | 3694411 | 23.1" | 1/2" to 2 7/16" | Type 4 Arm | - | - | 23.7" | 23 1/2" | B | €1,126.18 | |
| C1 | 3694429 | 24 4/5" | 1/2" to 2 7/16" | Type 4 Arm | 25.1" | 24 1/2" | 25.3" | 25.1" | B | €1,224.77 | |

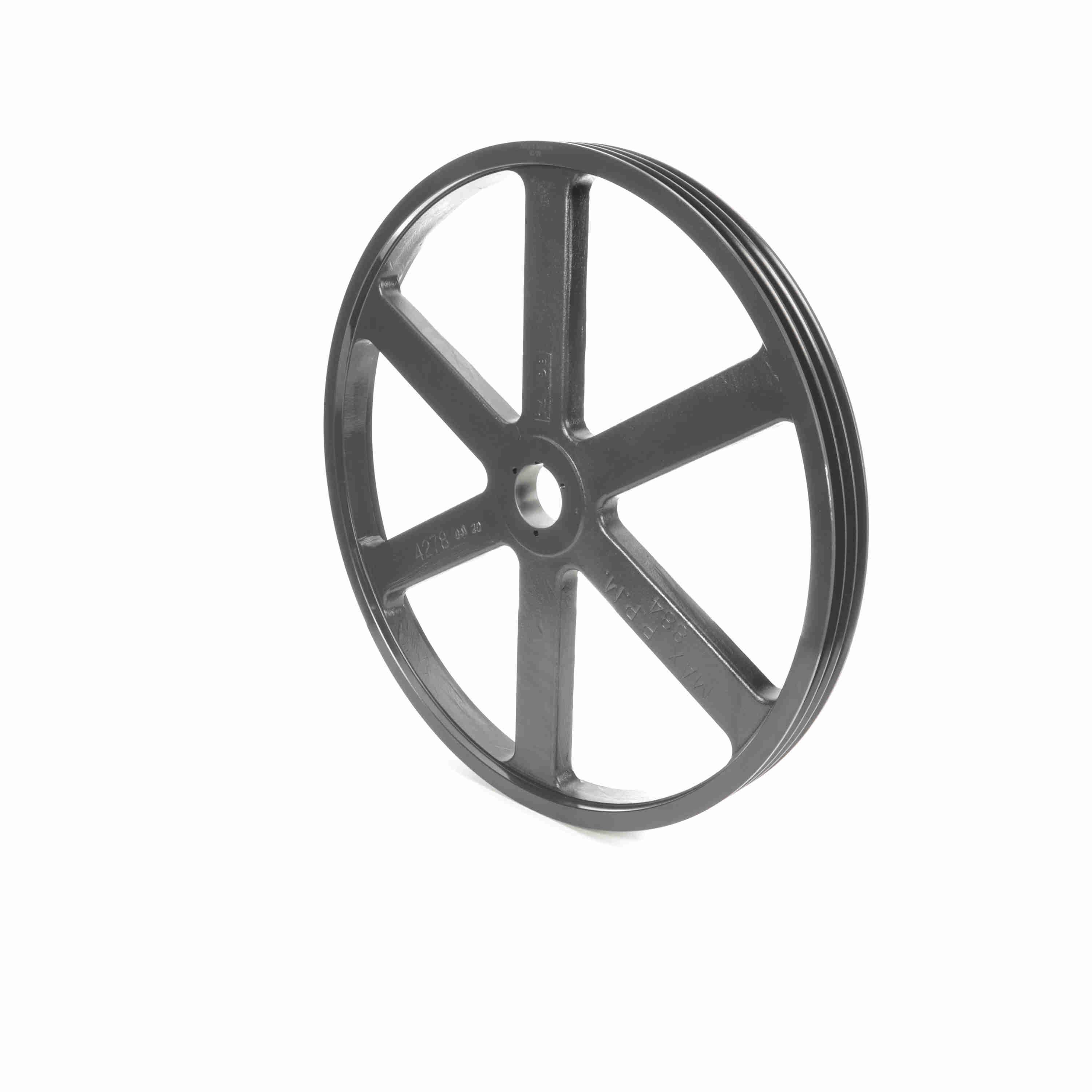

| D1 | 3694437 | 27 1/2" | 1/2" to 2 7/16" | Type 4 Arm | 27.9" | 27.3" | 28.1" | 27.9" | B | €1,282.12 |
