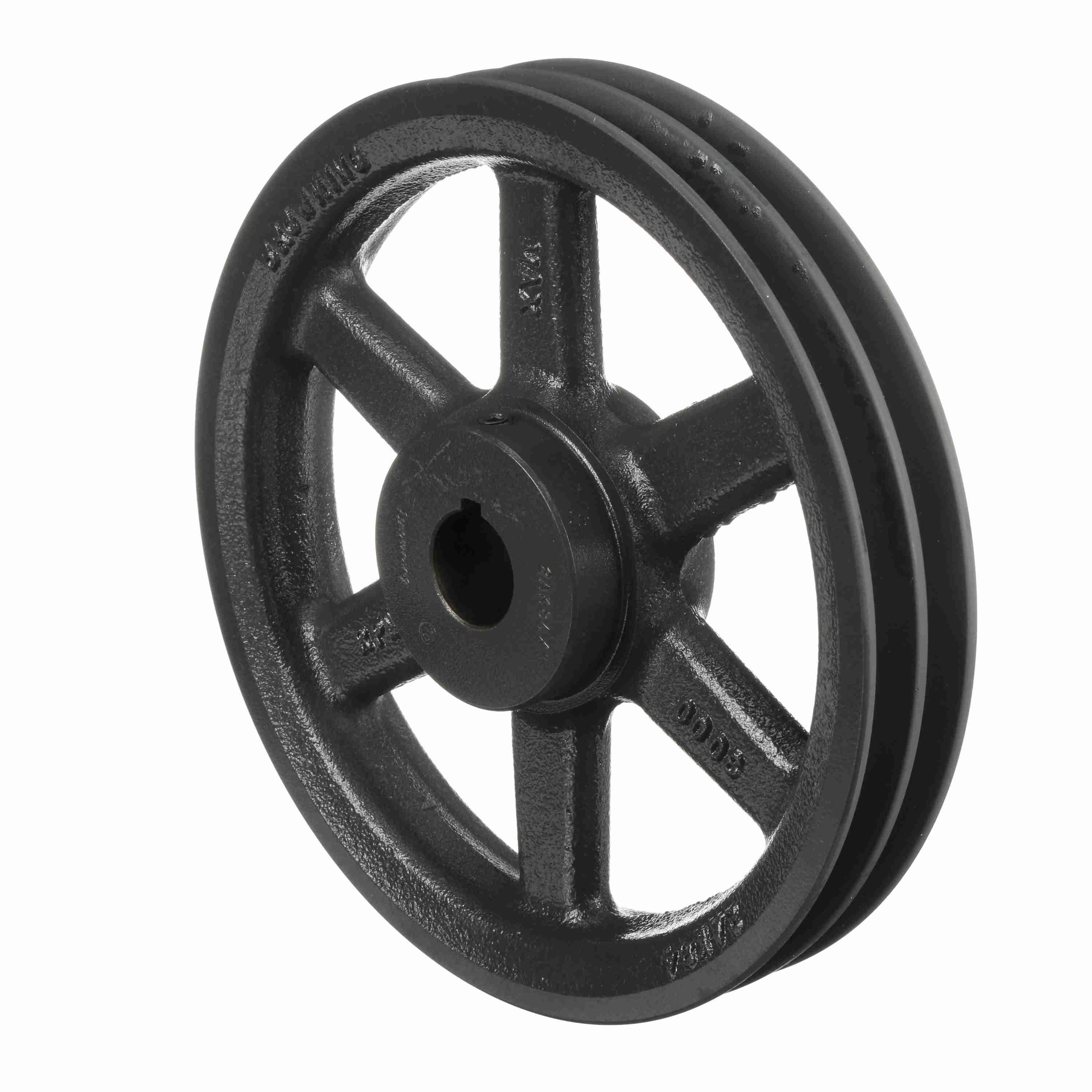

BROWNING 1032689 2AK84X1 V-Belt Sheave, Finish Bore, 2 Groove, Cast Iron, 8-1/4 in OD, 1 in Bore Dia, 8.2 in A/7.66 in 3L Pitch Dia
Item: AZ9UQFModel: 1032689Cross Ref: 2AK84X1
7 In Stock
Ships within 2 days via
€552.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3L, 4L, A Series |
| Bore Dia. | 1" |
| Bushing Type | No Bushing |
| Face Width | 1 3/8" |
| Hub Projection | 11/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 8" |
| Min. Pitch Dia. | 7.66" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 8 1/4" |
| Overall Length | 1 23/32" |
| Pitch Dia. | 8 1/5" |
| Pitch Dia. 3l | 7.66" |
| Series | AK Series |
| Suitable For Use With | A And 3L Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type 3 |
Shipping Info:
| Ship weight (kg) | 3.35 |
| Ship height (cm) | 20.96 |
| Ship length (cm) | 4.37 |
| Ship width (cm) | 20.96 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Type | Pitch Dia. | Max. Pitch Dia. | Min. Pitch Dia. | Bore Type | Pitch Dia. 3l | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3195377 | 1 3/8" | Type 2 | 4.7" | 4 1/2" | 4 4/25" | Finished | 4 4/25" | 15/32" | €368.18 | |
 |
3195435 | 1 3/8" | Type 3 | 5 2/5" | - | - | Finished | 4.86" | 15/32" | €378.61 | |
 |
3195500 | 1 3/8" | Type 3 | 6 1/5" | 6" | 5.66" | Finished | 5.66" | 11/32" | €308.21 | |
 |
3195567 | 1 3/8" | Type 1 | 11 1/5" | 11" | 10.66" | Finished | 10.66" | 11/32" | €778.68 | |
 |
1042845 | 3/8" to 1 1/2" | Type 3 | 6 1/5" | 6" | 5.66" | Split Taper | 5.66" | 1/32" | €180.82 | |
 |
1042944 | 3/8" to 1 1/2" | Type 3 | 18 1/5" | - | - | Split Taper | 17.66" | 1/32" | €571.03 | |
 |
3195393 | 1 3/8" | Type 2 | 4.9" | 4.7" | 4 9/25" | Finished | 4 9/25" | 15/32" | €490.97 |
