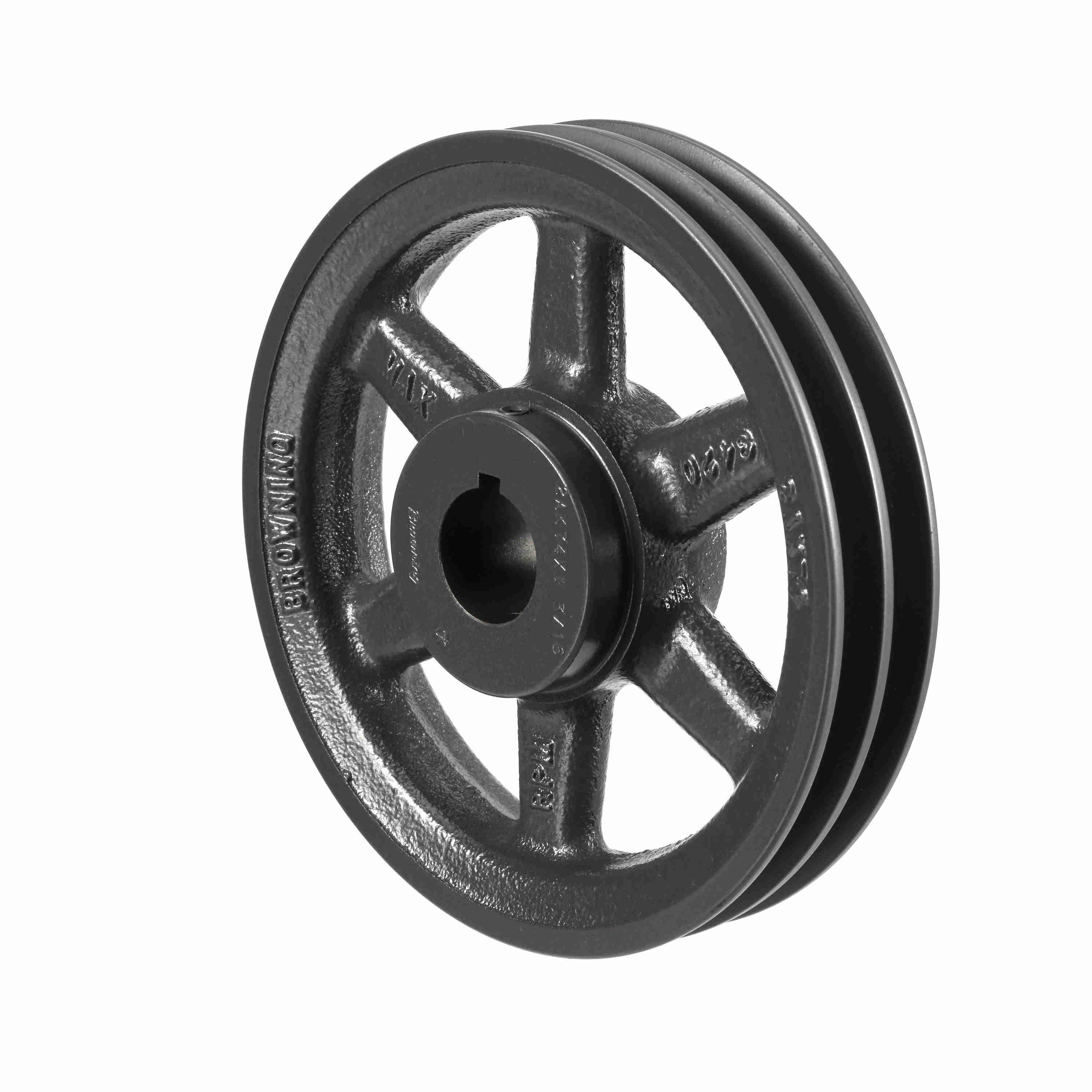

BROWNING 1032648 2AK74X 1 3/16 V-Belt Sheave, Finish Bore, 2 Groove, Cast Iron, 7-1/4 in OD, 1-3/16 in Bore Dia, 7.2 in A/6.66 in 3L Pitch Dia
Item: BA2FJZModel: 1032648Cross Ref: 2AK74X 1 3/16
7 In Stock
Ships within 2 days via
€504.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3L, 4L, A Series |
| Bore Dia. | 1 3/16" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 3/8" |
| Hub Projection | 11/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7" |
| Min. Pitch Dia. | 6.66" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 7 1/4" |
| Overall Length | 1 23/32" |
| Pitch Dia. (3l) | 6.66" |
| Pitch Dia. (a) | 7 1/5" |
| Series | AK Series |
| Suitable For Use With | A And 3L Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type 3 |
Shipping Info:
| Ship weight (kg) | 2.31 |
| Ship height (cm) | 18.42 |
| Ship length (cm) | 4.37 |
| Ship width (cm) | 18.42 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Type | Outside Dia. | Bore Dia. | Overall Length | Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
3195377 | Finished | 4 3/4" | 1 3/8" | 1 27/32" | Type 2 | Cast Iron | 1 3/8" | €368.18 | |
 |
3195435 | Finished | 5.45" | 1 3/8" | 1 27/32" | Type 3 | Cast Iron | 1 3/8" | €378.61 | |
 |
3195500 | Finished | 6 1/4" | 1 3/8" | 1 23/32" | Type 3 | Cast Iron | 1 3/8" | €308.21 | |
 |
3195567 | Finished | 11 1/4" | 1 3/8" | 1 23/32" | Type 1 | Cast Iron | 1 3/8" | €778.68 | |
 |
1042845 | Split Taper | 6 1/4" | 3/8" to 1 1/2" | 1 13/32" | Type 3 | Cast Iron | 1 3/8" | €180.82 | |
 |
1042944 | Split Taper | 18 1/4" | 3/8" to 1 1/2" | 1 13/32" | Type 3 | Cast Iron | 1 3/8" | €571.03 | |
 |
3195393 | Finished | 4.95" | 1 3/8" | 1 27/32" | Type 2 | Cast Iron | 1 3/8" | €490.97 |
