FABORY Shoulder Screws

Filter

-

Knurled Hex Socket Shoulder Screws

U07111.025.0100

A

U07111.025.0125

B

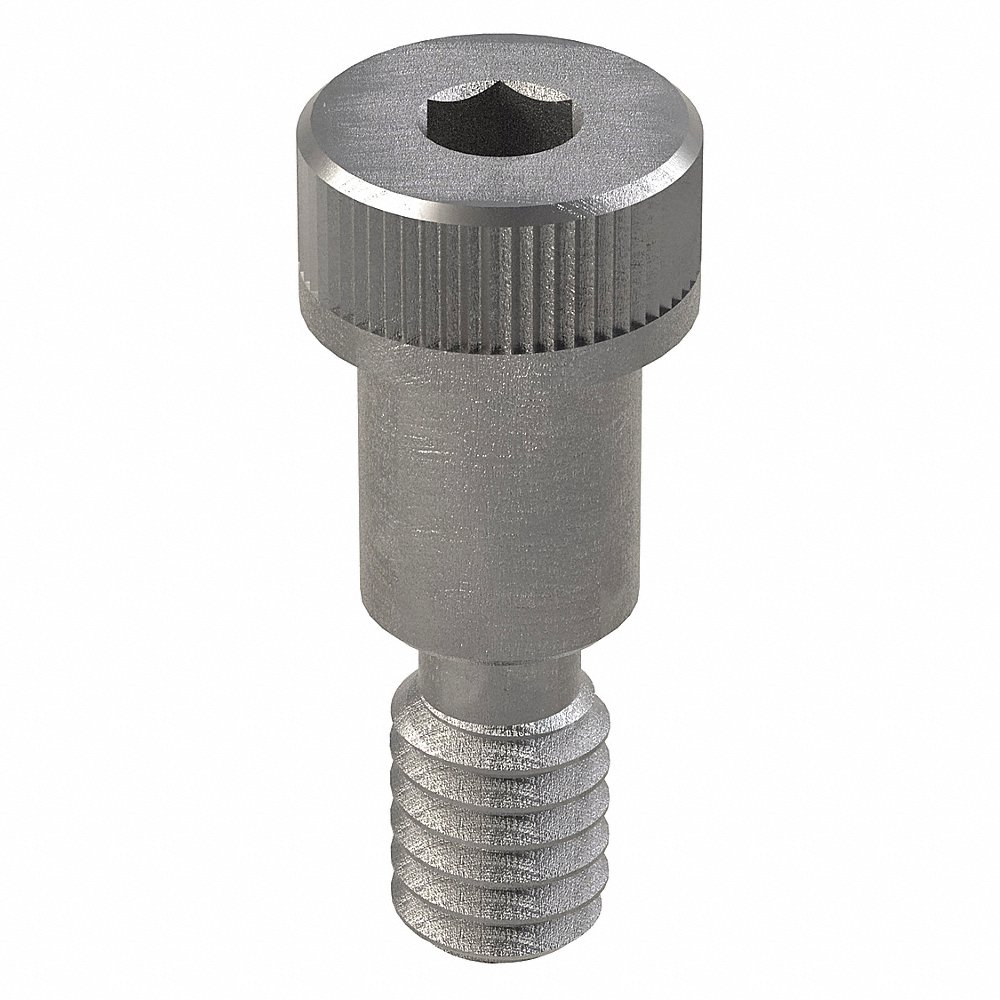

U07111.031.0037

C

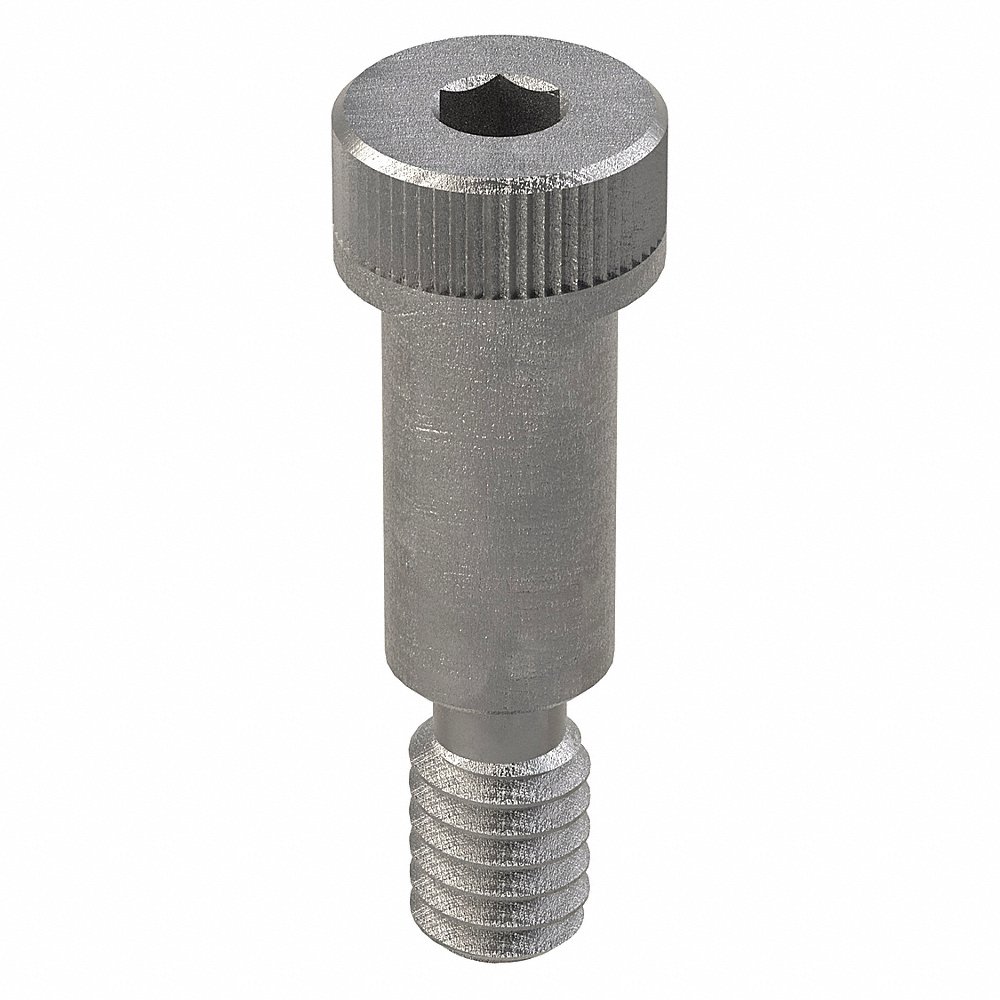

U07111.031.0062

D

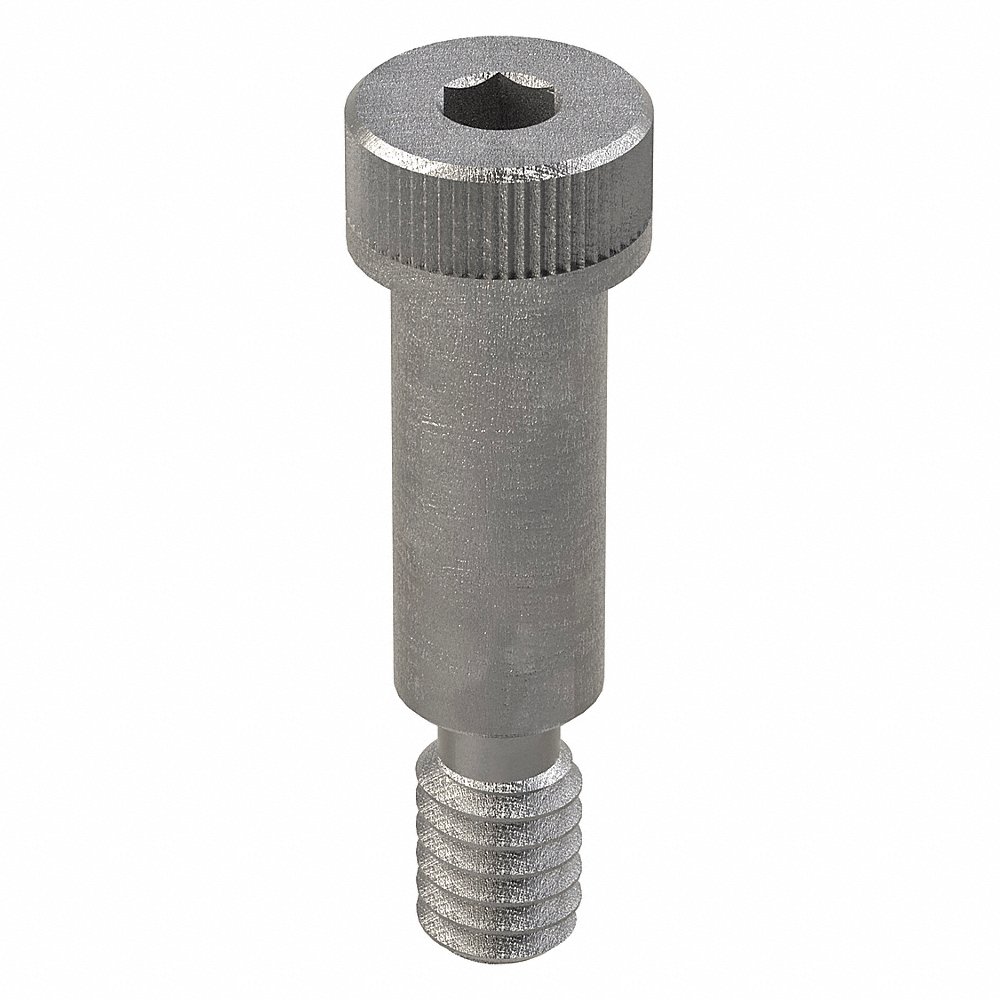

U07111.031.0075

E

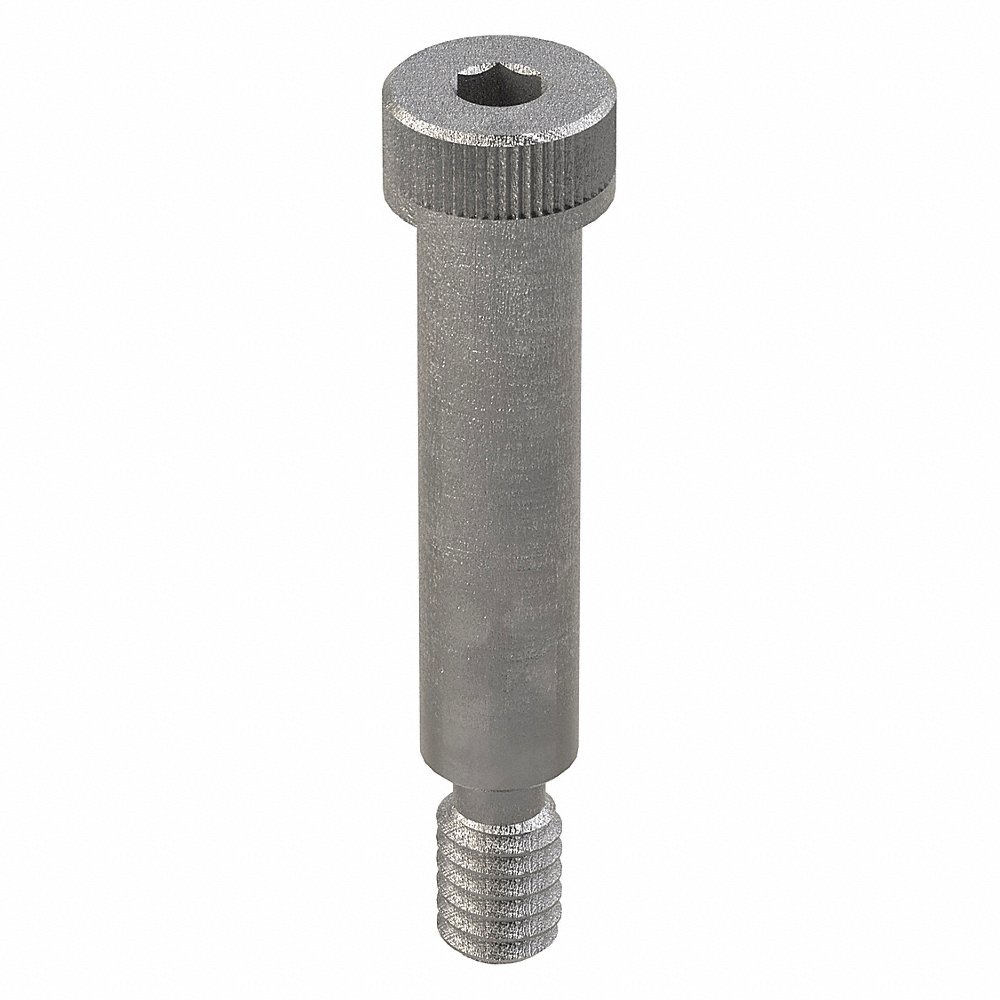

U07111.031.0125

F

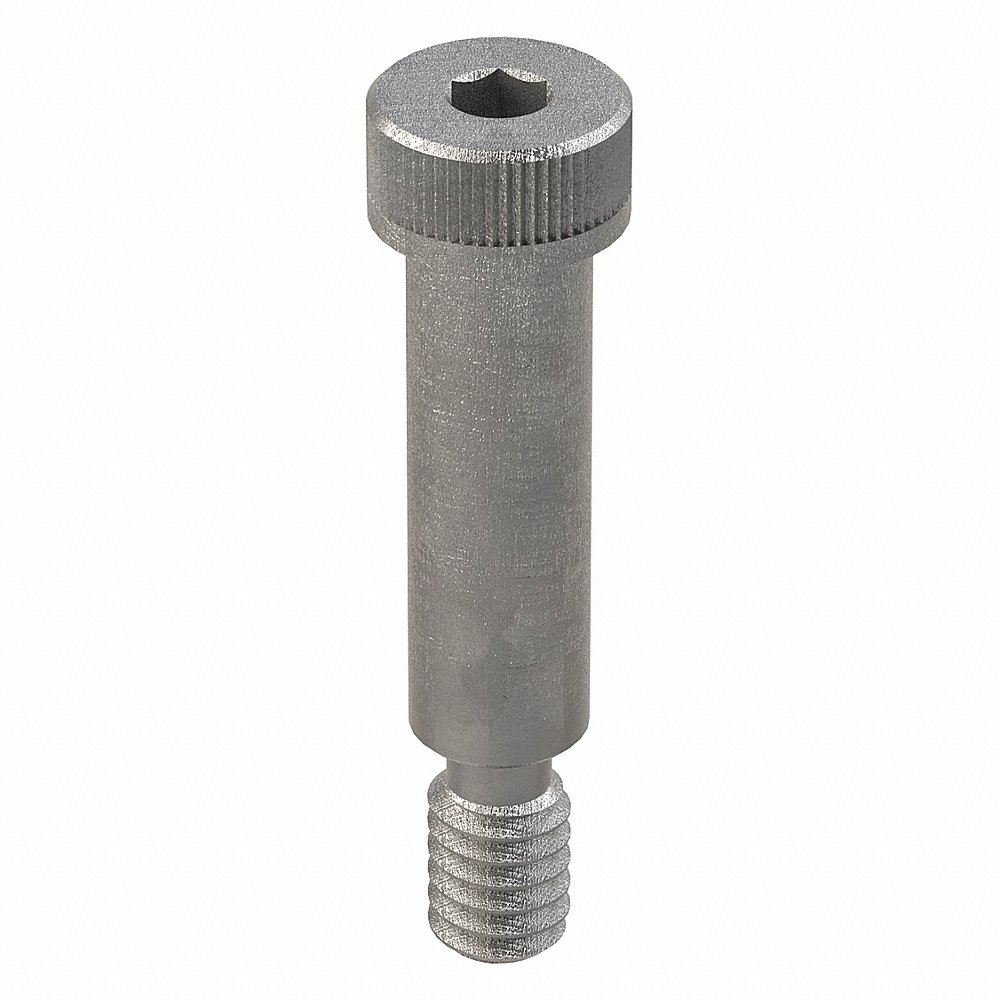

U07111.031.0100

G

Style	Model	Thread Size	Shoulder Length	Shoulder Dia.	Shoulder Length Tolerance	Head Dia.	Head Height	Dimensional Standards	Drive Size	Price	Pkg. Qty.
A	U07111.025.0100	#10-24	1"	1/4"	-0.005" to +0.005"	3/8"	3/16"	ASME B18.3	1/8"	€10.27	10
B	U07111.025.0125	#10-24	1 1/4"	1/4"	-0.005" to +0.005"	3/8"	3/16"	ASME B18.3	1/8"	€11.87	10
C	U07111.031.0037	1/4"-20	3/8"	5/16"	-0.005" to +0.005"	7/16"	7/32"	ASME B18.3	5/32"	€11.15	10
D	U07111.031.0062	1/4"-20	5/8"	5/16"	-0.005" to +0.005"	7/16"	7/32"	ASME B18.3	5/32"	€10.68	10
E	U07111.031.0075	1/4"-20	3/4"	5/16"	-0.005" to +0.005"	7/16"	7/32"	ASME B18.3	5/32"	€14.64	10
F	U07111.031.0125	1/4"-20	1 1/4"	5/16"	-0.005" to +0.005"	7/16"	7/32"	-	5/32"	€28.45	10
G	U07111.031.0100	1/4"-20	1"	5/16"	-0.005" to +0.005"	7/16"	7/32"	ASME B18.3	5/32"	€12.83	10

FABORY -

Standard Hex Socket Shoulder Screws

FABORY M07111.060.0025

A

FABORY M07111.060.0035

B

Style	Model	Thread Size	Shoulder Length	Shoulder Dia.	Head Dia.	Head Height	Drive Size	Finish	Head Type	Price	Pkg. Qty.
A	M07111.060.0025	M5 x 0.8	25 mm	6 mm	10 mm	4.5 mm	3 mm	Plain	Standard	€18.74	5
A	M07111.060.0030	M5 x 0.8	30 mm	6 mm	10 mm	4.5 mm	3 mm	Plain	Standard	€18.91	5
B	M07111.060.0035	M5 x 0.8	35 mm	6 mm	10 mm	4.5 mm	3 mm	Plain	Standard	€22.31	5
A	M07111.060.0040	M5 x 0.8	40 mm	6 mm	10 mm	4.5 mm	3 mm	Plain	Standard	€22.63	5
B	M07111.060.0045	M5 x 0.8	45 mm	6 mm	10 mm	4.5 mm	3 mm	Plain	Standard	€28.62	5
A	M07111.060.0008	M5 x 0.8	8 mm	6 mm	10 mm	4.5 mm	3 mm	Plain	Standard	€15.16	5
A	M07111.080.0010	M6 x 1	10 mm	8 mm	13 mm	5.5 mm	4 mm	Plain	Standard	€15.74	5
B	M07111.080.0070	M6 x 1	70 mm	8 mm	13 mm	5.5 mm	4 mm	Plain	Standard	€36.08	5
B	M07111.080.0060	M6 x 1	60 mm	8 mm	13 mm	5.5 mm	4 mm	Plain	Standard	€29.83	5
B	M07111.080.0050	M6 x 1	50 mm	8 mm	13 mm	5.5 mm	4 mm	Plain	Standard	€28.27	5
B	M07111.080.0045	M6 x 1	45 mm	8 mm	13 mm	5.5 mm	4 mm	Plain	Standard	€20.30	5
B	M07111.080.0035	M6 x 1	35 mm	8 mm	13 mm	5.5 mm	4 mm	Plain	Standard	€29.43	5
B	M07111.100.0070	M8 x 1.25	70 mm	10 mm	16 mm	7 mm	5 mm	Plain	Standard	€54.89	5
B	M07111.100.0055	M8 x 1.25	55 mm	10 mm	16 mm	7 mm	5 mm	Plain	Standard	€44.94	5
B	M07111.100.0090	M8 x 1.25	90 mm	10 mm	16 mm	7 mm	5 mm	Plain	Standard	€41.35	5
B	M07111.100.0012	M8 x 1.25	12 mm	10 mm	16 mm	7 mm	5 mm	Plain	Standard	€24.66	5
B	M07111.100.0045	M8 x 1.25	45 mm	10 mm	16 mm	7 mm	5 mm	Plain	Standard	€40.29	5
B	M07111.120.0080	M10 x 1.5	80 mm	12 mm	18 mm	9 mm	6 mm	Plain	Standard	€78.62	5
B	M07111.120.0055	M10 x 1.5	55 mm	12 mm	18 mm	9 mm	6 mm	Plain	Standard	€69.23	5
B	M07111.120.0045	M10 x 1.5	45 mm	12 mm	18 mm	9 mm	6 mm	Plain	Standard	€56.34	5
B	M07111.120.0035	M10 x 1.5	35 mm	12 mm	18 mm	9 mm	6 mm	Plain	Standard	€50.96	5
B	M07111.120.0012	M10 x 1.5	12 mm	12 mm	18 mm	9 mm	6 mm	Plain	Standard	€43.97	5
A	M07111.120.0100	M10 x 1.5	100 mm	12 mm	18 mm	9 mm	6 mm	Plain	Standard	€61.69	5
B	M07111.160.0025	M12 x 1.75	25 mm	16 mm	24 mm	11 mm	8 mm	Plain	Standard	€84.12	5
B	M07111.160.0040	M12 x 1.75	40 mm	16 mm	24 mm	11 mm	8 mm	Plain	Standard	€75.97	5
