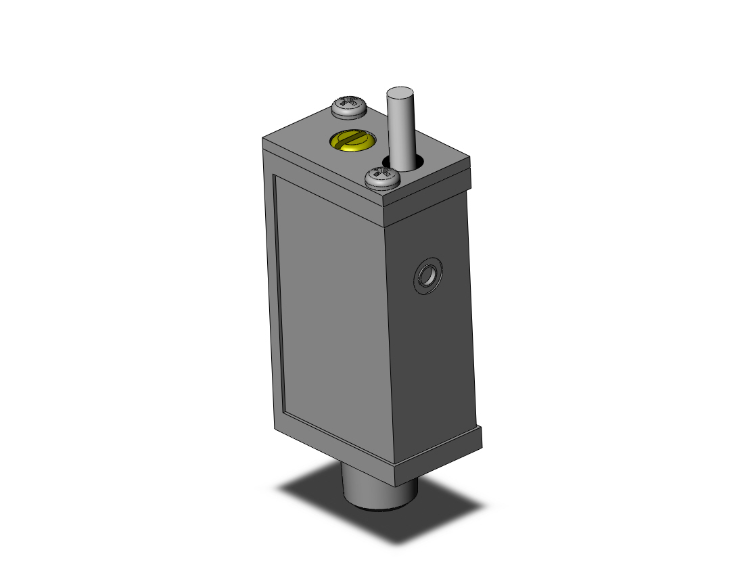

SMC VALVES Is1000 Series Pressure Switch

Filter

Style	Model	Pressure Setting	Hysteresis	Lead Wire	Type	Pressure Resistance	Max. Load Amps	Operating Temp.	Switch Action	Price
A	IS1000-N01S-X215	-	-	-	-	-	-	-	-	€103.00
B	IS10-N01S-6LP	-	-	-	-	-	-	-	-	€104.01
C	IS10-N01S-6PZ	-	-	-	-	-	-	-	-	€117.04
D	IS10-N01S	-	-	-	-	-	-	-	-	€65.27
E	IS10-N01S-6	-	-	-	-	-	-	-	-	€76.03
F	IS10-01S-6LP	-	-	-	-	-	-	-	-	€86.92
G	IS10-N01-P	-	-	-	-	-	20 mA	-	Reed	€77.71
H	IS10-N01S-LP	-	-	-	-	-	20 mA	-	Reed	€91.14
I	IS10-N01-6	-	-	-	-	-	-	-	-	€75.71
J	IS10-N01	-	-	-	-	-	-	-	-	€77.71
K	IS10-N01-6LP	-	-	-	-	-	20 mA	-	Reed	€97.14
L	IS10-N01S-P	-	-	-	-	-	-	-	-	€65.27
M	IS10-N01S-L	-	-	-	-	-	-	-	-	€91.14
N	IS10-01S	0.1 MPa to 0.4 MPa	0.5m	3m	Pressure Switch	1 MPa	-	-5°C to +60°C	-	€65.27
O	IS10-01S-L	0.1 MPa to 0.4 MPa	3m	0.5m	Pressure Switch	1 MPa	20 mA	-5°C to +60°C	Reed	€91.14
P	IS10-01	0.1 MPa to 0.6 MPa	0.5m	3m	Pressure Switch	1 MPa	-	-5°C to +60°C	-	€77.71
Q	IS10-01S-6	0.1 MPa to 0.6 MPa	0.5m	3m	Pressure Switch	1 MPa	-	-5°C to +60°C	-	€76.03
R	IS10-01-6L	0.1 MPa to 0.6 MPa	3m	3m	Pressure Switch	1 MPa	20 mA	-5°C to +60°C	Reed	€97.14
S	IS10-01S-6L	0.1 MPa to 0.6 MPa	3m	5m	Pressure Switch	1 MPa	20 mA	-5°C to +60°C	Reed	€104.01
