TELEMECANIQUE SENSORS Limit Switch Body And Contacts

IEC-certified limit switches featuring a modular design to easily access the interior and positive opening on all snap- and slow-break contacts for enhanced safety. Can operate at -77 to 158 deg F and are available in 4-pin M12, plug-in, screw & pre-wired cable connector variants

Filter

TELEMECANIQUE SENSORS -

XE2S Standard Format Limit Switch Contact Blocks

Style	Model	Ac Contact Rating	Electrical Connection	Ip Rating	Display Qty	Contact Form	Indicating Light	Operating Temp.	Dc Contact Rating	Price
A	XE2SP2141	3A @ 240V	Screw Terminal	Not Rated	1	2NC	No Indicating Light Included	-	0.27A @ 250V	-	RFQ
B	XE2SP2151	10A @ 600V AC	Screw Terminal	Not Rated	-	-	-	-77°F to +158°F	-	€91.52

TELEMECANIQUE SENSORS -

9007C Limit Switch Plug-In Units

Style	Model	Overall Height	Mounting Hole Vertical Center To Center Distance	Body Style	Contact Form	Dc Contact Rating	Electrical Connection	Material	No. Of Mounting Holes	Price
A	9007CO52	2.26"	37 mm	Miniature	1NO/1NC	0.1A @ 600V, 0.55A @ 125V	Plug In	Zinc	2	€205.96
B	9007CO62	3.14"	60 mm	EN50041	2NO/2NC	0.11A @ 250V, 0.55A @ 125V	Plug In	Zinc	2	€284.34
C	9007CO54	3.14"	60 mm	EN50041	1NO/1NC	0.1A @ 600V, 0.55A @ 125V	Plug In	Zinc	2	€223.40

TELEMECANIQUE SENSORS -

XE2N Standard Format Limit Switch Contact Blocks

Style	Model	Ac Contact Rating	Electrical Connection	Ip Rating	Display Qty	Contact Form	Nema Rating	Indicating Light	Operating Temp.	Price
A	XE2NP2141	3A @ 240V	Screw Terminal	Not Rated	1	2NC	-	No Indicating Light Included	-	€105.03
B	XE2NP2151	10A @ 600V AC	Screw Terminal	Not Rated	-	-	NEMA 1, NEMA 12, NEMA 2, NEMA 3, NEMA 4	-	-77°F to +158°F	€70.70

TELEMECANIQUE SENSORS -

XESP Standard Format Limit Switch Contact Blocks

Style	Model	Contact Form	Compatible With Manufacturer Model Number	Electrical Connection	Display Qty	Ac Contact Rating	Ip Rating	Indicating Light	Contact Action	Price
A	XESP2021	DPDT	ZCKJ2	Screw Terminal	1	10A @ 600V	Not Rated	No Indicating Light Included	Snap Action	€196.35
B	XESP2051	SPDT	XCRT115EX, XCRT215EX	Screw Terminal	1	10A @ 600V	Not Rated	No Indicating Light Included	Snap Action	€60.35

TELEMECANIQUE SENSORS -

ZCMD Limit Switch Bodies

Style	Model	Body Configuration	Ac Contact Rating	Ip Rating	Contact Form	Nema Enclosure Rating	Compatible With Manufacturer Model Number	Positive Opening	Contacts Insulation Form	Price
A	ZCMD21C12	-	-	-	-	-	-	With	Zb	€149.36
B	ZCMD21M12	Non Plug In	1.5A @ 240V	IP66, IP67	SPDT	NEMA 4X, NEMA 6P, NEMA 12, NEMA 13	ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1	Without	Za	€141.41
C	ZCMD21L1	Non Plug In	6A @ 300V	IP66, IP67	1NO/1NC	NEMA 4X, NEMA 6P, NEMA 12, NEMA 13	ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1	-	-	€97.77
D	ZCMD21L2	Non Plug In	6A @ 300V	IP66, IP67	1NO/1NC	NEMA 4X, NEMA 6P, NEMA 12, NEMA 13	ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1	With	Zb	€105.90
E	ZCMD21L5	Non Plug In	6A @ 300V	IP66, IP67	1NO/1NC	NEMA 4X, NEMA 6P, NEMA 12, NEMA 13	ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1	With	Zb	€141.41
F	ZCMD41L1	Non Plug In	5A @ 240V	IP66, IP67, IP68	2NO/2NC	Nema 1, Nema 2, Nema 4, Nema 12, Nema 13	ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1	-	-	-	RFQ
G	ZCMD21	Plug In	1.5A @ 240V	IP66, IP67	1NO/1NC	NEMA 4X, NEMA 6P, NEMA 12, NEMA 13	ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1, ZCEH0, ZCEH2	-	-	€91.88
B	ZCMD25	Plug In	1.5A @ 240V	IP66, IP67	1NO/1NC	NEMA 4X, NEMA 6P, NEMA 12, NEMA 13	ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1, ZCEH0, ZCEH2	With	Zb	€87.05

TELEMECANIQUE SENSORS -

ZCP Limit Switches

Style	Model	Electrical Connection	Ac Contact Rating	Dc Contact Rating	Compatible With Manufacturer Model Number	Material	No. Of Mounting Holes	Mounting Hole Dia.	Mounting Hole Horizontal Center To Center Distance	Price
A	ZCP21M12	4-Pin M12 Male Connector	3A @ 240V	0.27A @ 250V	ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2	Plastic	2	0.17"	21 mm	€120.31
B	ZCP21	Screw Clamp Terminals	1.5A @ 240V	0.1A @ 250V	ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2	Plastic	2	0.17"	21 mm	€54.71
B	ZCP25	Screw Clamp Terminals	1.5A @ 240V	0.1A @ 250V	ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2	Plastic	2	0.17"	21 mm	€64.61

TELEMECANIQUE SENSORS -

ZCT Limit Switch Bodies

Style	Model	Ip Rating	Contact Form	Compatible With Manufacturer Model Number	Electrical Connection	Material	No. Of Mounting Holes	Mounting Hole Dia.	Mounting Hole Horizontal Center To Center Distance	Price
A	ZCT21N12	IP65	1NO/1NC	ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2	Screw Clamp Terminals	Plastic	4	0.17"	21 mm, 41 mm	€106.79
B	ZCT27G11	IP66, IP67	2NC	ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2	Screw Clamp Terminals	Plastic	4	0.17"	21 mm, 41 mm	€106.00

TELEMECANIQUE SENSORS -

ZC2J Limit Switch Bodies

Style	Model	Electrical Connection	Material	No. Of Mounting Holes	Mounting Hole Dia.	Mounting Hole Horizontal Center To Center Distance	Display Qty	Mounting Hole Vertical Center To Center Distance	Body Configuration	Price
A	ZC2JE05H2	-	-	-	-	-	1	-	-	-	RFQ
B	ZC2JC1H5	Screw Clamp Terminals	Metal	2	0.22"	30 mm	1	60 mm	Non Plug In	€366.96

TELEMECANIQUE SENSORS -

ZCD Limit Switch Bodies

Style	Model	Electrical Connection	Ac Contact Rating	Dc Contact Rating	Compatible With Manufacturer Model Number	Material	No. Of Mounting Holes	Mounting Hole Dia.	Mounting Hole Horizontal Center To Center Distance	Price
A	ZCD21M12	5-Pin M12 Male Connector	3A @ 50V	0.27A @ 50V	ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2	Metal	2	0.17"	21 mm	€166.42
B	ZCD21	Screw Clamp Terminals	1.5A @ 240V	0.1A @ 250V	ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2	Metal	2	0.17"	21 mm	€70.70
B	ZCD25	Screw Clamp Terminals	1.5A @ 240V	0.1A @ 250V	ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2	Metal	2	0.17"	21 mm	€85.17

TELEMECANIQUE SENSORS -

ZCKJ Limit Switch Bodies

Style	Model	Electrical Connection	No. Of Mounting Holes	Overall Height	Ac Contact Rating	Contact Form	Nema Enclosure Rating	Dc Contact Rating	Body Configuration	Price
A	ZCKJ1D	5-Pin M12 Male Connector	2	3.31"	3A @ 240V	1NO/1NC	NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 12	0.27A @ 250V	Non Plug In	€241.19
B	ZCKJ404H7	Screw Clamp Terminals	4	4.29"	10A @ 600V	DPDT	Nema 1, Nema 2, Nema 4, Nema 12, Nema 13	10A @ 600V	-	€300.57
C	ZCKJ2H7	Screw Clamp Terminals	2	4.02"	3A @ 240V	DPDT	NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 12	0.27A @ 250V	Non Plug In	€212.66
D	ZCKJ1	Screw Clamp Terminals	2	-	3A @ 240V	1NO/1NC	NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 12	0.27A @ 250V	Non Plug In	€133.39
C	ZCKJ1H7	Screw Clamp Terminals	2	3.31"	3A @ 240V	1NO/1NC	NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 12	0.27A @ 250V	Non Plug In	€139.09
E	ZCKJ4104H7	Screw Clamp Terminals	-	3.03"	3A @ 240V	DPDT	NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 12	0.27A @ 250V	Plug In	-	RFQ
F	ZCKJ11H7	Screw Clamp Terminals	2	-	3A @ 240V	SPDT	NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 12	0.27A @ 250V	Plug In	-	RFQ
G	ZCKJ8	Screw Clamp Terminals	2	-	3A @ 240V	2NO	NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 12	0.27A @ 250V	Non Plug In	-	RFQ
D	ZCKJD39H7	Screw Clamp Terminals	2	-	1.5A @ 240V	1NO/2NC	NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 12	0.1A @ 250V	Non Plug In	€192.05

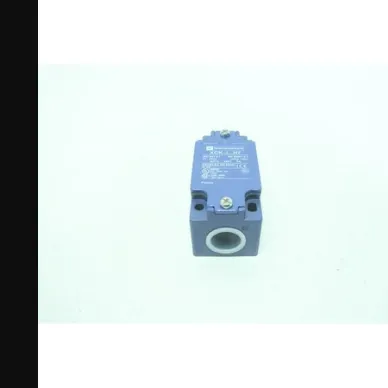

H	ZCKJ15H7	Screw Clamp Terminals	2	-	3A @ 240V	1NO/1NC	NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 12	0.27A @ 250V	Non Plug In	-	RFQ
G	ZCKJ1H29	Screw Clamp Terminals	2	-	3A @ 240V	1NO/1NC	NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 12	0.27A @ 250V	Non Plug In	€131.48
D	ZCKJ2	Screw Clamp Terminals	2	-	3A @ 240V	DPDT	NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 12	0.27A @ 250V	Non Plug In	€216.84
I	ZCKJ4H7	Screw Clamp Terminals	2	-	3A @ 240V	DPDT	NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 12	0.27A @ 250V	Non Plug In	€235.13

TELEMECANIQUE SENSORS -

ZCKL Limit Switch Bodies

Style	Model	Electrical Connection	Material	No. Of Mounting Holes	Mounting Hole Dia.	Mounting Hole Horizontal Center To Center Distance	Overall Height	Display Qty	Body Configuration	Price
A	ZCKL1H7	Screw Clamp Terminals	Metal	2	1/5"	41 mm	2.83"	1	Non Plug In	€221.42
B	ZCKL1	Screw Clamp Terminals	Metal	2	1/5"	41 mm	-	1	Non Plug In	€209.26
C	ZCKL5H7	Screw Clamp Terminals	Metal	2	1/5"	41 mm	-	1	Non Plug In	€237.16

TELEMECANIQUE SENSORS -

ZCKM Limit Switch Bodies

Style	Model	Electrical Connection	Material	No. Of Mounting Holes	Mounting Hole Dia.	Mounting Hole Horizontal Center To Center Distance	Overall Height	Display Qty	Overall Depth	Price
A	ZCKM1H29	-	-	-	-	-	-	1	-	€146.69
B	ZCKM1	Screw Clamp Terminals	Metal	2	1/5"	41 mm	2 13/25"	1	1.18"	€141.17
