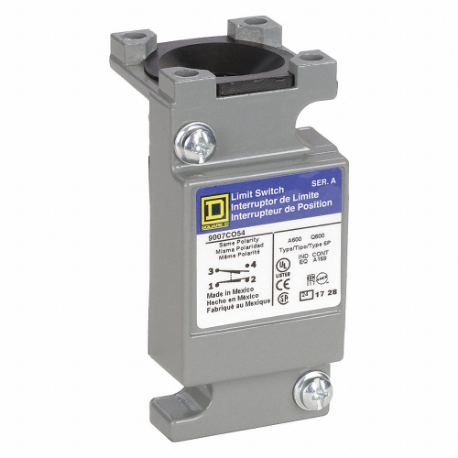

TELEMECANIQUE SENSORS 9007CO54 Compact Limit Switch Body
Item: CU4FAQModel: 9007CO54Cross Ref: 2EG11
7 In Stock
Ships within 2 days via
5.00% off
€212.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compact Limit Switch Body |
| Ac Contact Rating | 0.27A @ 250V, 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Body Configuration | Plug In |
| Body Style | EN50041 |
| Compatible With Series | 9007C Series |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 0.1A @ 600V, 0.55A @ 125V |
| Display Qty | 1 |
| Electrical Connection | Plug In |
| For Use With | Type 9007 C Standard Limit Switches |
| Indicating Light | No Indicating Light Included |
| Ip Rating | IP67 |
| Material | Zinc |
| Max. Operating Temp. | 185°F |
| Min. Operating Temp. | -20°F |
| Mounting Hole Dia. | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 30 mm |
| Mounting Hole Vertical Center To Center Distance | 60 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 4, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4, NEMA 6, NEMA 6P |
| No. Of Mounting Holes | 2 |
| Operating Temp. | -20°F to +185°F |
| Overall Depth | 1.79" |
| Overall Height | 3.14" |
| Overall Width | 1.55" |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 5.74 |
| Ship length (cm) | 4.55 |
| Ship width (cm) | 3.94 |
| Country of Origin | MX |
Product Variants
| Product | Model | Overall Height | Mounting Hole Vertical Center To Center Distance | Body Style | Contact Form | Dc Contact Rating | Electrical Connection | Material | No. Of Mounting Holes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9007CO62 | 3.14" | 60 mm | EN50041 | 2NO/2NC | 0.11A @ 250V, 0.55A @ 125V | Plug In | Zinc | 2 | €284.34 | |
 |
9007CO52 | 2.26" | 37 mm | Miniature | 1NO/1NC | 0.1A @ 600V, 0.55A @ 125V | Plug In | Zinc | 2 | €205.96 |
