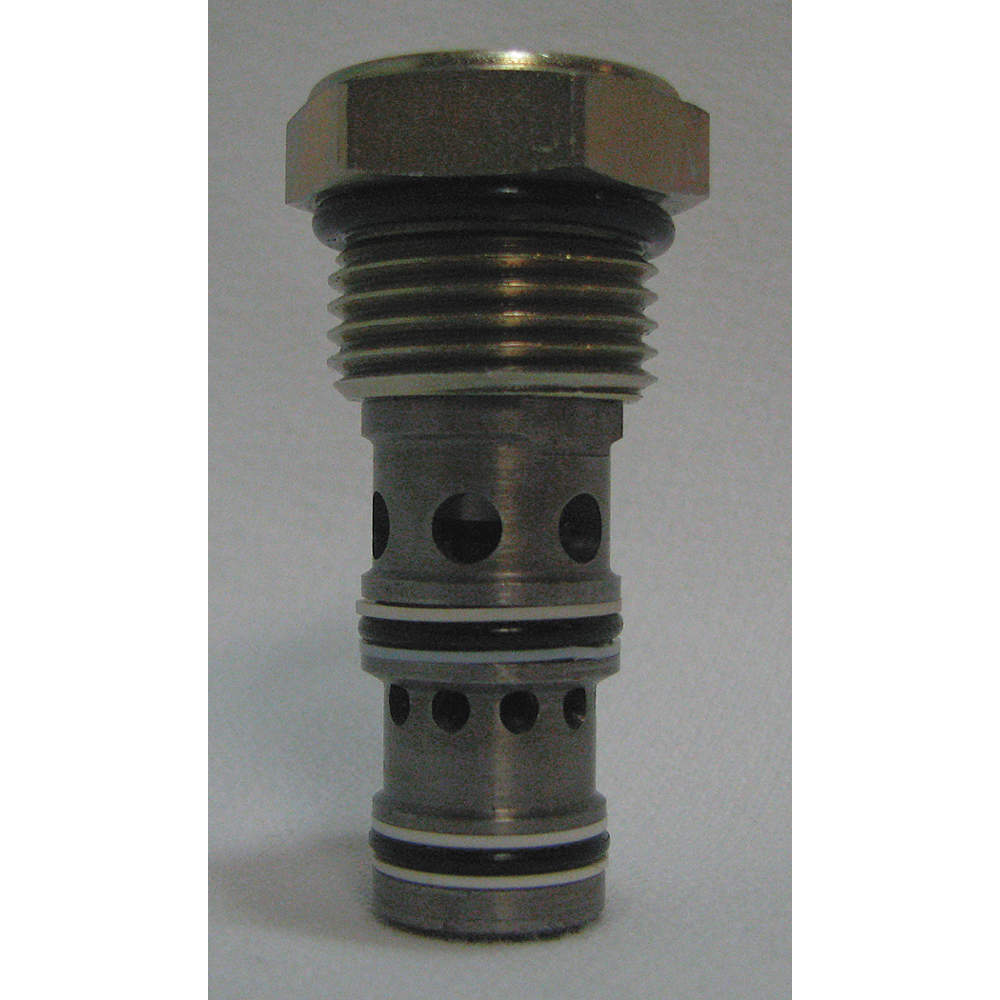

PARKER CSH101B Cartridge Ball Type Shuttle Valve, 10 gpm, Steel
Item: AD7DBAModel: CSH101BCross Ref: 4DML3
7 In Stock
Ships within 2 days via
10.00% off
€81.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shuttle Valve |
| Actuation Mechanism | Pressure |
| Adjustment Method | Not Applicable |
| Application | Used In Load Sense Circuits As Well As Brake Circuits To Divert The Highest Pressure From Two Inlet Signals To A Single Outlet Signal |
| Body Finish | Zinc Plated |
| Body Material | Steel |
| Cartridge Material | Steel |
| Cartridge Valve Item | Cartridge Valve |
| Control Direction | Two-Way |
| Filter Media | Not Applicable |
| Filter Rating | Not Applicable |
| Flow Rate | 10 GPM |
| Fluid Service | Mineral Oil, Synthetic Oil |
| For Media | Mineral Oil, Synthetic Oil |
| Includes Filter | Filter Not Included |
| Includes Seals | Seals Included |
| Installation Torque | 48 Lbs-ft |
| Leakage | 0.5 cc/min. |
| Max. Flow | 10 GPM |
| Max. Flow Gpm | 10 |
| Max. Inlet Pressure | 5000 psi |
| Max. Pressure | 5000 psi |
| Maximum Fluid Viscosity | 2000 SUS |
| Maximum Operating Temperature | 250°F |
| Maximum Pressure Setting | 5000 psi |
| Minimum Operating Temperature | -30°F |
| Mounting | Block Mounted |
| Number Of Positions | 2 |
| Number Of Ways | 2 |
| Operating Temp. | -34°C to +121°C |
| Overall Height | 0.31" |
| Overall Length | 2.17" |
| Overall Width | 1" |
| Port Connection Gender | Not Applicable |
| Port Connection Size | Not Applicable |
| Port Connection Type | Not Applicable |
| Port-to-port Length | Not Applicable |
| Rated Flow Rate | 10 GPM |
| Return Mechanism | Pressure |
| Seal Material | Nitrile |
| Valve Action | Not Applicable |
| Valve Cavity Size | C10 3 |
| Valve Control | Directional Control |
| Valve Material | Steel |
| Valve Type | Cartridge Shuttle Valve |
| Way | 3 |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.51 |
| Ship width (cm) | 0.79 |
| HS code | 8481801050 |
| Country of Origin | MX |
Product Details:
- Valve Cavity (C10-3)
